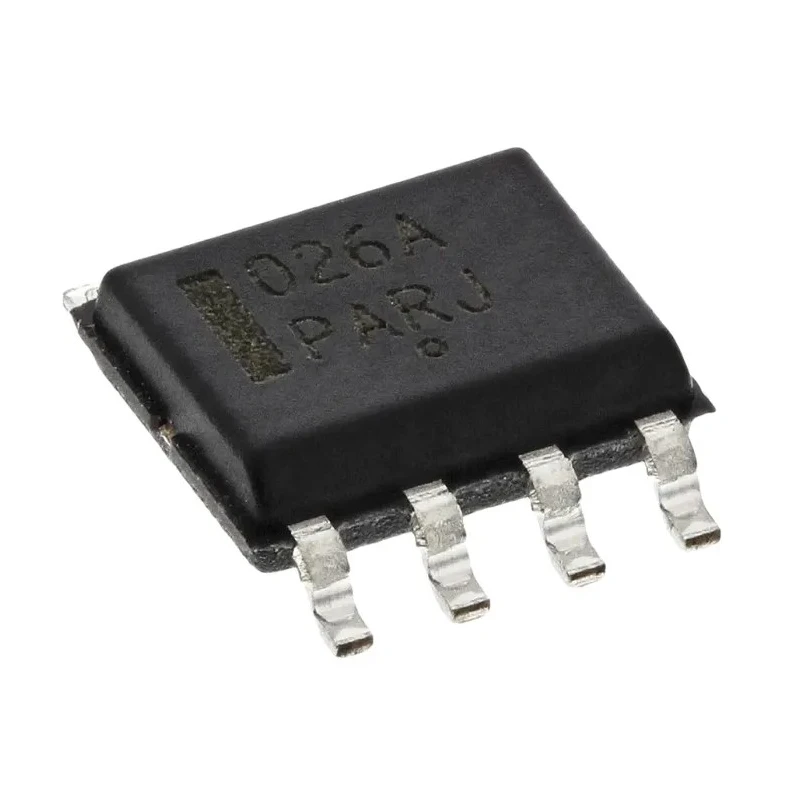

onsemi Dual Modulus Prescaler 1.1 GHz 8-Pin SOIC Surface Mount MC12026ADG

The onsemi MC12026ADG Dual Modulus Prescaler is a high-performance semiconductor component designed for efficient clock division in electronic circuits. It features an 8-pin Small Outline Integrated Circuit (SOIC) surface mount package that facilitates compact and reliable mounting on printed circuit boards.

Operating over a wide frequency range from 100 MHz minimum to 1.1 GHz maximum, this prescaler delivers a typical output voltage of 1.6 V and a low supply current of 4 mA, making it suitable for energy-efficient applications. The device functions reliably over supply voltages from 4.5 V to 5.5 V and within an industrial temperature range of -40°C to 85°C, supporting a variety of demanding operational environments including industrial, communication, and wireless systems.

With a length of 5 mm and height of 1.5 mm, its compact SOIC package enables dense PCB layouts. It complies with RoHS and Pb-Free standards, ensuring compliance with environmental regulations. The MC12026ADG falls under the MC12026A series and is widely used for clock division and signal conditioning in communication modules and other semiconductor electronic components.

This dual modulus prescaler handles frequencies up to 1.1 GHz. Surface mount 8-pin SOIC package ensures easy PCB integration. Operating temperature range of -40°C to 85°C supports industrial applications. Low supply current of 4 mA enhances power efficiency.

RoHS and Pb-Free compliance for environmental safety. Typical output voltage of 1.6 V provides stable signal levels. Supports supply voltages between 4.5 V and 5.5 V for flexible power design. Compact dimensions: 5 mm length and 1.5 mm height for space-saving layouts.

This prescaler is ideal for use in communication and wireless modules requiring precise frequency division and signal integrity. It is a critical component for electronic and semiconductor manufacturing, serving diverse industrial sectors including telecommunications, networking, and embedded system design.
