| Country of Origin | India |
|---|---|
| Brand | Bourns |
| Height | 0.6mm |
| Length | 1.6mm |
| Model | CD0603-B0340R |
| Width | 0.9mm |
| Mount Type | Surface |
| Series | CD0603-B0xR |
| Maximum Operating Temperature | 125°C |
| Package Type | 0603 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 300mA |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 50μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 2A |
| Maximum Forward Voltage Vf | 500mV |

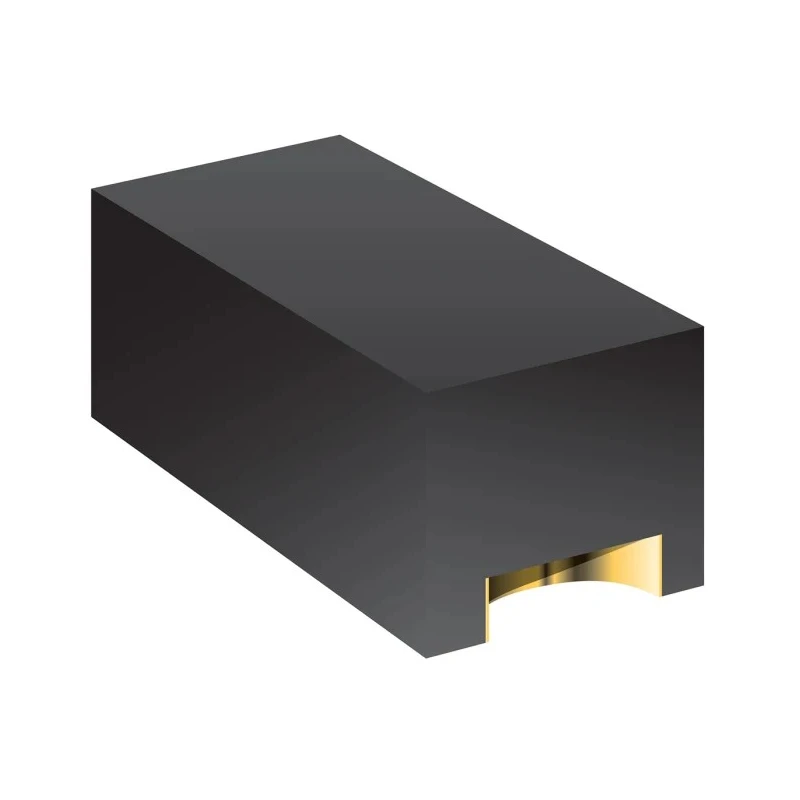

Bourns CD0603-B0340R is a high-performance surface mount switching diode supplied in a 0603 leadless chip package. It is engineered for applications requiring low forward voltage and fast switching speed in compact spaces.
The diode supports a maximum continuous forward current of 300 mA and a peak reverse repetitive voltage rating of 40 V. Operating temperature ranges from -40°C up to 125°C, enabling reliable function in automotive and industrial environments. It fulfills the stringent AEC-Q101 automotive qualification standard, making it suitable for automotive electronic circuits.
With its extremely small size of 1.6 mm length, 0.9 mm width, and 0.6 mm height, the CD0603-B0340R diode is perfect for densely populated PCBs in portable consumer electronics, computing devices, and advanced communication equipment. It ensures low forward voltage drop of 500 mV, thus improving energy efficiency in switching power supplies and DC/DC converters.
The diode exhibits a peak non-repetitive forward surge current rating of 2 A to tolerate transient overloads safely. Being halogen-free and leadless, it complies with modern environmental and RoHS requirements.
It is widely used in switch mode power supplies (SMPS), battery-powered devices, telecommunications systems, and rectification tasks. The product's compact footprint and automotive standard certification enable integration in automotive, industrial, and commercial electronics.
Choose the Bourns CD0603-B0340R for robust, compact, and environmentally compliant switching diode solutions in your electronic designs. Browse EnvMart's comprehensive semiconductor portfolio for more solutions.
