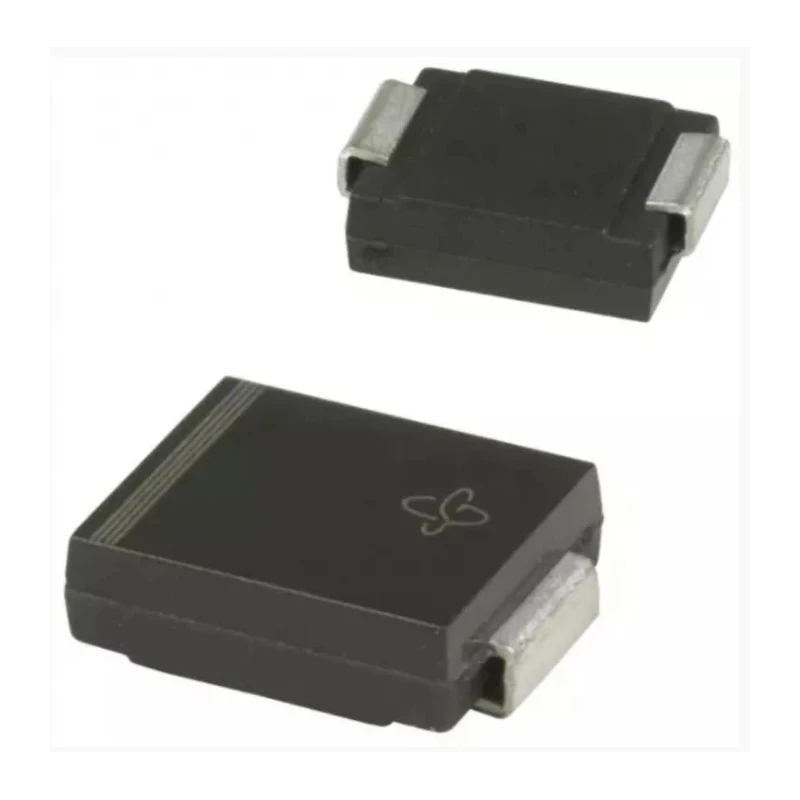

Vishay 1-Element Bi-Directional Transient Voltage Suppressor 600W, 2-Pin DO-214AA SMBJ15CA-E3/52

Vishay SMBJ15CA-E3/52 1-Element Bi-Directional Transient Voltage Suppressor is designed for reliable circuit protection against transient voltage surges. It features a 600 W peak pulse power rating suitable for industrial, automotive, and commercial electronics. The device is encased in a low profile surface mount DO-214AA (SMB) package with two pins, allowing easy integration into modern PCB assemblies.

Its bi-directional configuration ensures transient voltage clamping on both polarities, enhancing protection for sensitive components. Its minimum breakdown voltage is 16.7 V and the maximum reverse stand-off voltage is 15 V, providing precise voltage regulation during surge events. The clamping voltage of 24.4 V guarantees rapid conduction of surge currents, minimizing exposure to harmful voltage spikes.

The suppressor boasts a wide operating temperature range from -55°C to 150°C, making it ideal for use in demanding environments including industrial machinery, automotive electronics, and power supplies. With a peak pulse current capability of 24.6 A and electrostatic discharge immunity, the device safeguards circuits effectively against voltage transients and ESD events.

It complies with the Automotive Standard AEC-Q101, certifying its reliability and performance in automotive electronics applications. The compact SMB package has dimensions of 4.57 mm length, 3.94 mm width, and 2.24 mm height for efficient PCB space utilization.

This TVS diode finds extensive use in protecting power supply lines, signal lines, and sensitive electronic components from voltage spikes and surge events typically encountered in industrial, automotive, and consumer electronic devices.

This transient voltage suppressor provides a minimum breakdown voltage of 16.7 V for effective surge protection. The device is bi-directional, suitable for protecting circuits from both positive and negative transient events.

It has a maximum reverse stand-off voltage of 15 V and a clamping voltage of 24.4 V ensuring fast response to voltage spikes. Constructed for surface mounting in a low-profile DO-214AA (SMB) package measuring 4.57 mm in length, 3.94 mm in width, and 2.24 mm in height.

Capable of handling peak pulse power dissipation of 600 W and peak pulse current up to 24.6 A, suitable for demanding industrial and automotive applications. Operates within a temperature range of -55°C to 150°C to maintain performance in harsh environments.

Features includes robust electrostatic discharge (ESD) protection and meets Automotive Standard AEC-Q101 for reliability in automotive electronics.

Explore more in the TVS Diodes category for additional high-performance protection components in designs ranging from industrial control systems to automotive electronics at EnvMart.
