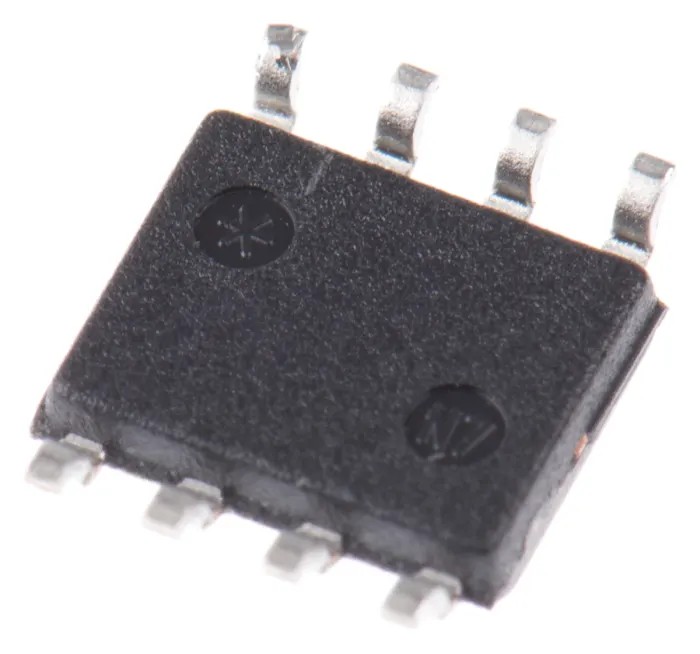

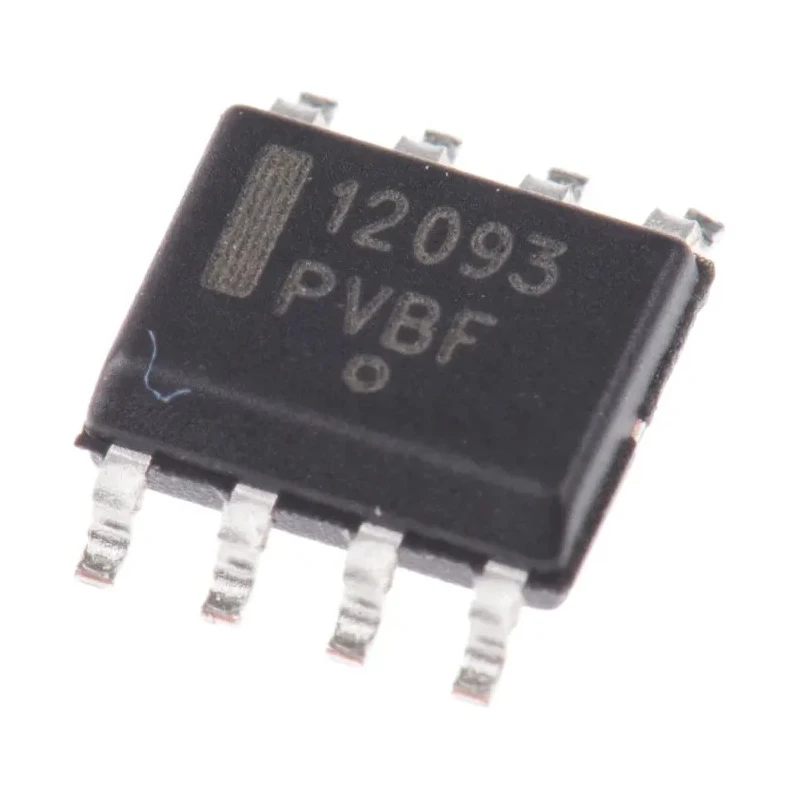

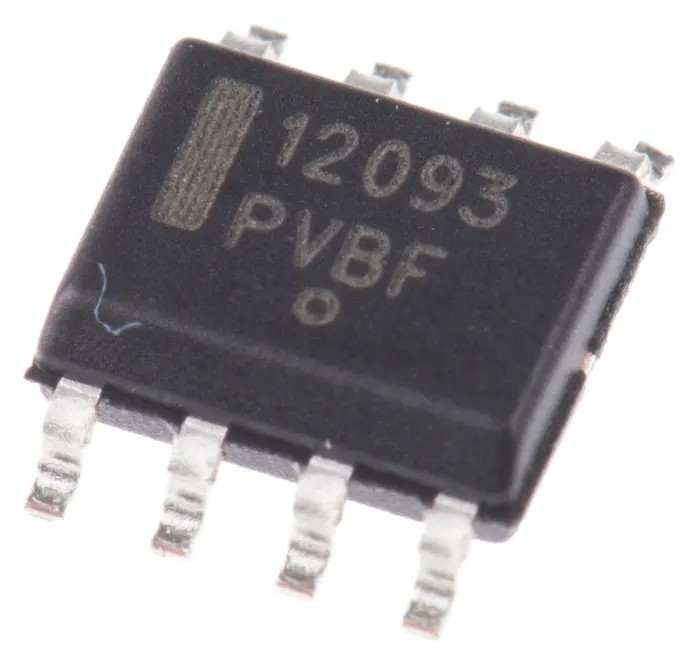

onsemi RF Prescaler 2/4/8 Division, 1.1 GHz Maximum Frequency, 8-Pin SOIC Surface Mount MC12093DG

The onsemi MC12093DG is a high-frequency RF Prescaler designed to divide input signals by 2, 4, or 8, making it ideal for use in wireless communication and frequency synthesis applications. This device operates efficiently at frequencies up to 1.1 GHz, providing reliable performance for demanding electronic circuits.

This RF prescaler utilizes an 8-pin SOIC surface mount package, enabling space-saving integration on printed circuit boards. Its compact dimensions, 5 mm in length and 1.5 mm in height, support dense designs without compromising signal integrity.

With a typical output voltage of 0.8 V and low supply current of 3 mA, the MC12093DG offers low power consumption, an important factor in portable and battery-powered applications. The device supports a supply voltage range from 2.7 V to 5.5 V, providing compatibility with various power sources.

Operating temperature ranges from -40°C to 85°C, allowing dependable use in industrial, communication, and consumer electronics environments. This prescaler is ideal for frequency division needs in wireless modules, test equipment, and signal processing systems.

Supports division factors of 2, 4, and 8. Frequency range from 100 MHz to 1.1 GHz. Low typical supply current of 3 mA. Compact 8-pin SOIC surface mount packaging. Wide operating voltage from 2.7 V to 5.5 V. Operational temperature range: -40°C to 85°C.

Compact dimensions: 5 mm length, 1.5 mm height. Designed for RF frequency synthesis and communication applications.

This product is appropriate for industrial, communication, and laboratory use where high-frequency signal division is required. The onsemi MC12093DG Prescaler offers an efficient, reliable solution for incorporating high-frequency division functionality in compact electronic assemblies. Explore the Electronics & Electricals category on EnvMart for complementary semiconductor components and RF devices tailored to diverse application needs.
