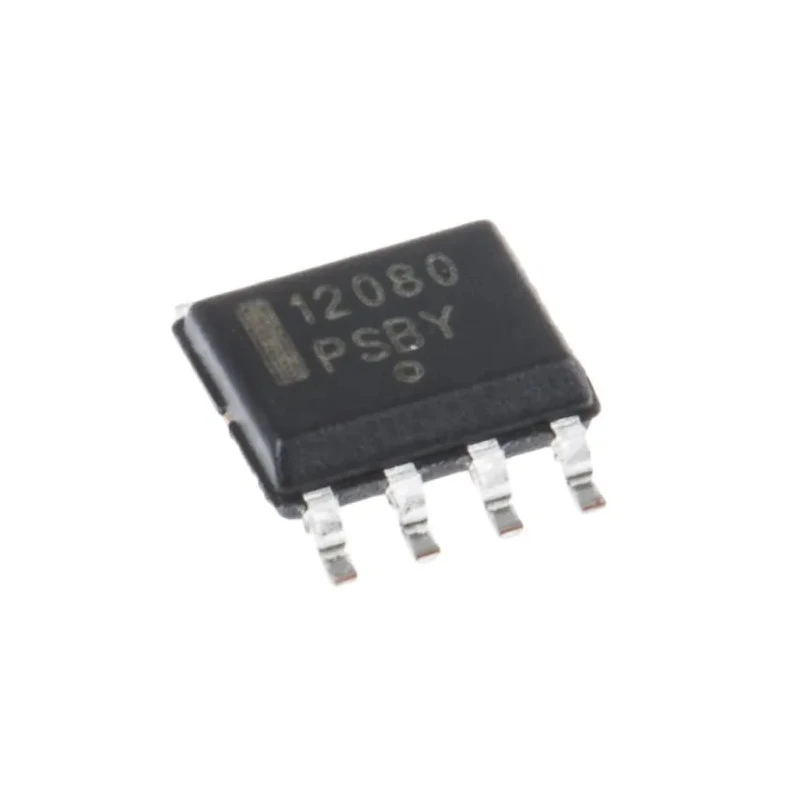

onsemi RF Prescaler 1.1 GHz, 8-Pin SOIC Surface Mount MC12080DG

onsemi MC12080DG RF Prescaler is a high-performance surface mount device designed in an 8-pin SOIC package. It supports RF frequency division with a frequency range spanning from 100 MHz minimum to a maximum of 1.1 GHz, making it ideal for communication and wireless module ICs applications.

This prescaler offers a typical output voltage of 1.2 V and a typical current consumption of 3.7 mA, operating reliably under a supply voltage range of 4.5 V to 5.5 V. Its capability to function within an ambient temperature range of -40°C to 85°C ensures device stability under various industrial, laboratory, and commercial conditions.

The compact 1.5 mm height and 5 mm length SOIC package facilitates efficient PCB design for modern electronics. While the product is not compliant with automotive standards, it serves well in electronic components and semiconductor systems for RF signal division and frequency synthesis.

Operates at maximum frequency of 1.1 GHz suitable for advanced RF applications. Surface mount SOIC package type simplifies circuit board assembly. Low power operation with typical supply current of 3.7 mA to reduce energy consumption.

Wide operating temperature range supporting harsh industrial environments. Compact dimensions aid in miniaturized electronic circuits. Pin count of 8 enables robust connectivity and signal routing. Designed for electronics, communication modules, and wireless systems integration.

This prescaler is recommended for use in electronic communication and wireless development projects, laboratory equipment, and manufacturing electronics processes requiring frequency division and signal calibration. It supports designers aiming to improve production efficiency with reliable surface mount RF components.
