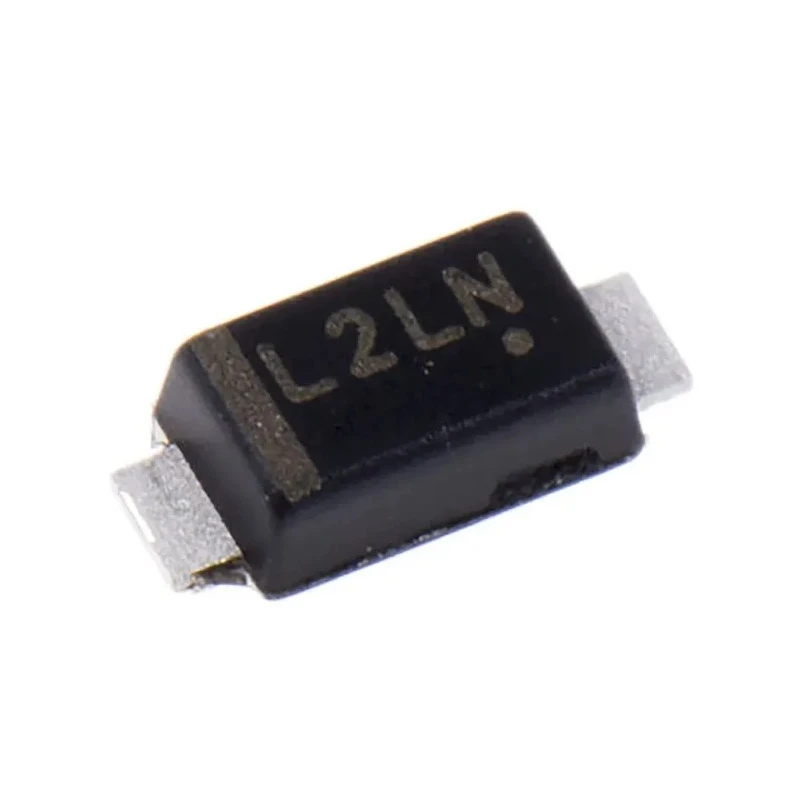

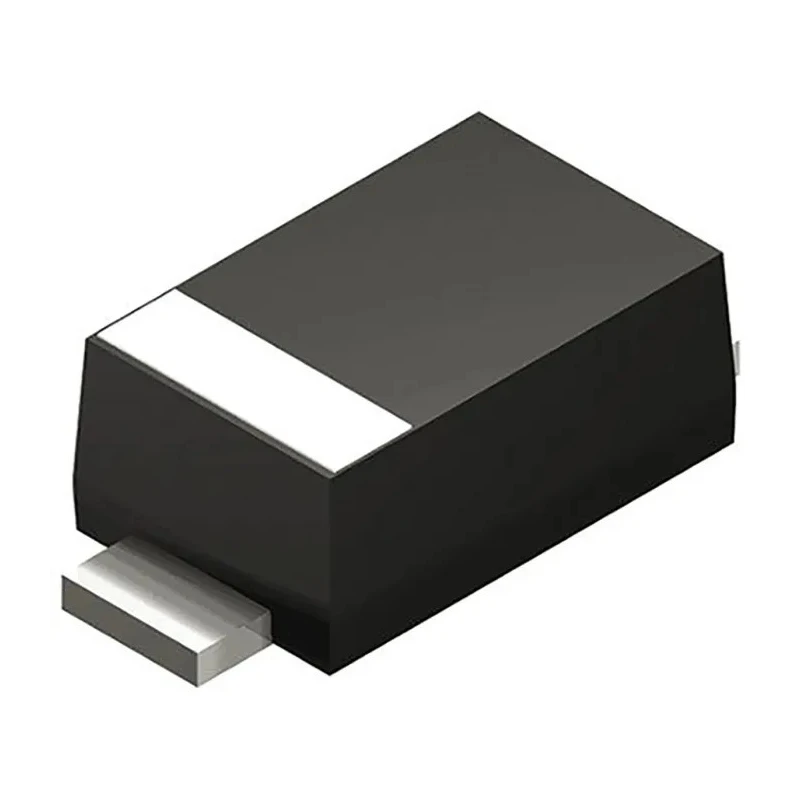

ROHM 30 V 2 A Schottky Barrier Diode, Surface Mount, SOD-123FL Package RB060MM-30TR

Free Delivery in India | Lowest Global Shipping Charges

ROHM 30 V 2 A Schottky Barrier Diode, Surface Mount, SOD-123FL Package RB060MM-30TR

Name: ROHM 30 V 2 A Schottky Barrier Diode, Surface Mount, SOD-123FL Package RB060MM-30TR
Brand: ROHM
SKU: 290616
Price: 0.25 USD
Availability: InStock



Category Schottky Barrier Diode Brand ROHM Condition New

Specifications

Country of Origin	Japan
Brand	ROHM
Height	0.8mm
Length	2.6mm
Model	RB060MM-30TR
Width	1.6mm
Mount Type	Surface
Maximum Operating Temperature	150°C
Package Type	SOD-123FL
Minimum Operating Temperature	-55°C
Standards/Approvals	RoHS
Pin Count	2
Maximum Continuous Forward Current If	2A
Peak Reverse Repetitive Voltage Vrrm	30V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	50μA
Peak Non-Repetitive Forward Surge Current Ifsm	55A
Maximum Forward Voltage Vf	490mV
Peak Reverse Recovery Time trr	9.8ns

Key Features

This diode features a low forward voltage drop of 490 mV for efficient power rectification.
It supports peak non-repetitive forward surge current up to 55 A, suitable for transient conditions.
Operating temperature ranges from -55°C to 150°C, providing robust thermal performance.
Extremely fast peak reverse recovery time of 9.8 ns ensures high-speed switching capabilities.
Compact dimensions of 2.6 mm length, 1.6 mm width, and 0.8 mm height enable space-saving PCB designs.
Pin count of 2 provides a single diode configuration, ideal for discrete applications.
The product is RoHS compliant and originates from Japan ensuring high quality manufacturing standards.

Product Description

ROHM RB060MM-30TR is a high-performance Schottky Barrier Diode designed for efficient low-voltage switching and rectification in electronic circuits. Its peak reverse voltage rating of 30 V and maximum continuous forward current of 2 A makes it suitable for power management and circuit protection in a variety of applications.

This diode adopts a 2-pin single diode configuration within a surface mount SOD-123FL package, enabling easy integration in compact PCB assembly. The device features a low maximum forward voltage of 490 mV, minimizing power losses and heat generation during operation.

Designed for industrial and commercial use, the RB060MM-30TR supports wide operating temperature ranges from -55°C up to 150°C, ensuring reliable performance under harsh environmental conditions. It also offers a peak non-repetitive forward surge current of 55 A, accommodating transient load spikes safely.

The diode’s high-speed switching capabilities are highlighted by a peak reverse recovery time of only 9.8 ns, making it ideal for applications requiring rapid diode commutation such as switch-mode power supplies and voltage clamping circuits.

Physically, the diode measures 2.6 mm in length, 1.6 mm in width, and 0.8 mm in height, allowing compact and dense circuit layouts. It complies with RoHS environmental standards and is manufactured with high-quality processes in Japan.

Low forward voltage drop of 490 mV reduces power dissipation. Peak surge current capability of 55 A enhances transient robustness. Wide operating temperature ensures durability in varied climates. Very fast reverse recovery time suits high-frequency switching.

Compact SOD-123FL package supports space-optimized designs. Single diode, 2-pin configuration for straightforward circuit implementation. RoHS compliant, environmentally safe.

This Schottky Barrier Diode is well-suited for applications in power rectification, voltage clamping, reverse polarity protection, and other semiconductor diode roles in industrial, consumer electronics, power supply, and automotive environments.
