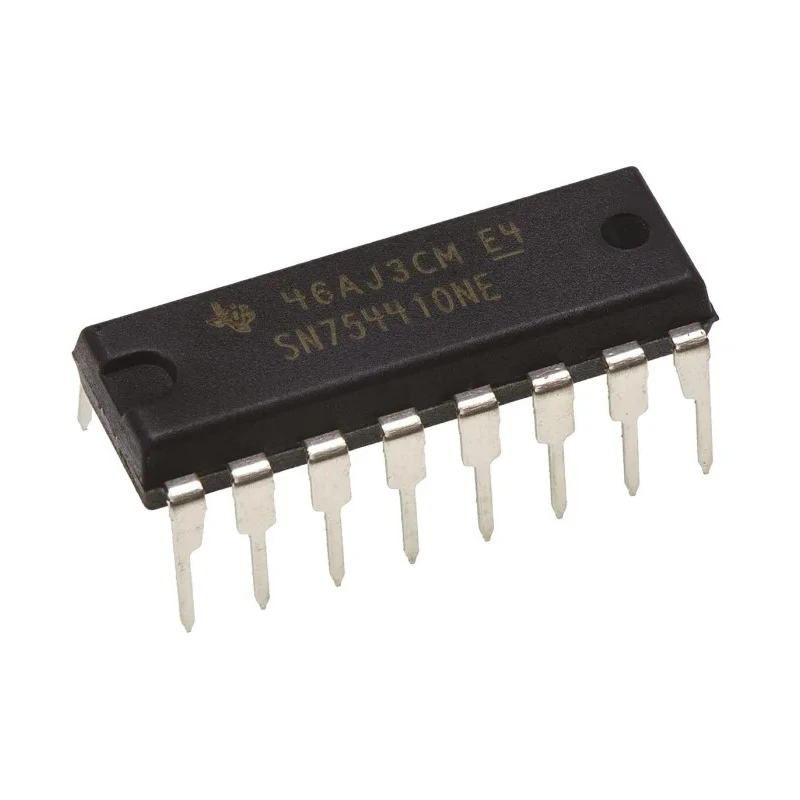

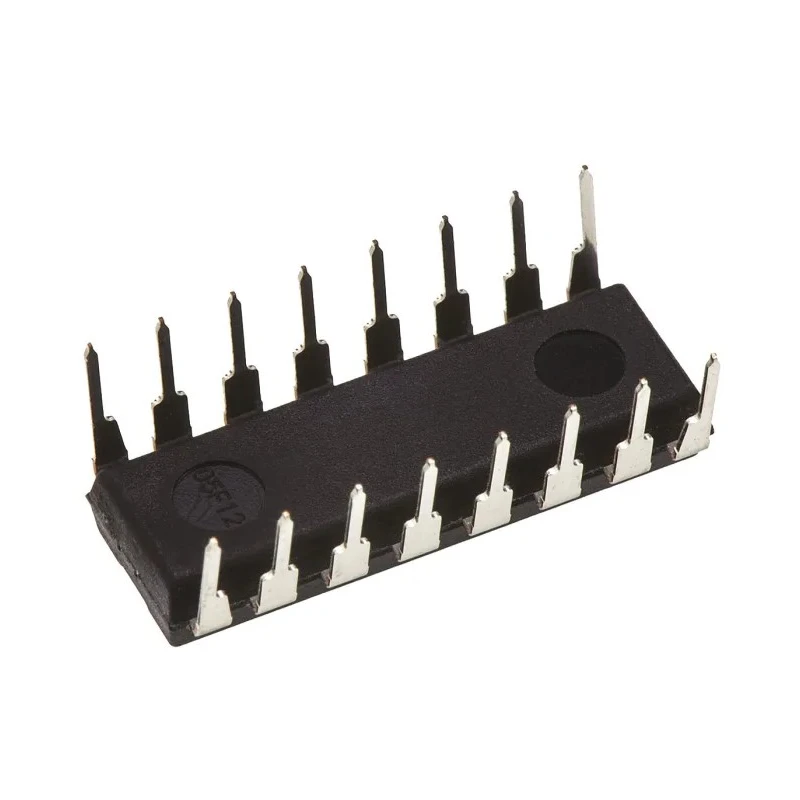

Texas Instruments General Purpose Gate Driver 16-Pin PDIP 1 A Output Current 4.5-36V Operating Voltage SN754410NE

Texas Instruments SN754410NE is a versatile general purpose gate driver IC designed for driving inductive loads such as relays, solenoids, DC motors, and bipolar stepping motors. The 16-pin PDIP package provides through-hole mounting convenience, making it suitable for prototyping and industrial applications.

This driver IC can deliver output currents up to 1 A at supply voltages ranging from 4.5 V to 36 V. Its four integrated drivers support three outputs, with both rise and fall times of 300 nanoseconds, ensuring responsive switching performance.

Mechanical dimensions include a length of 19.8 mm, width of 6.35 mm, and height of 4.57 mm. The device is rated for operation in temperatures between -40°C and 85°C, providing stable function under demanding environmental conditions.

SN754410NE is commonly employed in control circuits within industrial automation, electronics, and power management designs where reliable and efficient driving of motors and other inductive components is required.

The device features 4 drivers capable of driving inductive loads such as relays and solenoids. It supports three outputs with 1 A maximum current and fast switching times. Compatible with supply voltages from 4.5 V to 36 V.

Operating temperature range from -40°C to 85°C for robustness. Comes in a 16-pin PDIP through-hole package for easy mounting. Not compliant with automotive specific standards. Suitable for driving DC and bipolar stepping motors.

Ideal for electronic component systems and industrial drive applications. Explore more products in the Gate Drivers category at EnvMart for advanced semiconductor and power management components.
