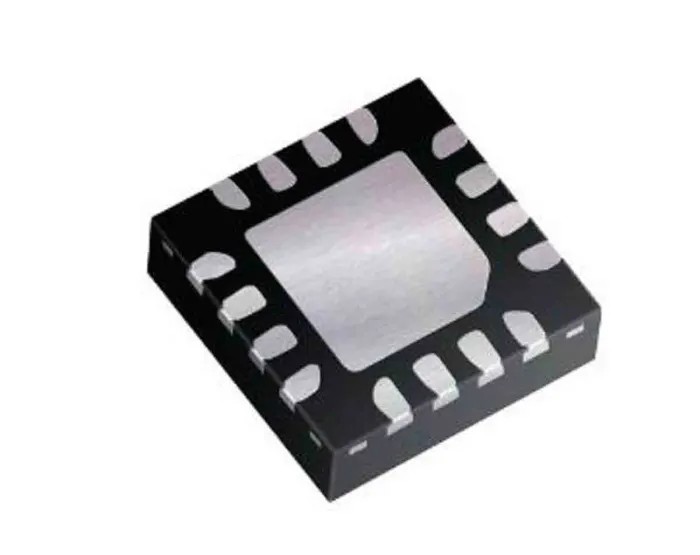

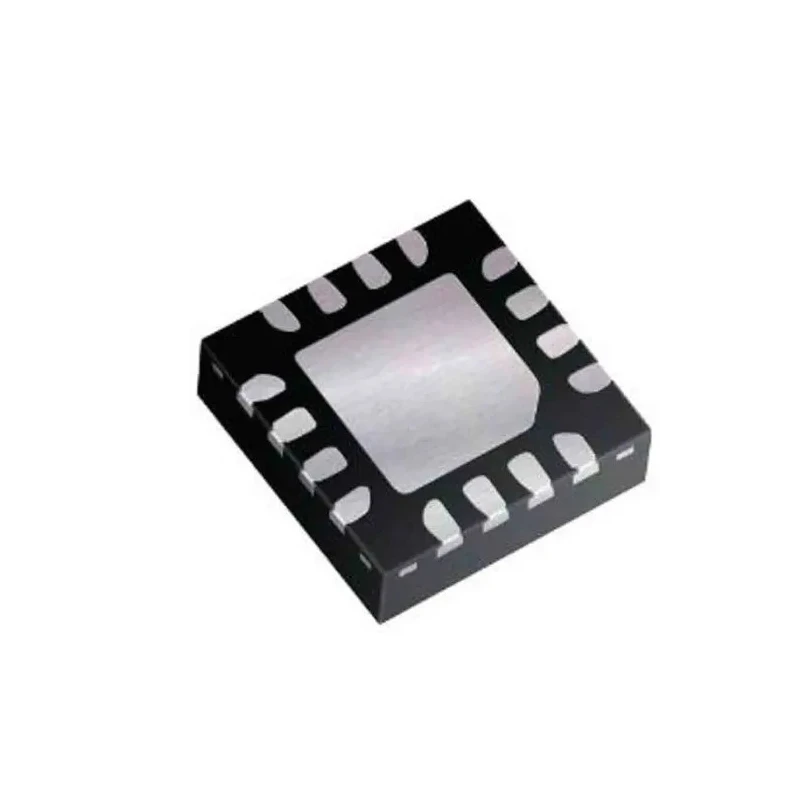

Renesas Electronics General Purpose Gate Driver 16-Pin QFN 18V 100mA EL7457CLZ

Renesas Electronics EL7457CLZ is a high-speed general purpose gate driver featuring 4 drivers and 4 outputs in a compact 16-pin QFN package measuring 4mm by 4mm with a height of 900μm.

This driver operates efficiently at a supply voltage of 18V with output current capacity of 100mA, designed for quick signal transitions with rise and fall times of 13.5ns and 13ns respectively. It supports high clock rates up to 40MHz and includes a fast output enable function with a 12ns delay.

The device enjoys industrial-grade operating temperature ranges from -40°C to 85°C, making it suitable for varied environments, though it does not comply with automotive standards.

The EL7457CLZ features a nominal on-resistance of 3 ohms, optimized for driving highly capacitive loads such as storage and vertical clocks in CCD applications. Additionally, it is well suited for Automated Test Equipment (ATE) pin driving, level shifting, and clock-driving applications in electronic manufacturing and semiconductors.

Its surface mount design simplifies assembly on PCBs for electronic devices and modules requiring reliable high-speed gate driving functionality. The device belongs to the EL7457 series of Renesas Electronics.

The device operates at a supply voltage of 18V. Output current capacity is 100mA per pin across 4 outputs. Fast rise and fall times deliver efficient switching performance. Package type is QFN, measuring 4mm x 4mm. Operating temperature range of -40°C to 85°C supports diverse environments.

Nominal on-resistance is approximately 3 ohms for low power loss. Surface mount technology eases PCB integration. Supports clock rates up to 40MHz with a fast output enable feature. Ideal for industrial, semiconductor manufacturing, and electronic equipment applications.
