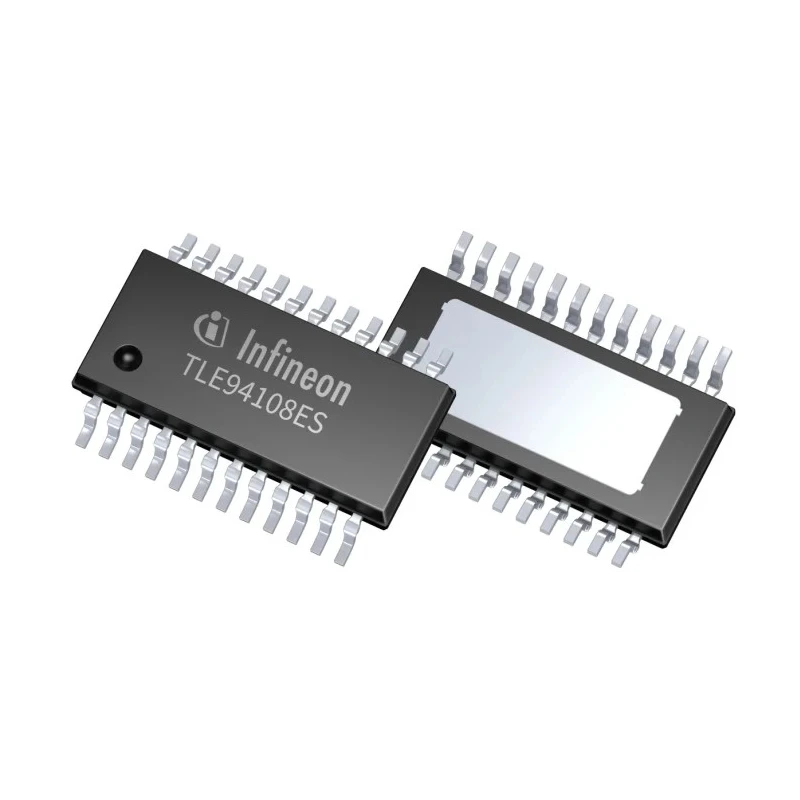

Infineon Multiple MOSFET Driver IC 2 A Output, 24-Pin PG-TSDSO Package, 40 V, Surface Mount TLE94108ESXUMA1

Infineon TLE94108ESXUMA1 is a multiple MOSFET driver IC designed for automotive and industrial motor control applications. This IC provides four half-bridge gate drivers to drive external N-channel MOSFETs efficiently. Its 24-pin PG-TSDSO-24 surface mount package ensures compact integration on PCB assemblies. Operating with supply voltages up to 40 V and an output current capability of 2 A, it enables robust control of power electronics components.

The device supports a pulse width modulation (PWM) frequency up to 25 kHz, facilitating precise and variable motor speed control. The junction temperature rating from -40°C to 150°C guarantees durable performance in harsh environments.

The serial peripheral interface with 24-bit communication allows seamless integration into complex embedded systems. Its dimensions of 8.65 mm length, 3.9 mm width, and 1.15 mm height allow it to fit in densely packed circuits while maintaining thermal efficiency.

Applications for this IC include automotive motor drives, industrial automation, and power management systems requiring efficient MOSFET gate driving solutions. The surface mount package simplifies assembly and enhances reliability in high-vibration conditions.

Provides four half-bridge Gate Drivers for external N-channel MOSFETs. Operates at supply voltages up to 40 V for versatile use. Supports PWM frequency up to 25 kHz for precise motor control. Wide operating temperature range from -40°C to 150°C.

Compact 24-pin PG-TSDSO package dimensions 8.65x3.9x1.15 mm. Uses 24-bit serial peripheral interface for flexible communication. Ideal for automotive and industrial motor control applications. Discover the Infineon TLE94108ESXUMA1 at EnvMart for industrial and automotive electronic component needs. Explore diverse power management ICs crafted to enhance your designs.
