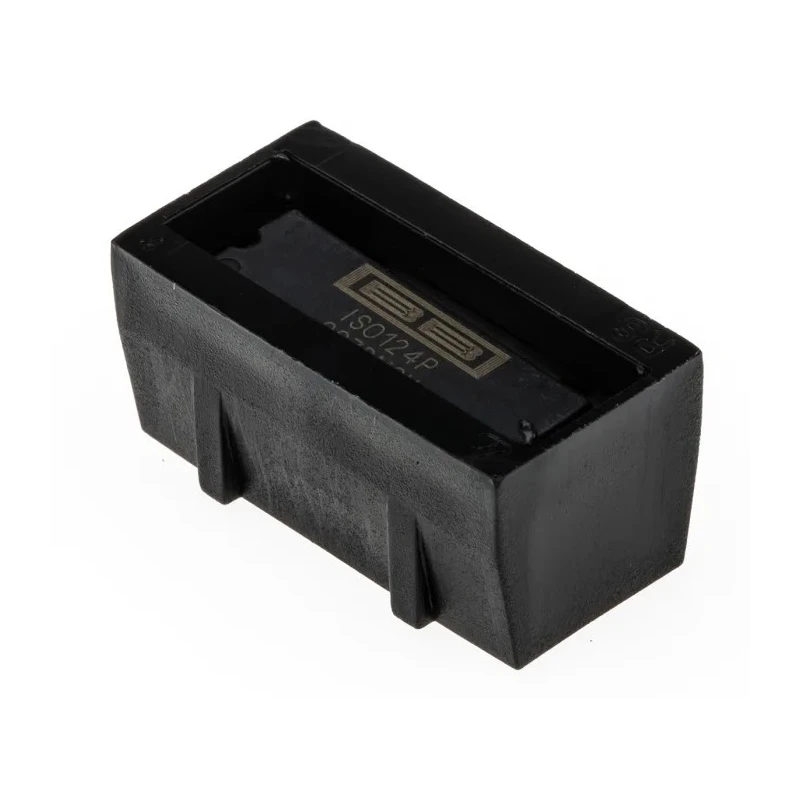

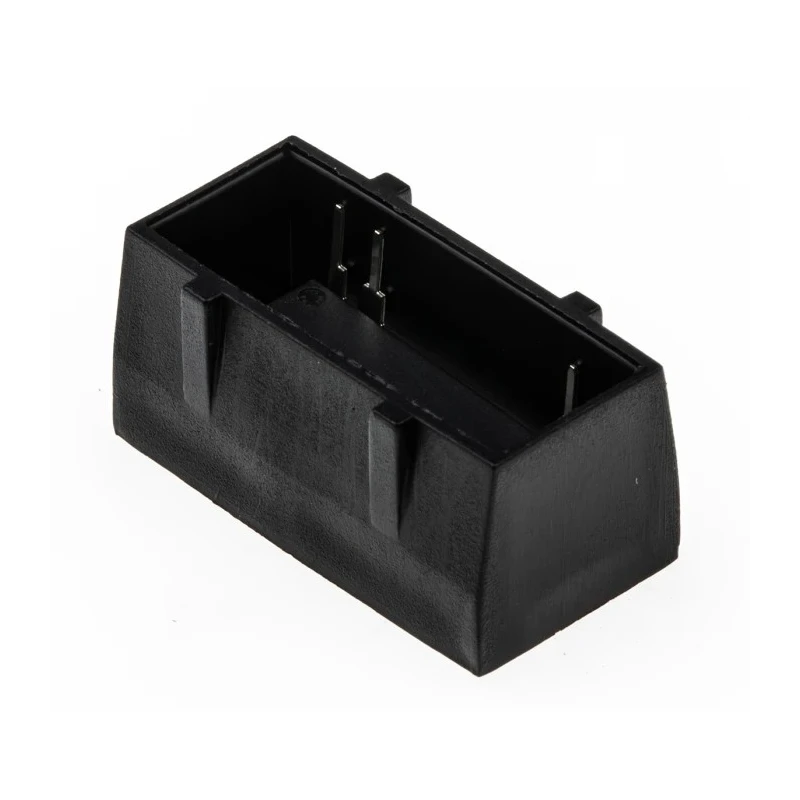

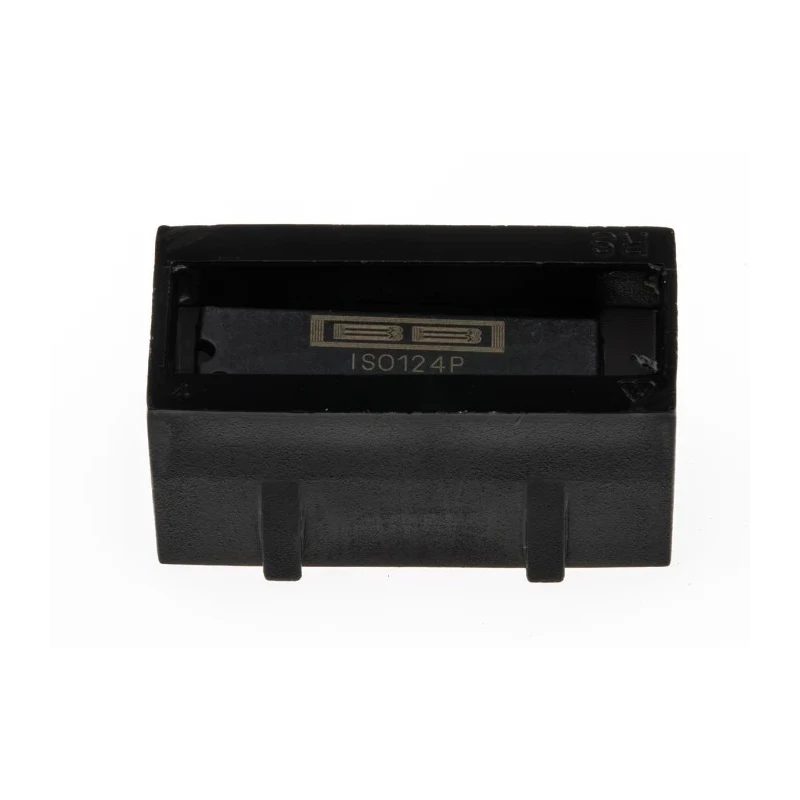

Texas Instruments Isolation Amplifier, 8-Pin PDIP, 18V Supply, 1500V Isolation Voltage ISO124P

Texas Instruments ISO124P Isolation Amplifier delivers high-voltage isolation and high precision in a compact 8-pin PDIP package with operating voltages ranging from -18V to 18V. Designed for industrial and electronic components applications, it provides excellent signal isolation with a 1500V isolation voltage rating suitable for environments requiring reliable protection between circuits.

This single-channel device is widely used in semiconductor amplification and isolation tasks across various industries including industrial automation, instrumentation, and measurement systems. The temperature rating from -25°C to 85°C ensures dependable performance under diverse environmental conditions.

The compact dimensions (20.01mm length, 6.61mm width, and 3.94mm height) enable integration into printed circuit boards with minimal spatial requirements. The PDIP (Plastic Dual In-line Package) facilitates easy through-hole mounting and soldering processes.

ISO124P complies with Restriction of Hazardous Substances (RoHS) standards, ensuring eco-friendly manufacturing and disposal. Although not automotive standard certified, it is an ideal choice for industrial-grade analog isolation applications necessitating high breakdown voltages and precision.

Applications include industrial control systems, medical instrumentation, power supply isolation, data acquisition, and signal conditioning circuits. Its robust isolation and precise amplification make it indispensable for improving signal integrity and protecting sensitive downstream electronics.

Offers a supply voltage range from -18V to 18V ensuring flexible power options. Configured with a single channel designed for isolation amplification applications. Features an isolation voltage rating of 1500V for robust signal separation.

Compact PDIP package with 8 pins suitable for surface mount applications. Operates reliably within -25°C to 85°C temperature range for broad industrial use. Dimensions include length of 20.01mm, width 6.61mm, and height 3.94mm.

Complies with RoHS environmental standards for safety and sustainability. Not certified for automotive use but ideal for general industrial and laboratory electronics. Explore a comprehensive selection of Isolation Amplifiers and analog isolators at EnvMart for your industrial and laboratory electronic projects.
