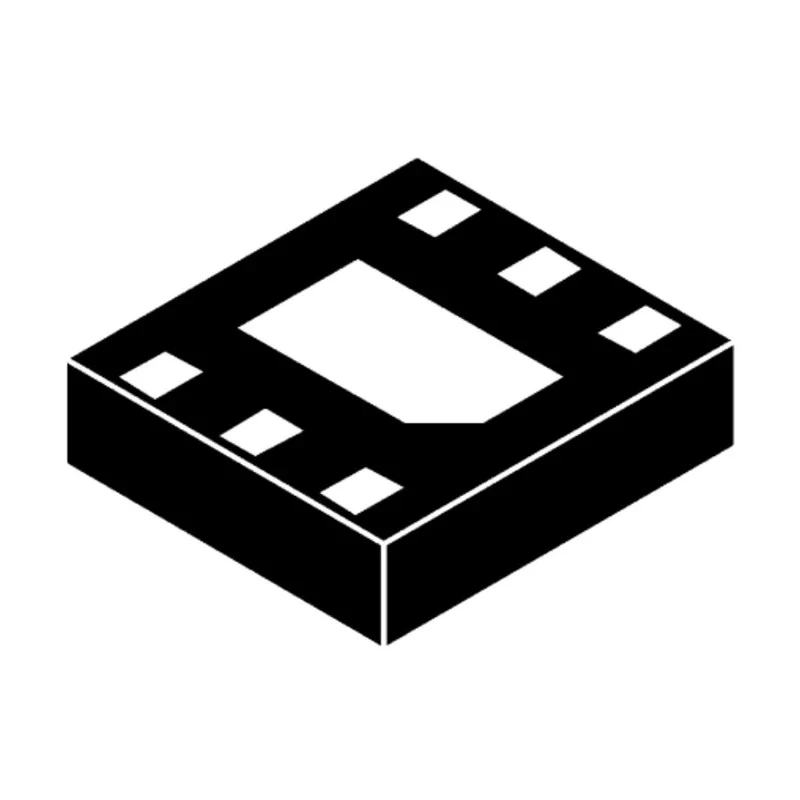

DiodesZetex High Side Current Limit Load Power Switch IC 6-Pin UDFN AP2553AFDC-7
Specifications
| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Height | 0.58mm |
| Length | 2.08mm |
| Model | AP2553AFDC-7 |
| Width | 2.08mm |
| Mount Type | Surface |
| Number of inputs | 1 |
| Series | AP2553 |
| Power Rating | 450mW |
| Maximum Operating Temperature | 85°C |
| Package Type | UDFN |
| Minimum Operating Temperature | -40°C |
| Operating Current | 2542mA |
| Number of outputs | 5 |
| Pin Count | 6 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.7V |
| Switch On Resistance RdsOn | 150mΩ |
Key Features
- The IC incorporates a low Switch On Resistance of 150mΩ ensuring low power loss.
- It supports a maximum operating current of 2542mA suitable for various electronic applications.
- Designed with a wide operating voltage range from 2.7V to 5.5V for flexible integration.
- Operates effectively within a temperature range of -40°C to 85°C for reliability.
- The compact UDFN package measures 2.08mm in length and width, with a height of 0.58mm.
- Equipped with a single input and 5 output configuration, ideal for controlled power switching.
- Surface mount technology enables easy PCB assembly and manufacturing efficiency.
- Power rating of 450mW supports moderate power handling requirements.
Product Description
DiodesZetex AP2553AFDC-7 is a High Side Current Limit Load Power Switch IC designed for precise and efficient power control in electronic systems. Packaged in a 6-Pin UDFN surface mount format, this IC provides low on-resistance switching with a RdsOn of 150mΩ, minimizing power loss during operation.
The device supports a robust operating current of 2542mA and operates reliably over a broad voltage supply range from 2.7V minimum up to 5.5V maximum. This allows it to be integrated across diverse power management and load switching applications.
It is engineered to operate within ambient temperatures spanning -40°C to 85°C, making it suitable for demanding industrial and commercial electronics environments. The compact physical dimensions of 2.08mm by 2.08mm by 0.58mm height facilitate design-in where board space is at a premium.
This single channel IC features five outputs with one input, delivering controlled power switching capabilities for electronic loads. Its surface mount type package permits automated PCB assembly processes enhancing manufacturing throughput.
The IC provides enhanced protection by current limiting the load, thus safeguarding power distribution architectures. It is a part of the AP2553 series, known for high quality and reliability from DiodesZetex. The product is ideal for electronic component assemblies in industrial systems, power management design circuits, and consumer electronics.
Suitable for use in environments including industrial automation, instrumentation, and other electronic control systems requiring efficient power switching. The compact 6-pin UDFN form factor optimizes space for densely packed circuit boards.
It does not include any specific automotive standards approvals, targeting general electronic and power management applications. Explore more Power Switch ICs and power management solutions in EnvMart’s comprehensive Electronics & Electricals category to enhance your projects.
