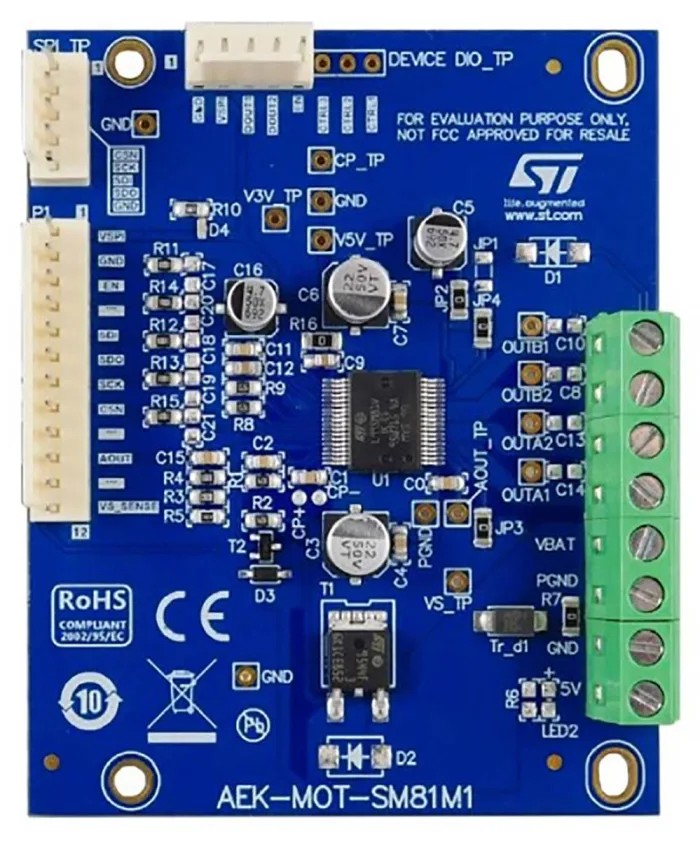

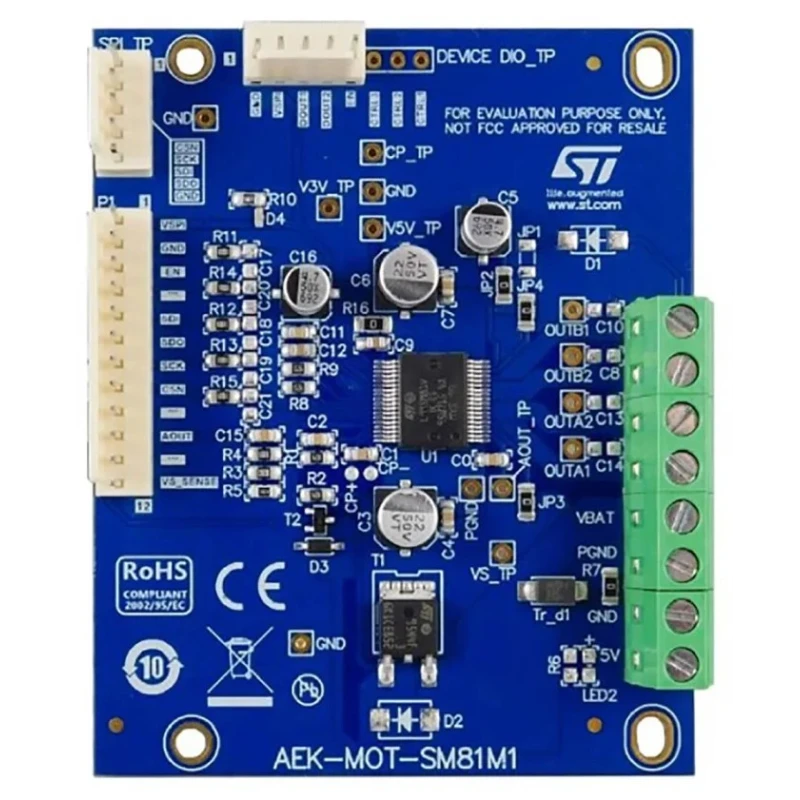

STMicroelectronics Motor Driver Evaluation Board for L99SM81V Bipolar Stepper Motor with 6-28V Input and AEK-MOT-SM81M1
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | STMicroelectronics |
| Model | AEK-MOT-SM81M1 |
| For Use With | L99SM81V |
| Standards/Approvals | RoHS |
| Kit Classification | Evaluation Board |
| Featured Device | L99SM81V |
| Kit Name | AEK-MOT-SM81M1 |
Key Features
- Designed specifically for automotive-grade L99SM81V stepper motor driver integrated circuit.
- Supports input operating voltage range from 6 V to 28 V for flexible power supply options.
- Features internal 5 V linear voltage regulator for stable internal power requirements.
- Output current up to 1.35 A suitable for controlling medium power stepper motors.
- Includes back EMF monitoring functionality for stall detection ensuring motor protection.
- Interface via SPI communication through both a 12-pin male connector and dual 5-pin connectors for easy MCU integration.
- RoHS compliant and manufactured in Italy guaranteeing quality and environmental standards adherence.
- Evaluation board kit ideal for robotics, automation, and power management development applications.
Product Description
STMicroelectronics AEK-MOT-SM81M1 motor driver evaluation board supports the automotive-grade L99SM81V stepper motor driver IC with embedded power MOSFETs, providing an effective solution for bipolar stepper motor control in micro-stepping mode.
The board operates over a wide voltage input range of 6 V to 28 V, ensuring compatibility with common power supplies while maintaining a regulated 5 V internal voltage for the control circuitry.
It delivers continuous output currents up to 1.35 A per phase, suitable for medium power stepper motors used in industrial, robotics, and automotive applications. The integrated back electromotive force (BEMF) monitoring enables stall detection, protecting the motor and driver from faults.
Control and feedback are facilitated through comprehensive I/O ports utilizing SPI communication, accessible via a 12-pin male connector or two separate 5-pin connectors on the board, allowing flexible microcontroller interfacing.
The AEK-MOT-SM81M1 evaluation board is RoHS compliant and built in Italy, assuring compliance with environmental and quality standards. This motor driver board is widely applicable in power management, motor control development, robotics, and automation systems, making it an essential tool for engineers and developers designing precise motor control solutions.
Designed specifically for automotive-grade L99SM81V stepper motor driver integrated circuit. Supports input operating voltage range from 6 V to 28 V for flexible power supply options. Features internal 5 V linear voltage regulator for stable internal power requirements.
Output current up to 1.35 A suitable for controlling medium power stepper motors. Includes back EMF monitoring functionality for stall detection ensuring motor protection. Interface via SPI communication through both a 12-pin male connector and dual 5-pin connectors for easy MCU integration.
RoHS compliant and manufactured in Italy guaranteeing quality and environmental standards adherence. Evaluation board kit ideal for robotics, automation, and power management development applications. Explore more STMicroelectronics motor driver products and evaluation boards at EnvMart for advanced industrial, laboratory, and commercial motor control solutions.
Explore more products in our Motor Driver Boards category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The evaluation board supports an input operating voltage range from 6 V to 28 V, allowing for flexible power supply options.
It delivers continuous output currents up to 1.35 A per phase, suitable for controlling medium power stepper motors.
The board includes back electromotive force (BEMF) monitoring functionality for stall detection, ensuring motor protection.
Control and feedback are facilitated through SPI communication, accessible via a 12-pin male connector and dual 5-pin connectors for easy microcontroller integration.
Yes, it is RoHS compliant, ensuring adherence to environmental standards.
The evaluation board is manufactured in Italy.
It is specifically designed for the automotive-grade L99SM81V stepper motor driver integrated circuit.
This evaluation board is widely applicable in power management, motor control development, robotics, and automation systems.
Yes, it features an internal 5 V linear voltage regulator for stable internal power requirements.
The kit is classified as an evaluation board, designed for testing and development purposes.
The model name of this evaluation board is AEK-MOT-SM81M1.
The board supports control of bipolar stepper motors in micro-stepping mode, enhancing precision in motor control applications.
