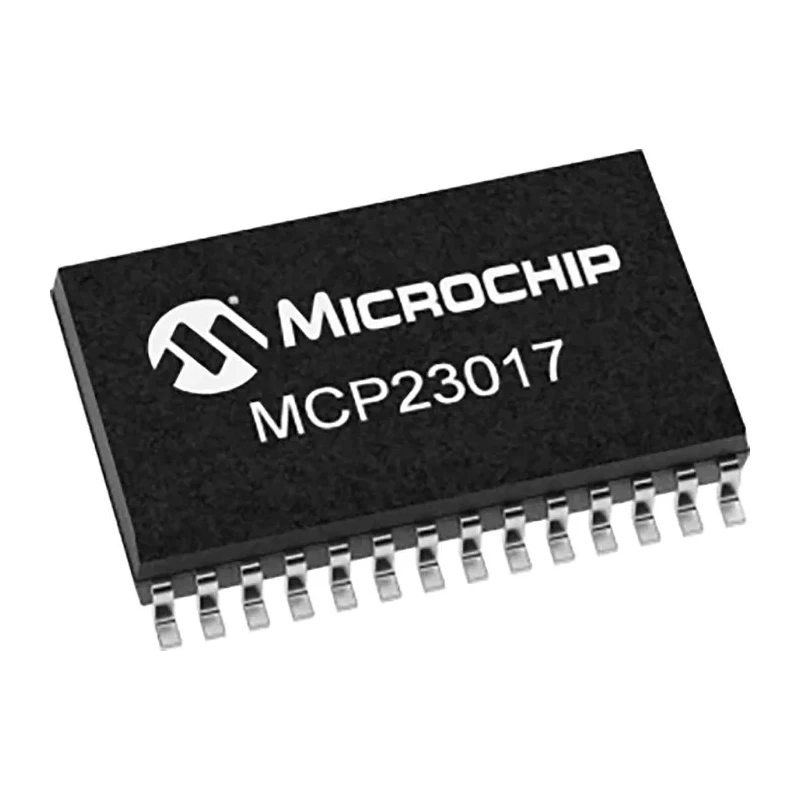

Microchip 16-Channel I/O Expander SSOP 28, 10MHz Clock Frequency, 1.8V to 5.5V Supply MCP23017T-E/SS
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Microchip |
| Height | 2.2mm |
| Length | 10.5mm |
| Model | MCP23017T-E/SS |
| Mount Type | Surface |
| Series | MCP23017 |
| Maximum Operating Temperature | 125°C |
| Package Type | SSOP |
| Minimum Operating Temperature | -40°C |
| Pin Count | 28 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 1.8V |
| Clock frequency | 10MHz |
| Number of I/O Channels | 16 |
Key Features
- The device features 16 input/output channels configurable as inputs or outputs.
- It supports surface mount package type SSOP with 28 pins suitable for compact PCB designs.
- Operates over a supply voltage range of 1.8V to 5.5V for flexibility in system design.
- Maximum clock frequency is 10MHz enabling fast data communication.
- Pin count is 28 to facilitate complex circuit integration.
- Wide operating temperature from -40°C to 125°C ensures reliability in harsh environments.
- Provides two 8-bit ports (PORTA and PORTB) with polarity inversion features.
- Device is cascadable, supporting up to 8 devices on one bus for expansion.
Product Description
Microchip MCP23017T-E/SS is a 16-channel Input/Output (I/O) expander IC packaged in a 28-pin SSOP surface-mount package. It operates with a clock frequency of up to 10MHz and supports a wide supply voltage range from 1.8V to 5.5V. Designed to expand the number of I/O ports on microcontrollers, this device is ideal for embedded systems requiring additional GPIO pins.
The expander contains multiple 8-bit configuration registers that allow the system master to configure each I/O as input or output. Individual data for these ports is stored in corresponding input or output registers, with polarity inversion capabilities to facilitate various signal requirements. The 16 I/O lines are divided into two 8-bit ports labeled PORTA and PORTB.
The MCP23017T-E/SS supports cascading, allowing up to eight devices on a single I2C bus, permitting extensive system expansion. It provides robust 25mA sink/source current capability on each I/O pin, ideal for driving LEDs and other peripherals directly.
This device operates reliably in a wide temperature range from -40°C to 125°C, making it suitable for industrial, automotive, and commercial applications requiring harsh environment tolerance. Its 28-pin SSOP package is suitable for high-density PCB layouts, and surface mount technology enables automated assembly processes.
16 configurable input/output channels with polarity inversion. Supports I2C interface compatible with 100kHz, 400kHz, and 1.7MHz speeds. Cascadable design allows linking up to eight devices on one I2C bus. Wide operating temperature range: -40°C to 125°C.
Supply voltage range: 1.8V to 5.5V. 25mA current sink/source capability per I/O. Applications include industrial control systems, embedded device expansion, automotive electronics, consumer electronics, and embedded instrumentation.
Its country of origin is Thailand. Explore related electronic components and I/O Expanders at EnvMart for comprehensive solutions to your electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this model is 10MHz, enabling fast data communication.
It operates over a supply voltage range from 1.8V to 5.5V, providing flexibility in system design.
This model features 16 configurable input/output channels, which can be set as either inputs or outputs.
The device has a height of 2.2mm and a length of 10.5mm, packaged in a 28-pin SSOP format.
It operates reliably in a wide temperature range from -40°C to 125°C, making it suitable for harsh environments.
Yes, it supports cascading, allowing up to eight devices to be connected on a single I2C bus for expansion.
Each I/O pin can sink or source up to 25mA, making it suitable for driving LEDs and other peripherals directly.
This model uses a surface mount package type SSOP with 28 pins, suitable for compact PCB designs.
The I/O expander is manufactured by Microchip.
It provides two 8-bit ports, PORTA and PORTB, with polarity inversion features for various signal requirements.
This I/O expander is suitable for applications in industrial control systems, automotive electronics, and embedded instrumentation.
The country of origin for this model is Thailand.
