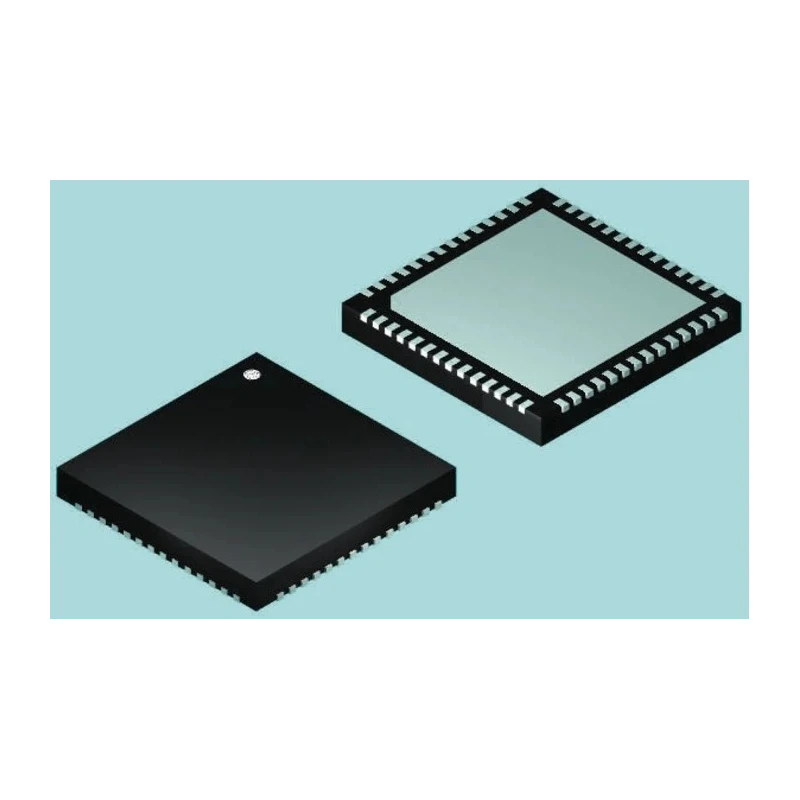

Microchip dsPIC33FJ128MC804-I/ML Digital Signal Processor 40 MHz 16-bit 128kB FLASH 44-Pin QFN
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 880μm |
| Length | 8mm |
| Model | dsPIC33FJ128MC804-I/ML |
| Width | 8mm |
| Mount Type | Surface |
| Core | dsPIC33F |
| Series | DSPIC33FJ128MC |
| Maximum Operating Temperature | 85°C |
| Number Of Cores | 1 |
| Package Type | QFN |
| Minimum Operating Temperature | -40°C |
| Ram size | 16kB |
| ADC Resolution | 12bit |
| Timer Resolution | 32bit |
| Standards/Approvals | VDE, IEC 60730 |
| Pin Count | 44 |
| Automotive Standard | AEC-Q100 Rev G Grade 0 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 3.3V |
| Program Memory Size | 128kB |
| Maximum Clock Frequency | 40MHz |
| Number of Timers | 5 |
| Instruction Set Architecture | RISC |
| Program Memory Type | FLASH |
| Number of ADCs | 1 |
| Device Million Instructions per Second | 40MIPS |
| Number of PWM Units | 4 |
| PWM Resolution | 25ns |
| ADC Channels | 9 |
| Number of PWM Channels | 8 |
| Numeric and Arithmetic Format | 16 x 16 |
| dsPIC33FJ64MC804-I/ML Microchip, 16bit DSP 40MHz 64 kB Flash 44-Pin QFNBrand | Microchip |
Key Features
- Features a 16-bit data bus width and 16kB RAM.
- Utilizes a dsPIC33F core with RISC instruction set architecture.
- Supports a maximum clock frequency of 40 MHz and 40 MIPS performance.
- Offers 1 ADC, 9 ADC channels with 12-bit resolution, and 8 PWM channels.
- Packaged in a 44-pin QFN surface mount with dimensions 8 mm x 8 mm and height 880 μm.
- Supports operating temperature range from -40°C to 85°C.
- Includes 5 timers with 32-bit resolution and 4 PWM units with 25 ns resolution.
- Complies with automotive standard AEC-Q100 Rev G Grade 0 and IEC 60730.
Product Description
Microchip dsPIC33FJ128MC804-I/ML is a high-performance 16-bit Digital Signal Processor featuring a 40 MHz maximum clock frequency and 128kB FLASH memory. It integrates a dsPIC33F core with RISC architecture delivering up to 40 MIPS, making it suitable for complex digital signal processing tasks. The device supports 16-bit data bus width and includes 16kB of RAM for efficient data handling.
This processor is designed with 1 ADC that supports 9 channels at 12-bit resolution and 8 PWM channels, making it ideal for motor control and precision digital control applications. Packaged in a compact 44-pin QFN surface mount measuring 8 mm by 8 mm with a height of 880 μm, it fits well into space-constrained embedded systems.
Operating temperature ranges from -40°C to 85°C ensure reliable performance under harsh industrial and automotive environments. It includes multiple timers with 32-bit resolution and PWM units with 25 ns resolution to support high-resolution timing and control functions. Compliance with automotive standard AEC-Q100 Rev G Grade 0 and IEC 60730 assures quality and reliability for automotive applications.
The dsPIC33FJ128MC804-I/ML provides a robust solution for embedded design engineers requiring a blend of digital signal processing power and microcontroller simplicity. Applications include motor control, digital power conversion, audio processing, and other high-performance industrial control systems.
Key integrated peripherals for digital power supplies and control loops enable optimized energy efficiency and performance. The compact and efficient architecture facilitates innovation in industrial controls, automation systems, and automotive electronics.
Explore the full range of Microchip Digital Signal Processors at EnvMart for industrial and automotive embedded solutions requiring precision and efficiency. Features a 16-bit data bus width and 16kB RAM. Utilizes a dsPIC33F core with RISC instruction set architecture.
Supports a maximum clock frequency of 40 MHz and 40 MIPS performance. Offers 1 ADC, 9 ADC channels with 12-bit resolution, and 8 PWM channels. Packaged in a 44-pin QFN surface mount with dimensions 8 mm x 8 mm and height 880 μm.
Supports operating temperature range from -40°C to 85°C. Includes 5 timers with 32-bit resolution and 4 PWM units with 25 ns resolution. Complies with automotive standard AEC-Q100 Rev G Grade 0 and IEC 60730. Designed for high-performance digital control and motor control applications.
Ideal for industrial, automotive, and embedded system designs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this model is 40 MHz.
It features 128kB of FLASH memory for program storage.
The operating temperature range is from -40°C to 85°C.
This model supports 9 ADC channels with 12-bit resolution.
The PWM units have a resolution of 25 ns.
It is packaged in a 44-pin QFN surface mount configuration.
This model includes 5 timers with 32-bit resolution.
The height of this model is 880 μm.
It complies with automotive standard AEC-Q100 Rev G Grade 0.
The maximum supply voltage is 3.6V.
This digital signal processor offers 8 PWM channels.
It utilizes a dsPIC33F core with RISC instruction set architecture.
