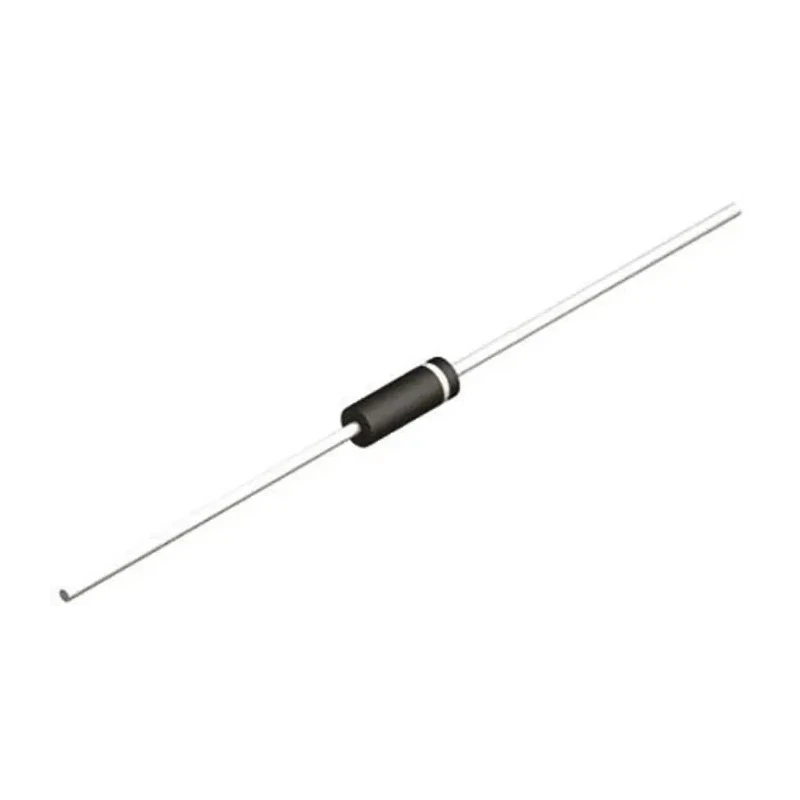

Vishay 1-Element Uni-Directional Transient Voltage Suppressor 1500W 2-Pin Through Hole 1N6302A-E3/54
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 5.3mm |
| Brand | Vishay |
| Height | 5.3mm |
| Length | 9.5mm |
| Model | 1N6302A-E3/54 |
| Width | 5.3mm |
| Mount Type | Through Hole |
| Series | 1.5KE |
| Maximum Operating Temperature | 175°C |
| Package Type | 1.5KE |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 246V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 171V |
| Maximum Reverse Stand-off Voltage Vwm | 154V |
| Peak Pulse Power Dissipation Pppm | 1500W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 6.1A |
| Maximum Reverse Leakage Current | 1μA |
Key Features
- Single diode configuration designed for unidirectional transient voltage suppression.
- Minimum breakdown voltage of 171 V and maximum reverse stand-off voltage of 154 V.
- Capable of dissipating peak pulse power of 1500 W ensuring robust surge protection.
- Clamping voltage at 246 V provides effective voltage limiting under transient conditions.
- Operates reliably in temperatures ranging from -55°C to 175°C.
- Through-hole mounting with a 1.5KE package type enables easy PCB integration.
- Includes ESD protection for enhanced device safety.
- Compact axial form factor with dimensions 9.5 mm length and 5.3 mm diameter and width.
Product Description
Vishay 1N6302A-E3/54 is a 1-element uni-directional transient voltage suppressor designed to protect sensitive electronic components from voltage transients and surges. It delivers a peak pulse power dissipation of 1500 W, making it highly effective in safeguarding circuits against transient voltage spikes.
The device features a single diode configuration with a minimum breakdown voltage of 171 V, a maximum reverse stand-off voltage of 154 V, and a clamping voltage of 246 V, providing reliable voltage suppression within critical limits. With its through-hole package type 1.5KE and 2-pin configuration, the suppressor is suitable for standard PCB mounting and installation.
Its robust construction supports an operating temperature range from -55°C to 175°C, enabling usage in harsh environmental conditions typical of industrial, automotive, and electronic applications. The device also includes ESD protection and complies with the automotive standard AEC-Q101, verifying its suitability for automotive electronics.
The axial form factor with compact dimensions - length 9.5 mm, diameter and width 5.3 mm - ensures space-efficient design in electrical assemblies. As a discrete semiconductor component, this transient voltage suppressor is integral for power and connector systems requiring stringent voltage transient control.
Single diode, uni-directional configuration for reliable surge suppression. 1500 W peak pulse power dissipation capacity ensures strong protection. Wide operational temperature range supports diverse industrial conditions.
Compliant with AEC-Q101 automotive standards guaranteeing high quality. Compact axial design fits easily into through-hole PCB layouts. Effective clamping voltage minimizes transient voltages on circuits. Manufactured in China with quality semiconductor processes.
This Vishay transient voltage suppressor is ideal for use in industrial electronics, automotive systems, power supply protection, and other applications demanding dependable transient voltage control. Explore more semiconductor components and TVS diode options in the Electronic Components category at EnvMart.
Explore more products in our TVS Diodes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a peak pulse power dissipation capacity of 1500 W, providing strong protection against voltage transients.
The minimum breakdown voltage for the 1N6302A-E3/54 is 171 V, ensuring effective voltage suppression during transient events.
The clamping voltage of this unit is 246 V, which helps limit voltage spikes during transient conditions.
It operates reliably within a temperature range of -55°C to 175°C, making it suitable for various industrial applications.
This transient voltage suppressor has a length of 9.5 mm and a diameter of 5.3 mm, allowing for compact PCB integration.
It features a through-hole mounting type, facilitating easy installation on printed circuit boards (PCBs).
This model is a single diode configuration, designed specifically for uni-directional transient voltage suppression.
It complies with the AEC-Q101 automotive standard, ensuring its suitability for automotive electronic applications.
The maximum reverse stand-off voltage for the 1N6302A-E3/54 is 154 V, providing additional protection against voltage spikes.
The maximum peak pulse current this unit can handle is 6.1 A, ensuring effective surge protection under transient conditions.
The maximum reverse leakage current is 1 μA, which is critical for maintaining circuit integrity during operation.
Yes, this model includes ESD protection, enhancing device safety against electrostatic discharge events.
