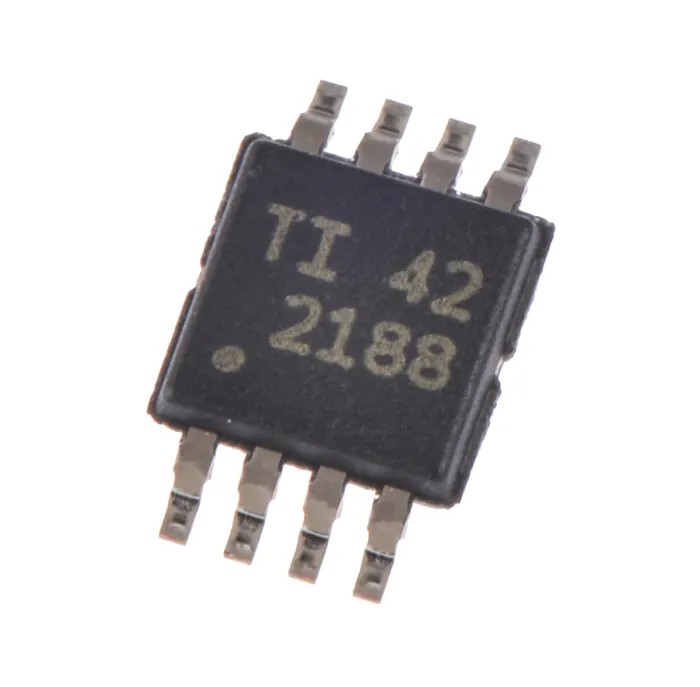

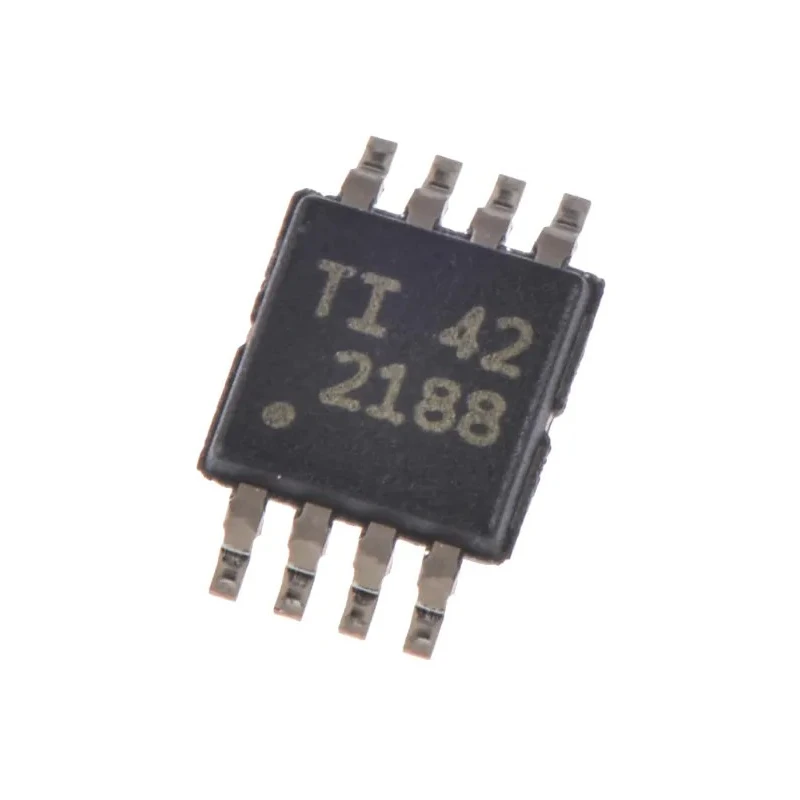

Texas Instruments Voltage Level Translator CMOS Bi-Directional 1 Voltage Level 8-Pin VSSOP TXS0102DCUR

Texas Instruments TXS0102DCUR is a CMOS logic family voltage level translator designed for bi-directional operation with a compact 8-pin VSSOP surface mount package. It is engineered to facilitate reliable voltage level translation in electronic circuits, making it suitable for various semiconductor and electronic applications.

This device supports a supply voltage range from 1.65V minimum to 5.5V maximum, accommodating a wide range of digital logic levels. Its maximum propagation delay time is 7.5ns under given load conditions, ensuring fast transition times for efficient signal communication.

The open drain output type supports up to 1μA maximum low level output current and 2μA maximum high level output current, enabling low power consumption in sensitive electronic systems. The package presents 8 pins arranged for surface mounting, with a single element per chip offering streamlined integration into circuit boards.

Operating temperature extends from -40°C to 85°C, providing robustness under industrial and commercial environments. The device dimensions are compact, with a height of 900μm and length of 3.2mm, allowing space-saving designs in electronic devices.

This IC series does not include any automotive standard certifications and has no specific compliance approvals, which suits general electronic applications. Intended for electronic component applications such as logic level translation, it is widely used in semiconductor circuits, embedded systems, communication devices, and power management modules.

The package contains one voltage level translator chip of model TXS0102DCUR from Texas Instruments, which is new and manufactured to industry quality standards.

Ideal for use in industrial, laboratory, and electronic equipment manufacturing contexts. Browse the Electronics & Electricals category on EnvMart for additional semiconductor devices and Translator ICs.

Operates with a minimum supply voltage of 1.65V and maximum supply voltage of 5.5V. Maximum propagation delay time of 7.5ns for fast signal translation. Bi-directional translation with CMOS logic interface. Surface mountable 8-pin VSSOP package for compact design.

Wide operating temperature from -40°C to 85°C. Compact dimensions of 900μm height × 3.2mm length. Open drain output type with low output currents for power efficiency. New product condition with no automotive standards or special certifications.
