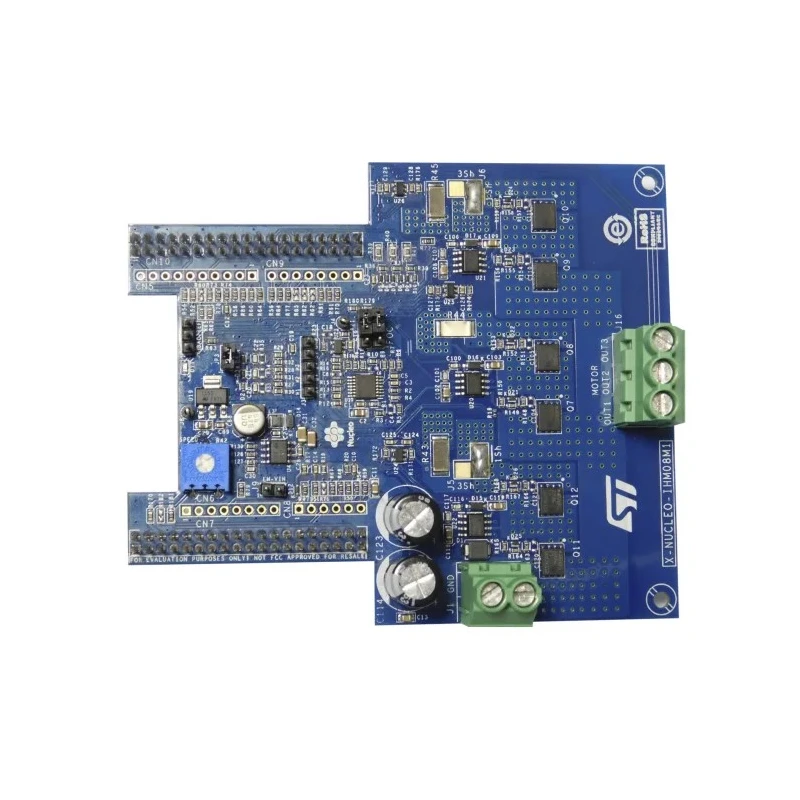

STMicroelectronics Low-Voltage Brushless DC Motor Driver Expansion Board for STM32 Nucleo X-NUCLEO-IHM08M1
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Model | X-NUCLEO-IHM08M1 |
| For Use With | STL220N6F7 |
| Kit Classification | Evaluation Board |
| Featured Device | STM32 Nucleo |
| Kit Name | Low-Voltage BLDC motor driver expansion board |
Key Features
- Three-phase brushless DC motor driver suitable for BLDC and PMSM motors.
- Operates at selectable frequencies via firmware for flexible control.
- Incorporates overcurrent detection and protection up to 30 A peak.
- Features thermal monitoring and overheating protection to ensure reliability.
- Compatible with ST morpho connector allowing easy stacking with other STM32 Nucleo boards.
- Serves as an affordable evaluation platform for motor driver applications.
Product Description
STMicroelectronics X-NUCLEO-IHM08M1 is a low-voltage brushless DC motor driver expansion board designed specifically for the STM32 Nucleo development environment. This evaluation board is based on the STL220N6F7 STripFET™ F7 power MOSFET, providing efficient and reliable control of three-phase BLDC and PMSM motors. The driver board supports firmware-selectable operating frequencies, delivering flexibility in various motor control applications.
With built-in overcurrent detection and a 30 A peak current protection feature, the board ensures safe operation even under demanding load conditions. Additionally, thermal monitoring and overheat protection safeguard the device from damage due to excessive temperatures, increasing durability and system robustness.
Thanks to compatibility with the ST morpho connector, the X-NUCLEO-IHM08M1 can be conveniently stacked with other expansion boards, enabling the creation of versatile development kits tailored for robotics, automation, and embedded motor control projects.
This evaluation kit is ideal for engineers and developers seeking a cost-effective and easy-to-use motor driver solution to prototype and test their brushless DC motor applications, particularly those based on the STM32 Nucleo platform.
Three-phase brushless DC motor driver suitable for BLDC and PMSM motors. Selectable operating frequency programmed via firmware. Overcurrent detection with 30 A peak current protection. Thermal monitoring and overheat protection for enhanced reliability.
Compatible with ST morpho connector for easy integration with other Nucleo boards. Provides an affordable and user-friendly evaluation platform for motor control.
STMicroelectronics products are widely used in industrial, laboratory, electronics development, and embedded system applications. This expansion board complements the STM32 Nucleo ecosystem, enabling rapid prototyping and evaluation in motor control projects.
Discover more motor driver expansion boards and evaluation kits at EnvMart for industrial and development needs.
Explore more products in our Motor Driver Boards category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The X-NUCLEO-IHM08M1 can handle a peak current of up to 30 A.
This model is suitable for three-phase brushless DC motors (BLDC) and Permanent Magnet Synchronous Motors (PMSM).
The operating frequency is selectable via firmware, allowing for flexibility in motor control applications.
It includes overcurrent detection and thermal monitoring with overheating protection to ensure safe operation.
Yes, it is compatible with the ST morpho connector, allowing for easy stacking with other STM32 Nucleo boards.
The country of origin for this motor driver expansion board is India.
The featured device for the X-NUCLEO-IHM08M1 is the STM32 Nucleo.
This kit is classified as an evaluation board designed for motor driver applications.
The driver board is based on the STL220N6F7 STripFET™ F7 power MOSFET.
It is intended for use in robotics, automation, and embedded motor control projects.
Yes, the kit name is Low-Voltage BLDC motor driver expansion board.
It enhances reliability through features like thermal monitoring and overheat protection, safeguarding the device from damage due to excessive temperatures.
