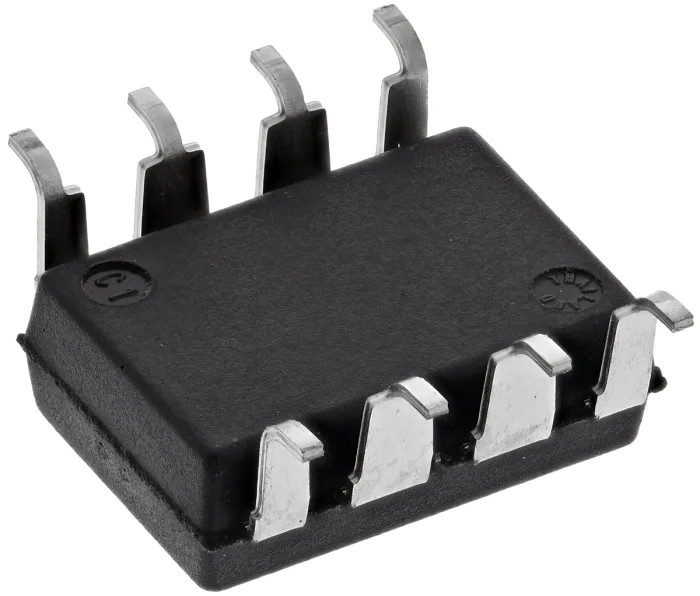

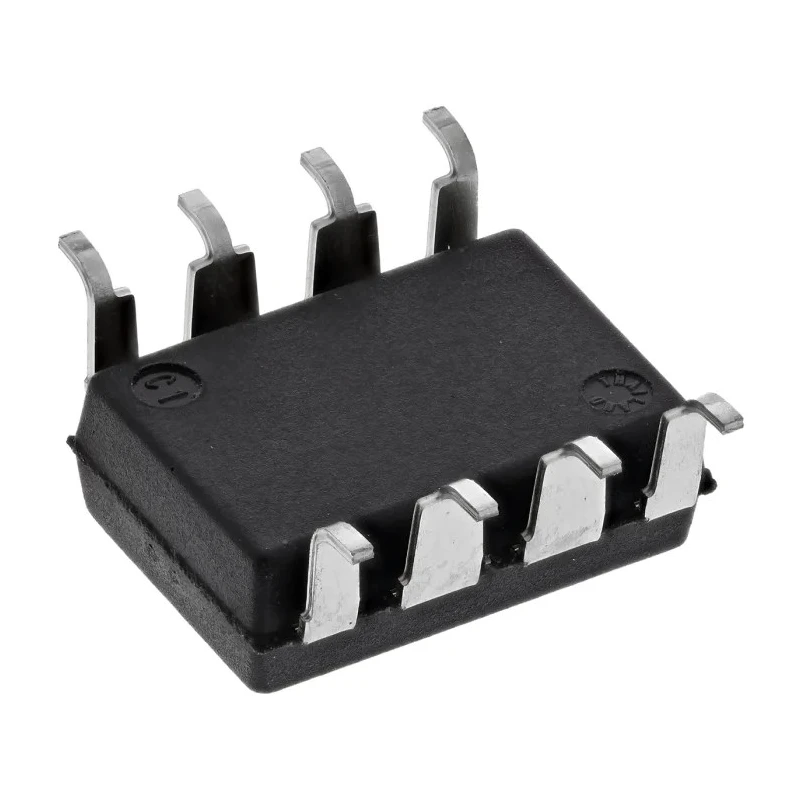

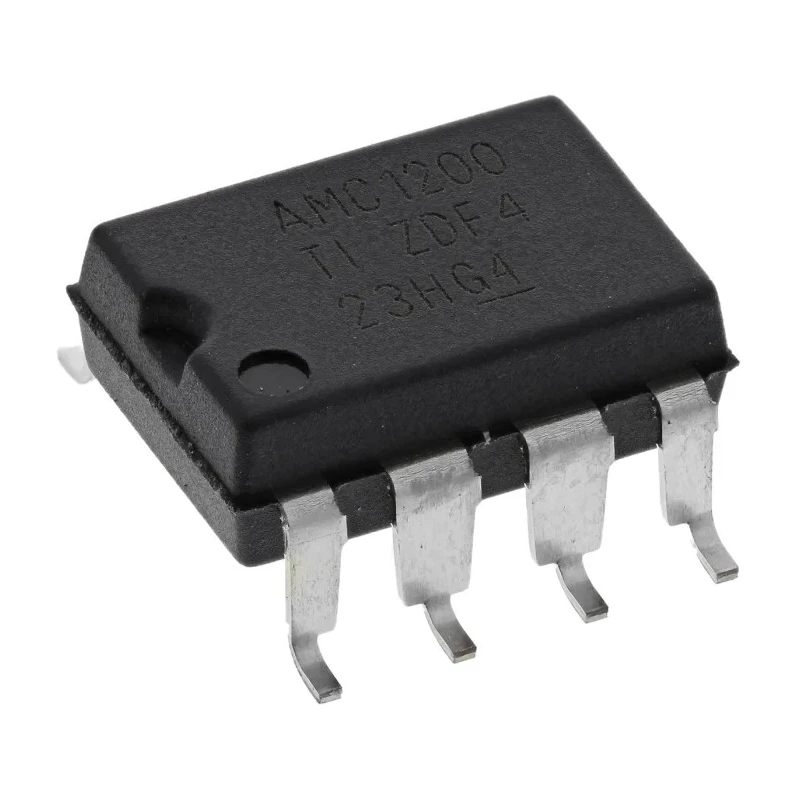

Texas Instruments Differential Amplifier, 8-Pin SOP Package, 5-6 V Supply, 1 Channel, 4250 V Isolation Voltage AMC1200SDUB
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 3.35mm |
| Length | 9.55mm |
| Model | AMC1200SDUB |
| Mount Type | Surface |
| Series | AMC1200 |
| Maximum Operating Temperature | 125°C |
| Package Type | SOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Pin Count | 8 |
| Maximum Supply Voltage | 6V |
| Isolation Voltage | 4250V |
| Minimum Supply Voltage | 5V |
| Vos - Input Offset Voltage | 1.5 mV |
| CMRR - Common Mode Rejection Ratio | 95dB |
Key Features
- Operates with a minimum supply voltage of 5 volts and maximum of 6 volts.
- Features a single channel to handle differential signals efficiently.
- Provides high isolation voltage of 4250 volts for safe operation in industrial environments.
- Has low input offset voltage of 1.5 millivolts for precise signal amplification.
- Common Mode Rejection Ratio (CMRR) of 95 decibels ensures strong noise rejection.
- Designed for surface mount with a compact SOP package and 8 pins.
- Operating temperature range from -40°C to 125°C supports harsh applications.
- Device dimensions of 9.55 mm length and 3.35 mm height enable compact PCB layouts.
Product Description
Texas Instruments AMC1200SDUB Differential Amplifier is an advanced isolation amplifier optimized for industrial, laboratory, and electronic applications requiring precise differential signal amplification with galvanic isolation.
This component features a surface mount 8-pin SOP package and supports a minimum supply voltage of 5 volts and a maximum of 6 volts to ensure stable operation with low power consumption.
With an isolation voltage rating of 4250 volts, it provides excellent protection between high-voltage circuits and sensitive electronics. The device offers a low input offset voltage of 1.5 mV combined with a common mode rejection ratio of 95 dB for high accuracy amplification in noisy environments.
The single-channel design allows efficient differential signal processing. Wide operating temperature range from -40°C to 125°C makes it suitable for high-reliability applications in automotive, industrial controls, and instrumentation.
Operates with supply voltage from 5 V to 6 V ensuring compatibility with common industrial power rails. 8-pin SOP package designed for streamlined surface mount assembly. High isolation voltage up to 4250 V increases reliability and safety in electronic circuits.
Low input offset voltage (1.5 mV) enables precise measurement and control. Superior common mode rejection ratio (95 dB) reduces noise and interference. Wide temperature range supports demanding environments (-40°C to +125°C).
Compact footprint reduces PCB space requirements.
This isolation amplifier series AMC1200 is widely used in industrial automation, medical equipment, signal conditioning, measurement systems, and embedded designs requiring electrical isolation and noise immunity.
Branded by Texas Instruments, a leader in semiconductor technology, this model AMC1200SDUB ensures quality and performance for sophisticated electronic designs. Explore the Electronics & Electricals category at EnvMart for Texas Instruments amplifiers and complementary semiconductor components suitable for your project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with a minimum supply voltage of 5 volts and a maximum of 6 volts.
It features a high isolation voltage of 4250 volts, providing excellent protection between high-voltage circuits and sensitive electronics.
The input offset voltage is 1.5 millivolts, which allows for precise signal amplification.
The CMRR is 95 decibels, ensuring strong noise rejection in noisy environments.
This differential amplifier has a length of 9.55 mm and a height of 3.35 mm, making it suitable for compact PCB layouts.
It supports an operating temperature range from -40°C to 125°C, suitable for harsh applications.
This model is designed with a single channel to handle differential signals efficiently.
It comes in an 8-pin SOP (Small Outline Package) designed for surface mount assembly.
This isolation amplifier is widely used in industrial automation, medical equipment, signal conditioning, and measurement systems.
It is part of the AMC1200 series, which is optimized for precise differential signal amplification with galvanic isolation.
The mount type for this model is surface mount, facilitating streamlined assembly on PCBs.
The country of origin for this product is India.
