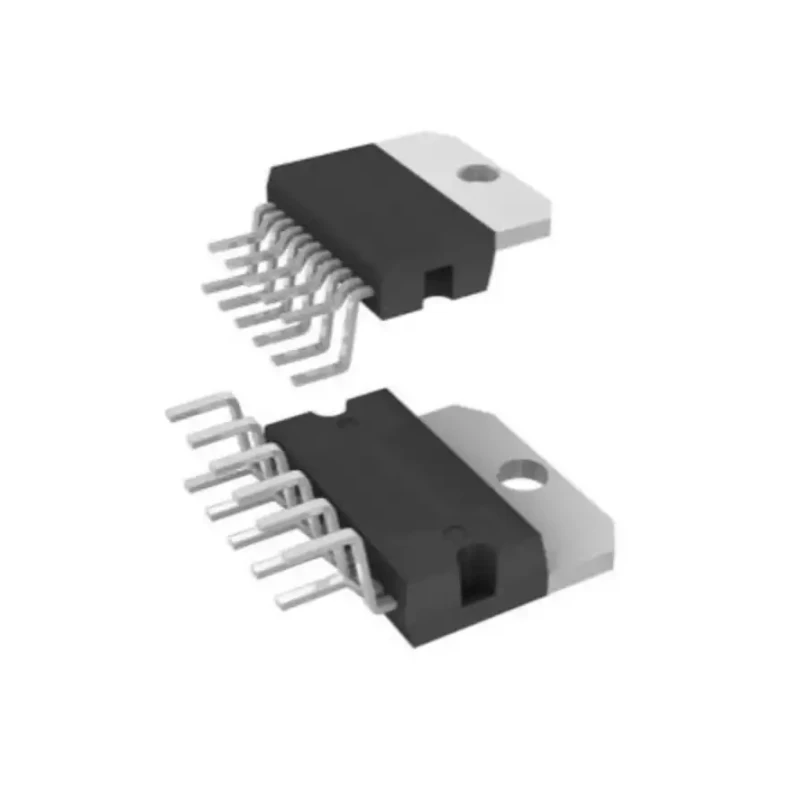

STMicroelectronics 2-Channel Power Amplifier Audio Amplifier IC 37W Multiwatt 15-Pin TDA7376B
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 10.7mm |
| Length | 19.6mm |
| Model | TDA7376B |
| Width | 5mm |
| Output Power | 37W |
| Mount Type | Through Hole |
| Series | TDA7376B |
| Maximum Operating Temperature | 105°C |
| Package Type | Multiwatt |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Pin Count | 15 |
| Automotive Standard | AEC-Q100 |
| Minimum Supply Voltage | 18V |
| Amplifier Type | Power Amplifier |
| Amplifier Class | Class A-B |
| GBP - Gain Bandwidth Product | 75kHz |
Key Features
- This amplifier features Class A-B operation for efficient audio amplification.
- It supports through-hole mounting suitable for reliable PCB assembly.
- The device includes internal fixed gain of 26 dB for optimized performance.
- Mute function is CMOS compatible for convenient control applications.
- Automute function protects the amplifier during minimum supply voltage detection.
- The amplifier has wide operating temperature range from -40°C to 105°C.
- It complies with automotive standard AEC-Q100 ensuring high reliability.
- Compact Multiwatt package dimensions are 19.6mm length, 10.7mm height, and 5mm width.
Product Description
STMicroelectronics TDA7376B is a 2-channel power audio amplifier IC designed for car radio applications. Packaged in a durable Multiwatt 15-pin through-hole configuration, it delivers a maximum output power of 37W with Class A-B amplifier operation. This device efficiently amplifies audio signals with internal fixed gain of 26 dB.
The amplifier incorporates a fully complementary PNP/NPN output stage enabling rail-to-rail voltage swing without the need for bootstrap capacitors. This design enhances performance and reduces external component count.
Equipped with mute functionality compatible with CMOS logic and an automute feature that activates at minimum supply voltage detection, the device ensures convenient control and protection under low voltage conditions.
The TDA7376B supports wide supply voltage at 18V and is rated for operation within -40°C to 105°C, making it suitable for automotive environments. It complies with automotive standard AEC-Q100, reflecting its robustness and reliability requirements for vehicular systems.
This amplifier features differential input pairs that accept either single-ended or differential signals, providing high noise immunity essential for high-fidelity audio applications in car radios and boosters. The compact Multiwatt package measures 19.6 mm in length, 10.7 mm in height, and 5 mm in width.
This product is widely used in automotive audio amplification, consumer electronics, and other industrial audio equipment requiring reliable dual-channel power amplification. Package contains one Multiwatt 15-pin power amplifier IC ready for through-hole PCB mounting.
The internal design minimizes external component requirements, simplifying PCB layout and reducing costs.
Choose STMicroelectronics TDA7376B for high-performance, reliable, and efficient dual-channel audio amplification solutions in demanding automotive audio systems. Explore the comprehensive catalog of semiconductor Amplifiers at EnvMart for compatible parts and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TDA7376B amplifier delivers a maximum output power of 37W.
This model operates within a temperature range of -40°C to 105°C, making it suitable for automotive environments.
It features an internal fixed gain of 26 dB for optimized performance.
The amplifier supports through-hole mounting, which is suitable for reliable PCB assembly.
This amplifier is a 2-channel power amplifier, designed for audio applications.
It comes in a Multiwatt 15-pin package configuration.
This amplifier complies with the automotive standard AEC-Q100, ensuring high reliability.
The minimum supply voltage required for this amplifier is 18V.
It operates as a Class A-B amplifier, which is efficient for audio amplification.
The dimensions of this model are 10.7 mm in height and 5 mm in width.
It includes an automute function that activates during minimum supply voltage detection to protect the amplifier.
This amplifier accepts either single-ended or differential signals, providing high noise immunity for audio applications.
