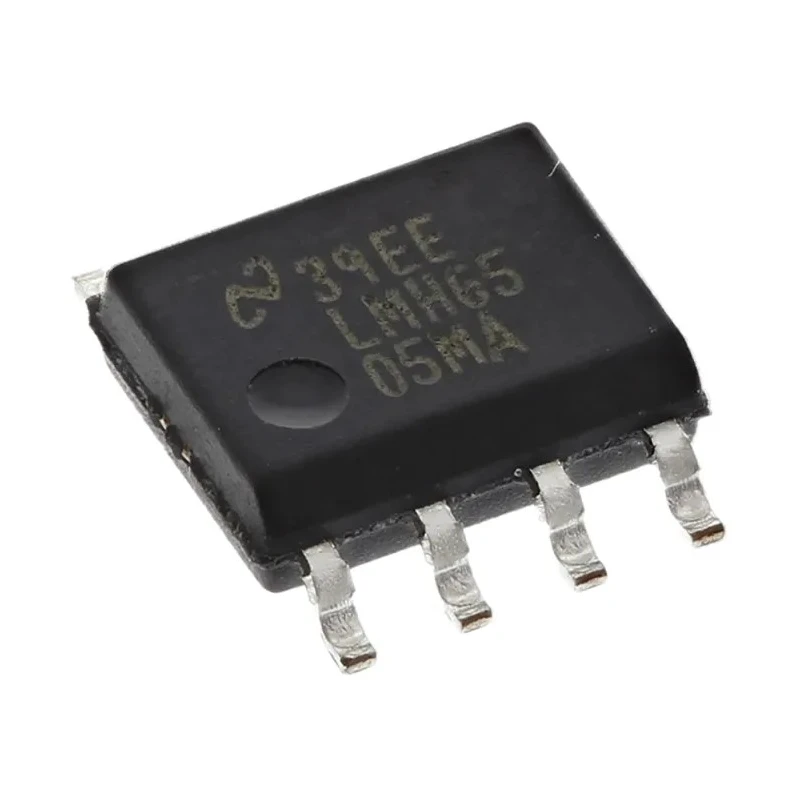

Texas Instruments Controlled Voltage Amplifier 12V 8-Pin SOIC LMH6505MA/NOPB
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.45mm |
| Length | 4.9mm |
| Model | LMH6505MA/NOPB |
| Width | 3.9mm |
| Mount Type | Surface |
| Series | LMH6505 |
| Output Current | 80mA |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Pin Count | 8 |
| Maximum Supply Voltage | 12V |
| Minimum Supply Voltage | 9V |
| Supply Current | 14mA |
Key Features
- This controlled voltage amplifier operates with a minimum supply voltage of 9V and a maximum of 12V.
- It features a single channel with an output current capability of 80mA.
- The device comes in a surface mount SOIC package with 8 pins for easy PCB integration.
- Operating temperature ranges from -40°C to 85°C, ensuring reliability in various environments.
- Its compact physical dimensions measure 4.9mm in length, 3.9mm in width, and 1.45mm in height.
- The amplifier has a supply current of 14mA, optimizing power efficiency.
- Ideal for use in audio level compression, synthesizers, and amplitude modulation circuits.
- Designed as a variable gain amplifier to provide gain variation controlled by an input voltage.
Product Description
Texas Instruments LMH6505MA/NOPB is a controlled voltage amplifier housed in an 8-pin SOIC surface mount package, designed to operate with supply voltages ranging from 9V to 12V and a supply current of 14mA. This variable gain amplifier provides a high output current up to 80mA making it suitable for precision amplification tasks.
The device offers reliable performance across a wide temperature range from -40°C to 85°C, which makes it well suited for use in harsh and varied operating environments in industrial and electronic equipment.
It is a specialized amplifier that varies its gain depending on the control voltage input, making it ideal for dynamic signal processing applications including audio level compression, synthesizers, and amplitude modulation circuits.
The compact form factor of 4.9mm length, 3.9mm width, and 1.45mm height facilitates easy mounting on printed circuit boards using standard surface mount technology. This controlled voltage amplifier operates with minimum and maximum supply voltages of 9V and 12V respectively.
It features a single channel and an output current capability of 80mA with a supply current of only 14mA. The SOIC package type and 8-pin count support efficient PCB integration and assembly. Operating temperature range from -40°C to 85°C ensures robust performance across environmental extremes.
The device series is LMH6505, providing a proven design from Texas Instruments. The part does not meet automotive standard requirements but is ideal for various industrial and audio electronics use cases. The LMH6505MA/NOPB is widely used in electronic design and manufacturing for applications requiring electronically controlled gain in amplification circuits.
Explore more voltage controlled Amplifiers and semiconductor amplifier solutions on EnvMart for industrial, laboratory, and commercial electronics assembly needs.
