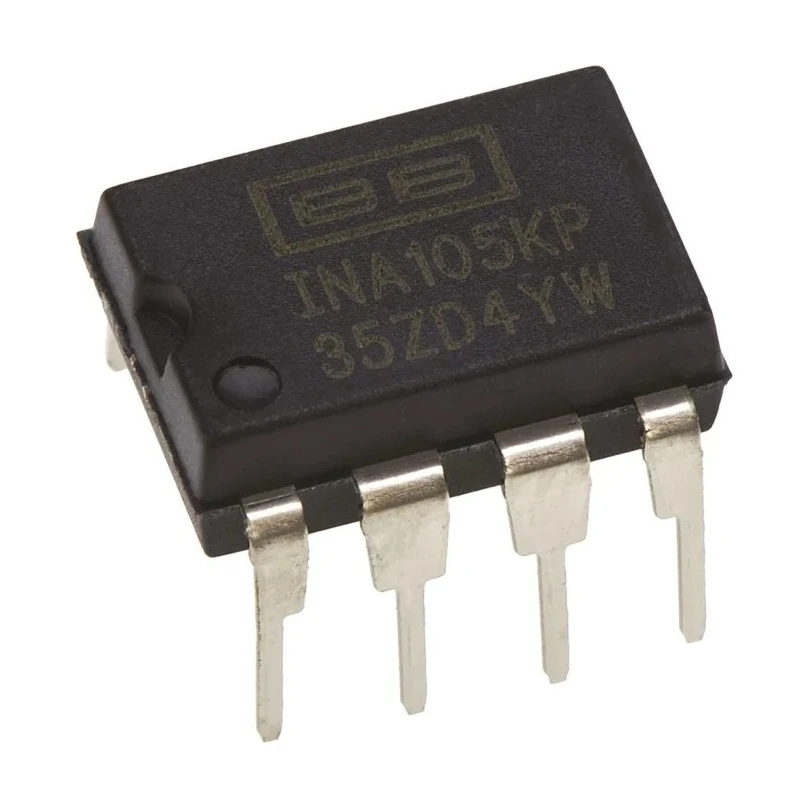

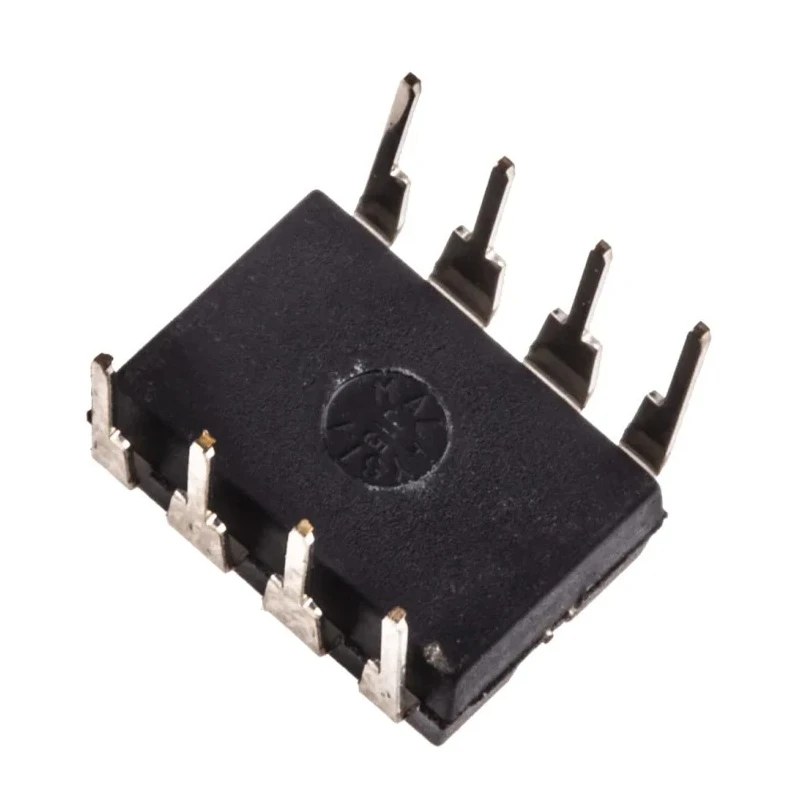

Texas Instruments Differential Amplifier 1 MHz 8-Pin PDIP INA105KP

The Texas Instruments INA105KP Differential Amplifier is a high-precision operational amplifier designed for applications requiring accurate amplification of differential signals while rejecting unwanted common-mode signals. This model features a 1 MHz gain bandwidth product, making it suitable for high-speed and high-precision measurement and control systems in industrial, laboratory, and instrumentation environments.

Housed in a compact 8-pin PDIP (Plastic Dual In-line Package), the INA105KP can be easily mounted through-hole onto PCBs, allowing for straightforward integration into a wide range of electronic designs. Its minimum supply voltage of 5 V and maximum supply voltage of 18 V ensure flexibility for use in both low- and high-voltage systems, while the low input offset voltage of 0.5 mV ensures accuracy in sensitive measurement circuits. The device is characterized by a 72 dB common mode rejection ratio (CMRR), guaranteeing that common-mode noise is efficiently rejected, thereby maintaining signal integrity in electrically noisy environments.

With a typical slew rate of 3 V/μs, the amplifier responds quickly to input changes, making it advantageous for applications where fast transient response is required. The single channel configuration with a standard 8-pin count and integrated on-chip resistors helps minimize board space while ensuring reliable differential gain settings. Its operating temperature range from -40°C to 85°C enables deployment in demanding industrial and laboratory settings.

This amplifier is part of Texas Instruments' INA105 series, known for combining low DC offset and drift with high open-loop gain and low noise, making it especially well-suited for test and measurement equipment and precise data acquisition systems. Typical use cases include signal conditioning for process control, precision sensor reading, current shunt measurements, and analog front-end circuits in industrial automation, laboratory instrumentation, and communication systems.

The device is RoHS compliant, aligning with environmental and safety standards required in contemporary electronic assemblies. Combined supply current of only 2 mA helps conserve energy in battery-powered or energy-sensitive systems. The PDIP form factor provides mechanical robustness and is well-suited for prototyping and repairable electronic designs.

Engineers and designers looking for a reliable component to isolate and amplify differential voltages in noisy environments will appreciate the INA105KP's comprehensive features. Browse EnvMart for more Texas Instruments products and a complete range of Differential Amplifiers for your electronic design needs.
