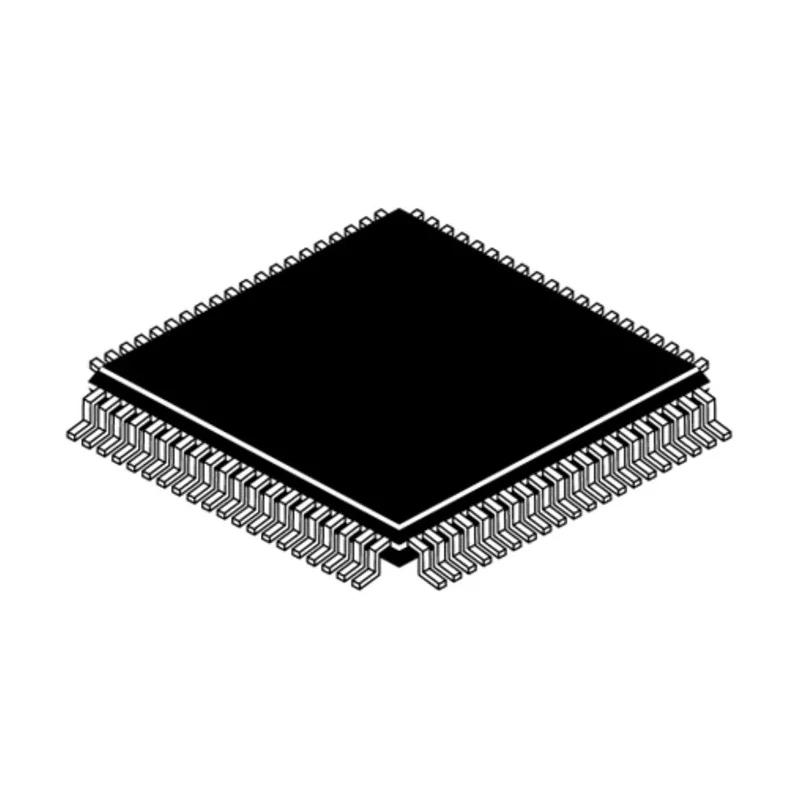

Texas Instruments 3.6 V Differential Cable Transceiver 80-Pin HTQFP TSB41AB3PFP

Texas Instruments TSB41AB3PFP is a 3.6 V differential cable transceiver designed with an 80-pin HTQFP package, offering a high-performance solution for cable-based data transmission in various industrial and electronic systems.

This cable transceiver supports a maximum data rate of 400 Mbps, making it suitable for applications that demand high-speed data communication. It features one differential transmitter and one differential receiver, which ensures efficient and reliable signal transmission and reception.

With a surface mount design in an HTQFP package type, the product is compatible with modern PCB assembly techniques, facilitating integration in compact devices. Its operating temperature range from 0°C to 70°C allows it to function reliably in standard industrial environments.

The transceiver complies with IEEE interface standards, enhancing its compatibility with a range of industrial and commercial communication protocols. It operates on a single power supply with voltages ranging from 3 V minimum to 3.6 V maximum, catering to low voltage system requirements.

Physically, the transceiver has compact dimensions characterized by a height of 1 mm and a length of 12 mm, supporting space-efficient electronic design. Although it does not specify automotive standard compliance, it is geared toward general electronic component and semiconductor applications.

Typical use cases include industrial automation, data networking, and electronic instrumentation where robust differential signaling over cable connections is critical. This component supports designers and engineers in creating efficient and reliable data communication pathways within their electronic systems.

Set includes one Texas Instruments TSB41AB3PFP cable transceiver packaged for ready insertion into manufacturing processes, enhancing productivity and quality assurance. Explore more industry-relevant semiconductor components and cable transceivers in the Electronics & Electricals category at EnvMart.

Supports maximum data rate of 400 Mbps for efficient signal transmission. Equipped with one differential transmitter and one differential receiver. Designed for surface mount applications with HTQFP package type. Operates within temperature range of 0°C to 70°C for reliable performance.

Complies with IEEE interface standards ensuring compatibility with industrial protocols. Single power supply operation with dual supply voltage of 3 V to 3.6 V. Compact dimensions with a height of 1 mm and length of 12 mm.

Automotive standard compliance is not specified. Designed for industrial and electronic component applications requiring robust Cable Transceivers.
