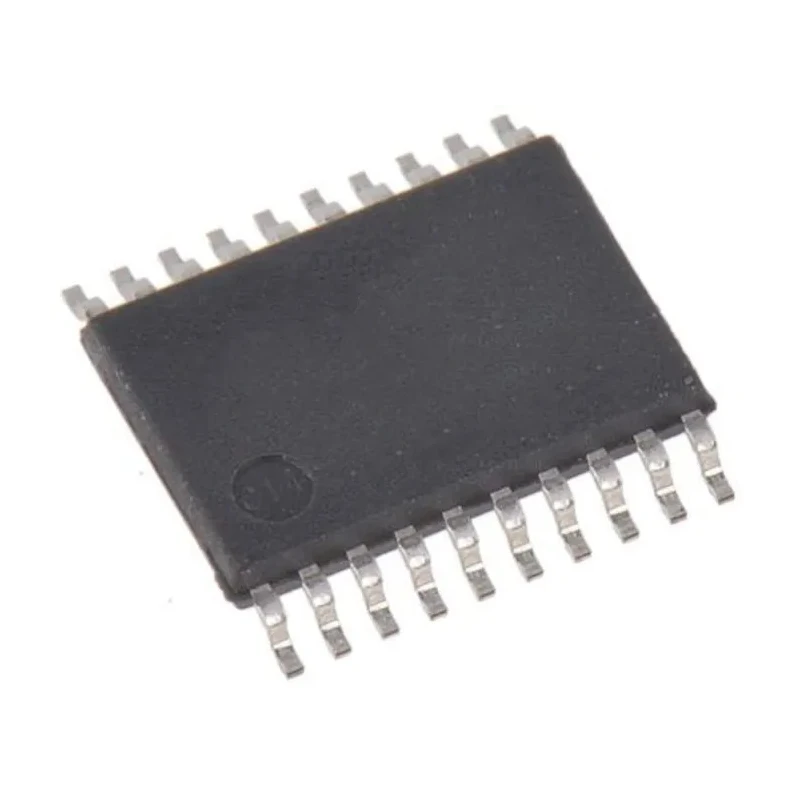

Maxim Integrated Voltage Level Translator 8 Element Bi-Directional 20-Pin TSSOP MAX3004EUP+

Maxim Integrated MAX3004EUP+ is a high-performance voltage level translator featuring 8 elements with bi-directional translation capability. Packaged in a compact 20-pin TSSOP suitable for surface mounting, this device uses BiCMOS technology to ensure low power consumption and reliable switching.

It operates within a voltage supply range of 1.65V to 5.5V and supports a maximum propagation delay time of 1000ns at capacitive load. The device's quiescent current is exceptionally low, less than 10µA, making it ideal for battery-powered and portable applications.

This level translator accommodates operating temperatures from -40°C to 85°C, ensuring robust performance in industrial and telecommunications environments. Its 3-state outputs and maximum low-level output current of 2µA allow flexible integration in various circuit designs.

Key applications include cell phone cradles, global positioning systems (GPS), low-cost serial interfaces, portable point-of-sale (POS) systems, smart card readers, and other portable communication devices. The 6.6mm length and 750µm height of the package contribute to efficient PCB real estate usage.

The MAX3004 series offers unidirectional level translation, with this model focusing specifically on producing accurate and low-power level shifting without the need for directional pins.

Features BiCMOS logic family for efficient performance. Operates with a minimum supply voltage of 1.65V and maximum of 5.5V. Supports bi-directional level translation without using a directional pin. Has maximum propagation delay time of 1000ns at capacitive load.

Includes ultra-low supply current with under 10µA quiescent consumption. Operates reliably in temperature range from -40°C to 85°C. 20-pin TSSOP surface mount package with pin count suitable for compact PCB designs. Ideal for telecommunications, portable communication devices, and serial interface applications.

Maximum low level output current of 2µA and 3-state output type. Length of 6.6mm and height of 750µm enabling space efficient layouts.

This product is designed for industrial, telecommunications, manufacturing, and electronic instrumentation sectors that require accurate level translation in compact form factors. Maxim Integrated provides tested compliance and robust solutions for high-speed data communication and portable device integration.
