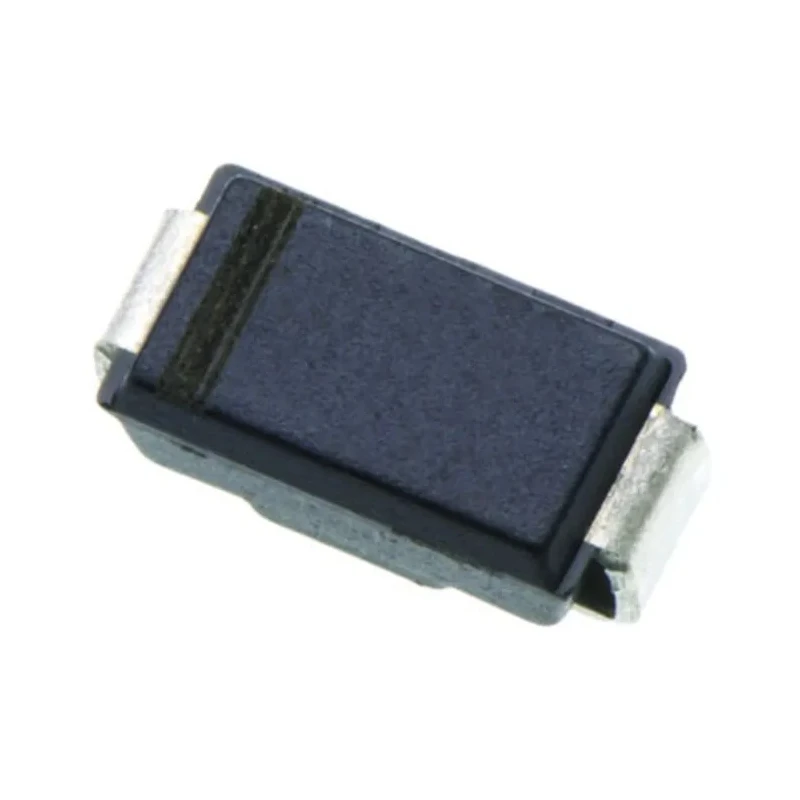

Vishay Avalanche Rectifier Diode 1300 V 1 A Surface Mount DO-214AC BYG23T-M3/TR
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 2.29mm |
| Length | 4.5mm |
| Model | BYG23T-M3/TR |
| Width | 2.79mm |
| Mount Type | Surface |
| Series | BYG23T |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AC |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 1300V |
| Diode Configuration | Single |
| Rectifier Type | Avalanche |
| Peak Reverse Current Ir | 50μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 18A |
| Maximum Forward Voltage Vf | 1.65V |
| Peak Reverse Recovery Time trr | 75ns |
Key Features
- This diode features a maximum continuous forward current of 1 ampere.
- Peak reverse repetitive voltage rating of 1300 volts ensures reliable blocking capability.
- Constructed in a compact DO-214AC surface mount package with 2 pins for easy PCB integration.
- It supports peak non-repetitive forward surge currents up to 18 amperes for transient conditions.
- Low maximum forward voltage of 1.65 volts provides efficient conduction.
- Fast peak reverse recovery time of 75 nanoseconds enhances switching performance.
- Operational temperature ranges from -55°C to 150°C for demanding environments.
- The diode complies with automotive standard AEC-Q101, suitable for automotive applications.
Product Description
Vishay BYG23T-M3/TR Avalanche Rectifier Diode is a high-performance discrete semiconductor device engineered for high frequency and fast switching applications. It is designed to handle a continuous forward current of 1 ampere and can withstand a peak reverse repetitive voltage of 1300 volts, making it suitable for power supply regulation and protection circuits.
Its ultrafast recovery properties are characterized by a peak reverse recovery time of just 75 nanoseconds, reducing switching losses in circuits like switched mode power supplies (SMPS), inverters, and freewheeling diode applications.
The diode uses a compact DO-214AC surface mount package, featuring two pins for straightforward PCB mounting and assembly efficiency in automated production environments.
Operating reliably across a broad temperature range from -55°C to 150°C, this diode maintains its electrical characteristics under harsh conditions, including automotive applications backed by the AEC-Q101 standard.
Key electrical characteristics include a maximum forward voltage of 1.65 volts and a peak non-repetitive forward surge current rating of up to 18 amperes, ensuring robust transient handling capability.
This diode features a maximum continuous forward current of 1 ampere. Peak reverse repetitive voltage rating of 1300 volts for reliable blocking. Compact surface mount DO-214AC package with 2-pin configuration. Peak non-repetitive forward surge current of 18 amperes for transient overloads.
Low forward voltage of 1.65 volts for efficient conduction. Fast peak reverse recovery time of 75 nanoseconds for high-frequency circuits. Wide operating temperature range from -55°C to 150°C. Automotive grade with AEC-Q101 certification.
Dimensions: Length 4.5 mm, Width 2.79 mm, Height 2.29 mm.
This semiconductor diode is extensively used in industrial, automotive, and electronic manufacturing sectors, ideal for designs requiring high-speed, high-voltage rectification and switching functions. Its robustness and industry approvals make it a reliable choice for both prototyping and mass production in harsh operating environments.
Explore more Vishay semiconductor components and Avalanche Diodes on EnvMart to meet demanding design requirements and quality standards.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this diode is 1 ampere.
This model has a peak reverse repetitive voltage rating of 1300 volts.
It comes in a DO-214AC surface mount package with a 2-pin configuration.
The maximum forward voltage of this diode is 1.65 volts.
It supports a peak non-repetitive forward surge current of up to 18 amperes.
The peak reverse recovery time is 75 nanoseconds.
The operational temperature range is from -55°C to 150°C.
This diode complies with the AEC-Q101 automotive standard.
The dimensions are 4.5 mm in length, 2.79 mm in width, and 2.29 mm in height.
It is suitable for power supply regulation and protection circuits, as well as high-frequency and fast switching applications.
This diode is classified as an avalanche rectifier.
The peak reverse current rating is 50 microamperes (μA).
