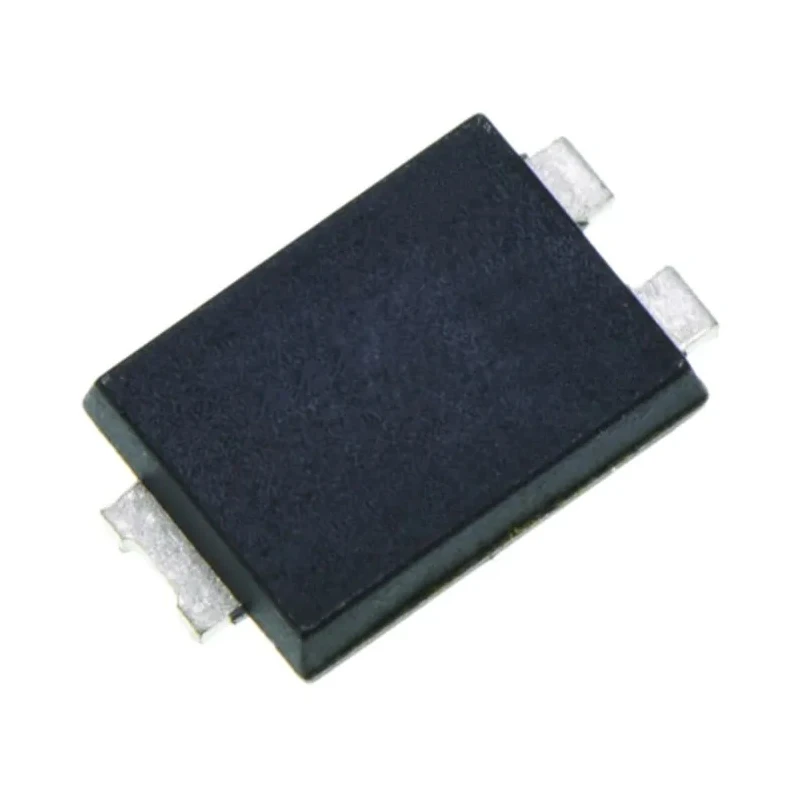

DiodesZetex 60 V 20 A Avalanche Diode 3-Pin PowerDI5 SBRT20M60SP5-7
Specifications
| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Height | 1.1mm |
| Length | 5.45mm |
| Model | SBRT20M60SP5-7 |
| Width | 4.05mm |
| Mount Type | Surface |
| Series | 20A TrenchSBR |
| Maximum Operating Temperature | 150°C |
| Package Type | PowerDI5 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | FBI |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 20A |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Single |
| Rectifier Type | Avalanche |
| Peak Reverse Current Ir | 45mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 320A |
| Maximum Forward Voltage Vf | 570mV |
Key Features
- This diode features a maximum continuous forward current of 20 A.
- Its peak reverse repetitive voltage is rated at 60 V for robust operation.
- Designed as a single diode with 3 pins in a PowerDI5 surface mount package.
- It supports a peak non-repetitive forward surge current up to 320 A.
- The device operates reliably within a temperature range from -55°C to 150°C.
- Maximum forward voltage is 570 mV, ensuring efficient conduction.
- Peak reverse current is only 45 mA, minimizing leakage.
- This diode conforms to Automotive Standard AEC-Q101 for quality assurance.
Product Description
DiodesZetex SBRT20M60SP5-7 is a high-performance Avalanche Diode designed for electronic applications requiring reliable rectification and surge handling. This discrete semiconductor features a robust PowerDI5 surface mount package with three pins for efficient PCB integration.
The diode supports a maximum continuous forward current of 20 A and a peak reverse repetitive voltage of 60 V, suitable for power rectification roles in automotive, industrial, and consumer electronics. Its maximum forward voltage drop of 570 mV ensures low conduction losses, enhancing device efficiency.
Engineered for durability, the diode operates across a wide temperature range from -55°C to 150°C, making it viable for harsh environments and automotive applications adhering to the AEC-Q101 standard. The device also withstands peak non-repetitive forward surge currents up to 320 A, providing transient protection against power spikes.
Its compact dimensions (5.45 mm length, 4.05 mm width, 1.1 mm height) facilitate integration in tight PCB layouts. The low peak reverse current of 45 mA minimizes leakage, improving overall circuit reliability.
This SBRT (Super Barrier Rectifier Trench) diode combines speed, efficiency, and rugged design for applications in semiconductor discrete components, power connectors, and related electronics assembly.
Maximum continuous forward current: 20 A. Peak reverse repetitive voltage: 60 V. 3-pin PowerDI5 surface mount package. Wide operating temperature: -55°C to 150°C. Peak non-repetitive forward surge current: 320 A. Maximum forward voltage: 570 mV.
Peak reverse current: 45 mA. Automotive standard AEC-Q101 compliant. Compact dimensions: 5.45 x 4.05 x 1.1 mm.
This product is ideal for industrial, automotive, and power electronics applications. Explore more from DiodesZetex and similar semiconductor components in the EnvMart catalog to suit your electronic design requirements.
