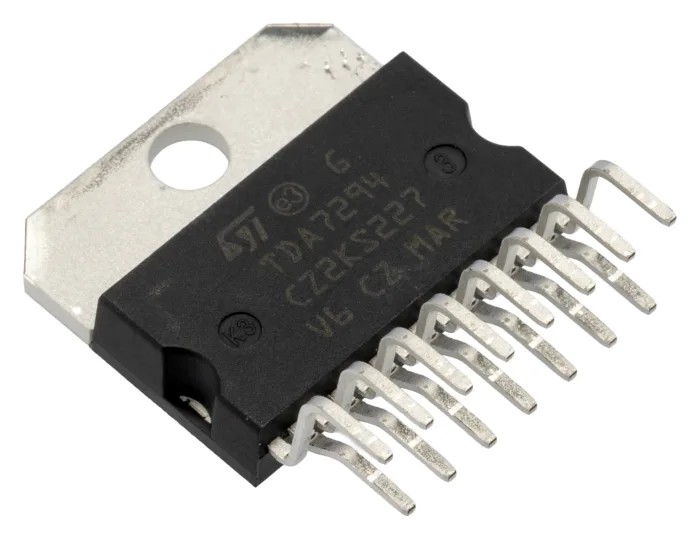

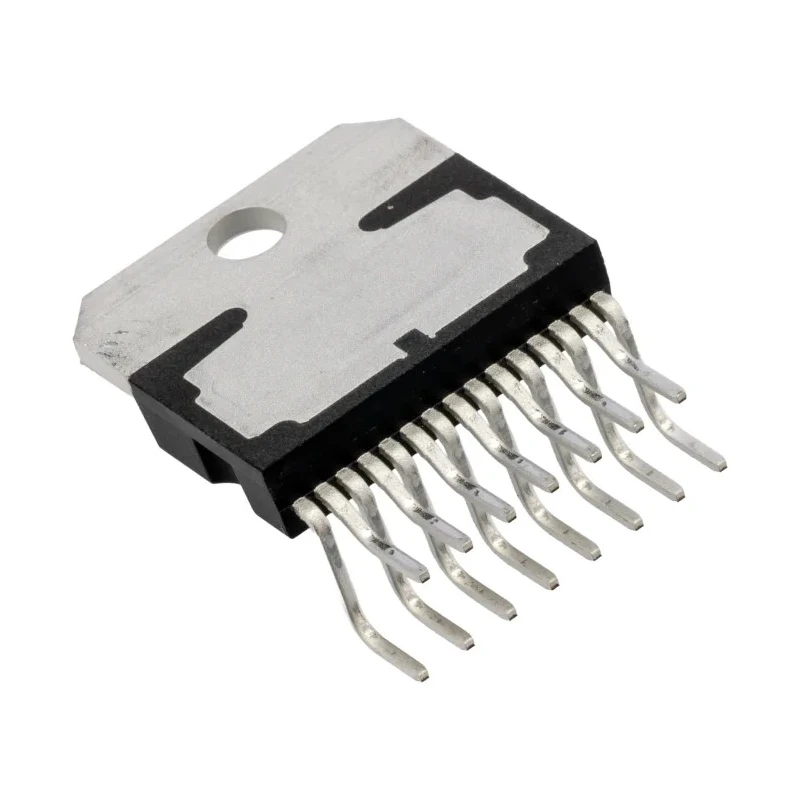

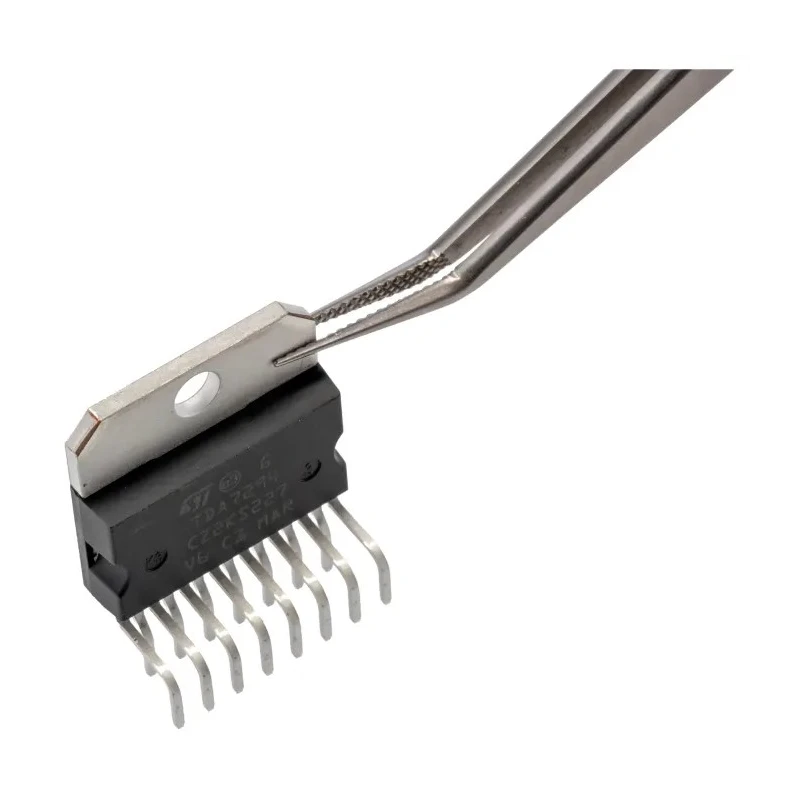

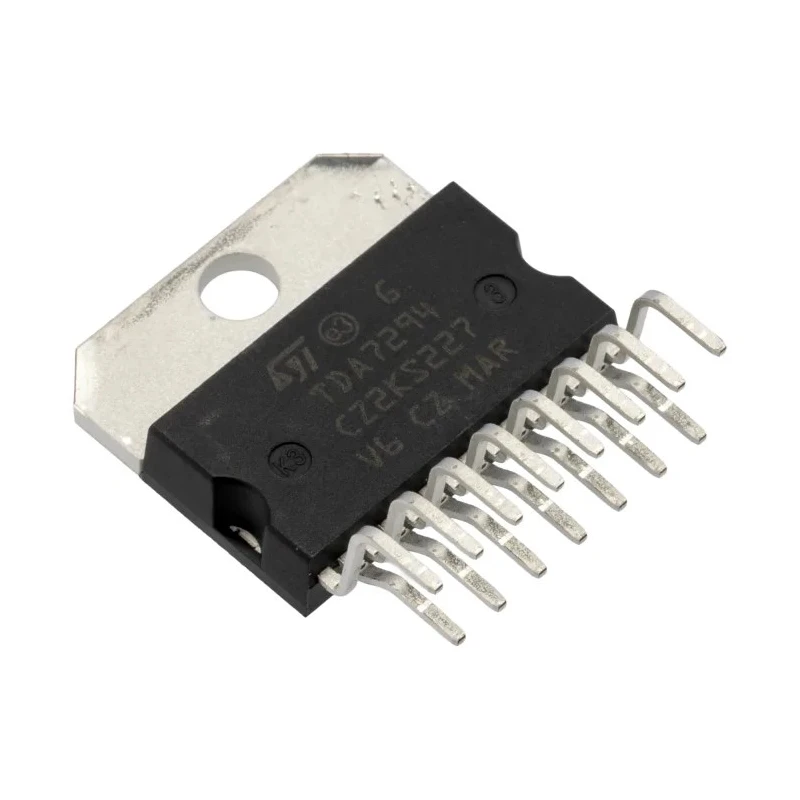

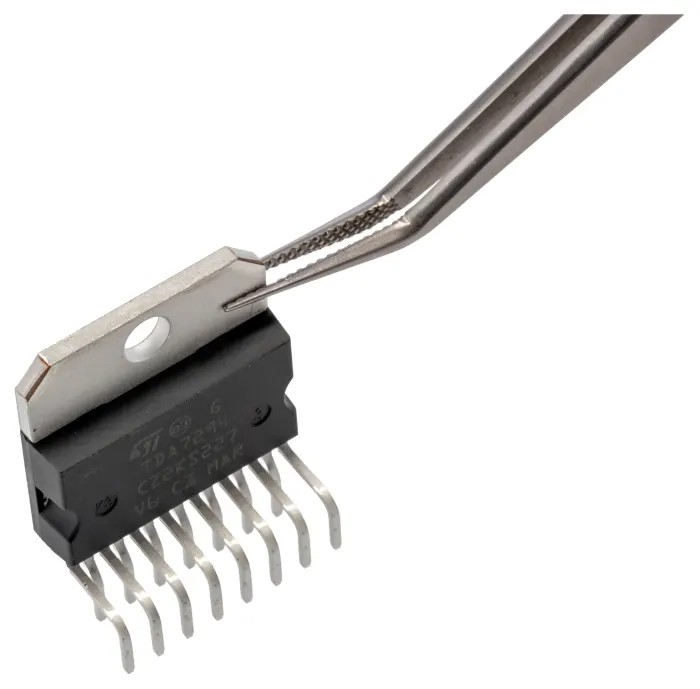

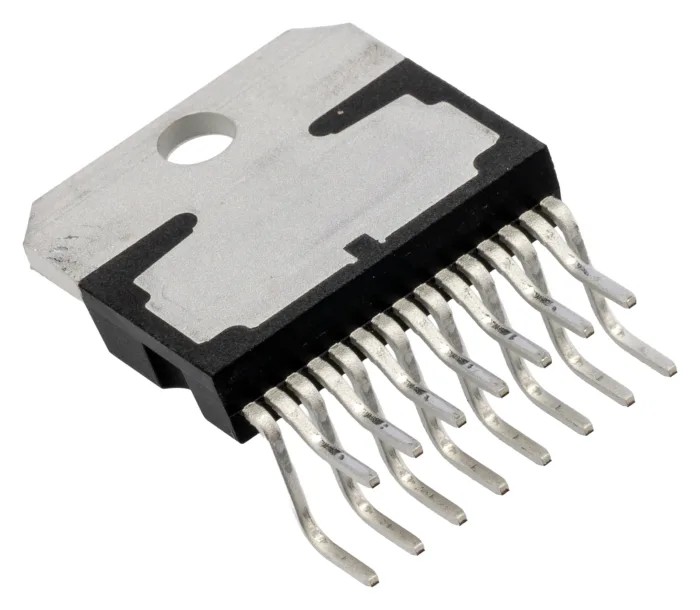

STMicroelectronics Audio Power Amplifier, Class A-B, Through Hole, Single Channel, 15-Pin Multiwatt Package, 100W TDA7294V
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 10.7mm |
| Length | 19.6mm |
| Model | TDA7294V |
| Width | 5mm |
| Output Power | 100W |
| Mount Type | Through Hole |
| Series | TDA7294 |
| Maximum Operating Temperature | 70°C |
| Package Type | Multiwatt |
| Minimum Operating Temperature | 0°C |
| Number Of Channels | 1 |
| Pin Count | 15 |
| Maximum Supply Voltage | 40V |
| Minimum Supply Voltage | 10V |
| Amplifier Type | Audio Power Amplifier |
| Amplifier Class | Class A-B |
Key Features
- The amplifier features a 15-pin Multiwatt through-hole package.
- It operates within supply voltages ranging from 10V to 40V.
- Designed for speaker applications with Class A-B audio amplification.
- Thermal and mechanical specifications include 10.7mm height, 19.6mm length, and 5mm width.
- The device supports operation from 0°C to a maximum operating temperature of 70°C.
- It does not conform to automotive standards and has no specific industry approvals.
- The amplifier is suitable for mono, stereo, and multi-channel audio amplification solutions.
Product Description
STMicroelectronics TDA7294V audio power amplifier is a high-performance Class A-B amplifier intended for audio signal amplification in single-channel speaker applications. It is housed in a 15-pin Multiwatt through-hole package that facilitates easy mounting and integration into electronic circuits.
The amplifier supports a wide range of supply voltages between 10V and 40V, allowing versatility in power source configurations. It is capable of delivering an output power of up to 100W, making it suitable for various audio amplification needs including mono, stereo, and multi-channel systems.
Mechanically, the device measures 19.6mm in length, 10.7mm in height, and 5mm in width, allowing compact assembly on PCBs. It is designed to operate safely within a minimum temperature of 0°C and maximum temperature of 70°C, ensuring reliability in standard operating environments.
The TDA7294V series does not carry automotive certifications or other formal approvals but is widely adopted in audio electronic components for both industrial and commercial applications. It excels in home audio systems, electronic component design, and power amplifier circuit development.
The amplifier features a 15-pin Multiwatt package for through-hole mounting. It delivers 100W output power using Class A-B amplifier technology. The device operates from 10V up to 40V supply voltage. Dimensions support compact PCB integration: 19.6mm x 10.7mm x 5mm.
Operating temperature range of 0°C to 70°C ensures device safety and performance. Single-channel operation suitable for mono or multi-channel audio configurations. No automotive certifications but designed for general electronic audio applications.
This audio power amplifier is ideal for use in industrial, consumer electronics, and audio processing equipment. It supports efficient audio amplification with reliable performance. For more high-quality Amplifiers and electronic components, explore the comprehensive STMicroelectronics catalog at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This audio power amplifier delivers an output power of up to 100W, making it suitable for various audio amplification needs.
It operates within a supply voltage range of 10V to 40V, allowing versatility in power source configurations.
The amplifier measures 19.6mm in length, 10.7mm in height, and 5mm in width, supporting compact assembly on PCBs.
This model is designed to operate safely within a temperature range of 0°C to 70°C, ensuring reliability in standard environments.
It supports single-channel operation, making it suitable for mono, stereo, and multi-channel audio configurations.
The TDA7294V features a 15-pin Multiwatt package for through-hole mounting, facilitating easy integration into electronic circuits.
No, this amplifier does not conform to automotive standards and lacks specific industry approvals for such use.
It is a Class A-B audio power amplifier, designed for efficient audio signal amplification in speaker applications.
The TDA7294V amplifier is manufactured in India.
It is suitable for use in industrial, consumer electronics, and audio processing equipment for various audio amplification needs.
This model has a pin count of 15, which is standard for its Multiwatt package configuration.
The Class A-B design allows for efficient audio amplification, balancing performance and power consumption effectively.
