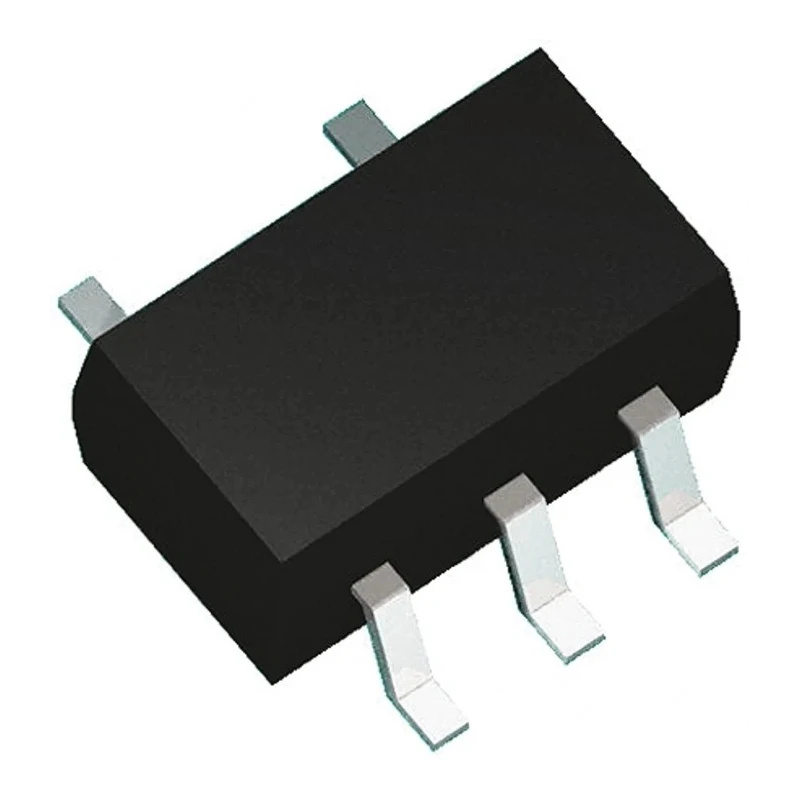

onsemi 250MHz Surface EMI Filter with ESD Protection Surface Mount NZF220DFT

onsemi NZF220DFT Surface EMI Filter is a highly reliable electronic component designed for industrial and commercial power line EMI filtering applications. With a surface mount termination style, this filter is suitable for automated PCB assembly lines and compact electronic designs. Its operating frequency of 250MHz and capacitance of 11pF make it ideal for suppressing electromagnetic interference and transient voltages in complex electronic systems.

This filter operates effectively in a wide temperature range from -40°C to 85°C, ensuring stable performance across various industrial environments ranging from HVAC control systems to power supply units. The low leakage current of 100nA reduces power consumption and enhances efficiency during long-term operation.

Due to its small size - measuring 2.2mm in length and 1mm in depth - the NZF220DFT is perfectly suited for space-constrained electronic assemblies in laboratory equipment, manufacturing instruments, and communication devices. The 100mΩ resistance supports signal integrity while providing effective EMI suppression.

The product is delivered in tape and reel packaging format, facilitating easy handling and insertion for automated equipment, boosting production efficiency in high-volume manufacturing environments.

Onsemi’s NZF220DFT complies with RoHS environmental standards, reflecting its suitability for environmentally responsible electronics manufacturing. This EMI filter also features onboard transient voltage suppression, providing additional protection to sensitive electronics against voltage spikes.

This surface mount EMI filter operates at 250MHz frequency. It features an 11pF capacitance for effective noise suppression. The device supports a minimum operating temperature of -40°C and a maximum of 85°C. Leakage current is rated at a low 100nA ensuring minimal power loss.

Compact dimensions with a length of 2.2mm and depth of 1mm. The filter has a resistance of 100mΩ enhancing signal integrity. Packaging is tape and reel for efficient automated assembly. Meets RoHS standards ensuring compliance with environmental directives.

Offers transient voltage suppression suitable for protecting sensitive electronic devices.

This highly specialized EMI filter is essential for engineers and designers working on industrial, laboratory, HVAC, manufacturing, and commercial electrical systems that require noise reduction and voltage spike protection. Explore EnvMart’s extensive catalog for more advanced EMI Filtering solutions and complementary power line components from onsemi.
