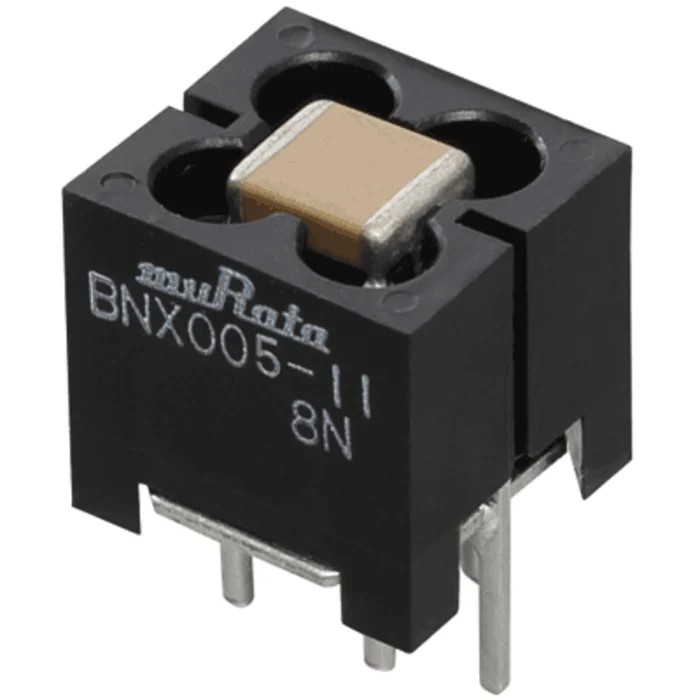

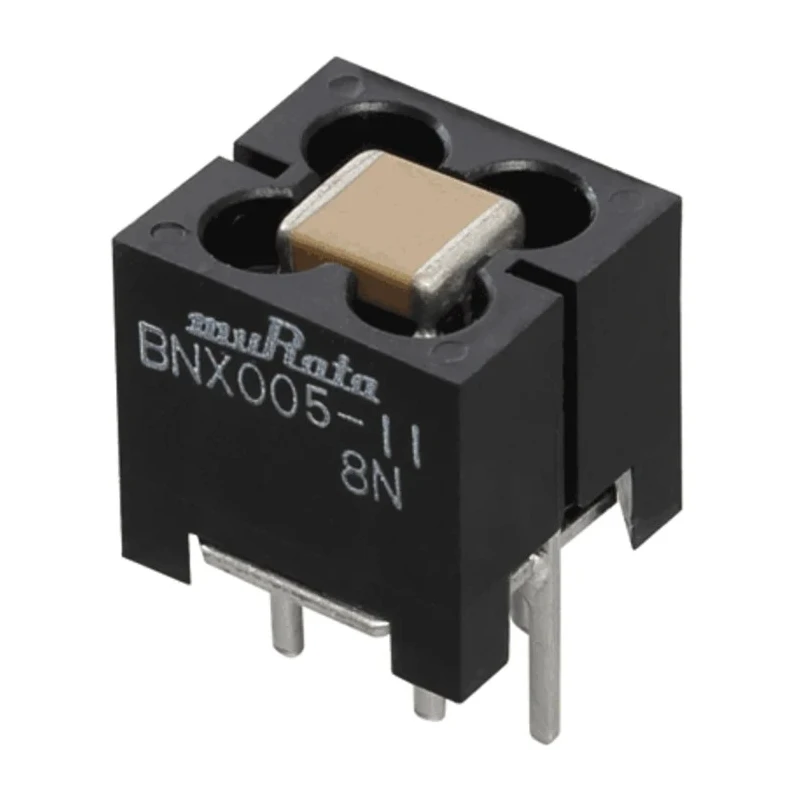

Murata Through Hole EMI Filter 50V dc 15A Pin Termination BNX005-11

The Murata BNX005-11 is a high-performance through hole EMI filter designed for DC power circuits operating up to 50V dc and supporting up to 15A maximum current. This EMI filter features a block type construction with integrated through-type capacitor, monolithic chip capacitors, and bead components to deliver excellent suppression of electromagnetic interference over a wide frequency range from 0.5MHz to 1GHz.

Its pin termination style facilitates secure mechanical and electrical connections suitable for through-hole mounting. The filter's compact physical length of 12mm and a low resistance rating of 100mΩ contribute to minimal signal loss and efficient filtering.

Designed to operate reliably across a temperature range from -40°C to 85°C, the BNX005-11 ensures stable performance even under harsh environmental conditions. This product is ideal for use in industrial, commercial, and consumer electronics applications that require effective noise reduction to protect sensitive circuits from impulse noise such as electrostatic discharge and spike noise.

Packaged conveniently as 100 pieces per box, these EMI filters are suited for bulk installations and manufacturing needs. Manufactured in Japan, the BNX005-11 reflects quality engineering and robust standards, although it does not carry specific certifications.

Incorporates through-type capacitor, monolithic chip capacitors, and bead for optimum EMI suppression. Effective in wide frequency range from 0.5MHz to 1GHz for broad noise attenuation. Designed for DC power lines with 50V dc maximum voltage and 15A maximum current suitability.

Through hole mount type with pin termination ensures compatibility with standard PCB layouts. Temperature rating from -40°C to 85°C supports diverse industrial applications. Low resistance and compact form factor minimize impact on circuit performance.

Comes in 100 pcs per box packaging conducive to production scale usage.

This EMI filter is widely used in industrial electronic assemblies, power supply units, instrumentation, and measurement devices to enhance electromagnetic compatibility by reducing conducted noise. For further browsing, explore additional EMI Filters and power line filters available at EnvMart to match your exact application needs.
