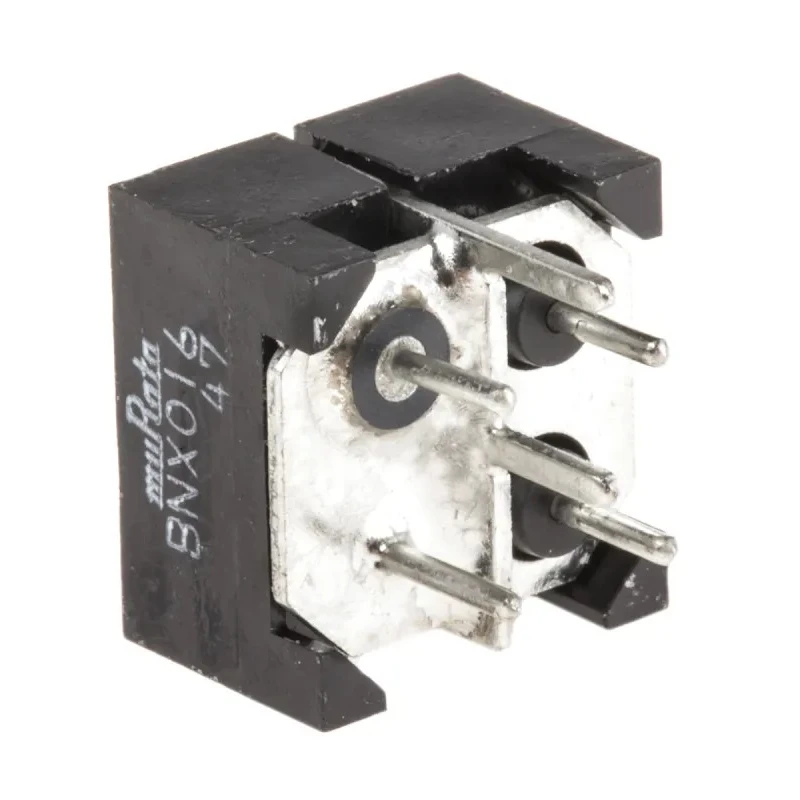

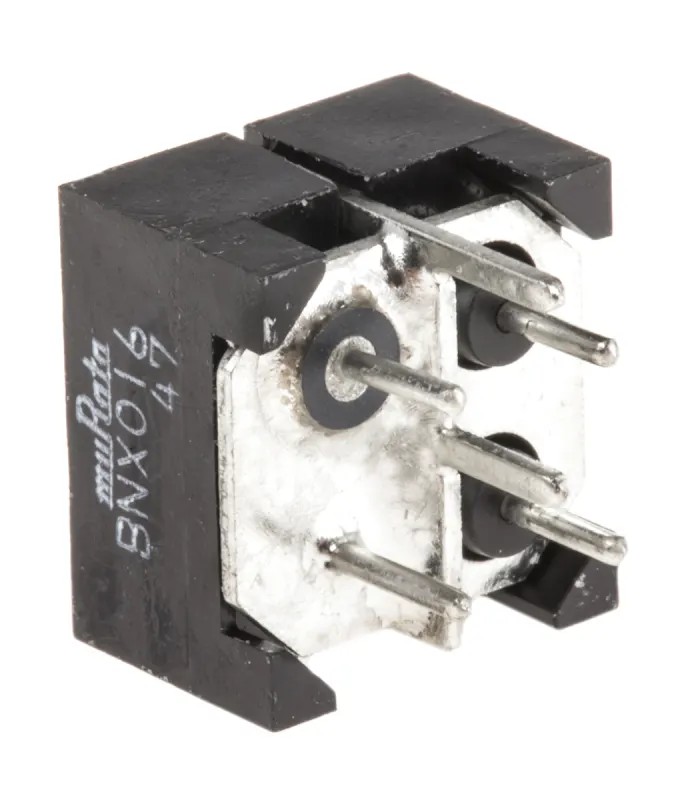

Murata Through Hole EMI Filter 15A 25V DC 1 GHz 100kHz 10μF BNX016-01
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Murata |
| Height | 8mm |
| Length | 12mm |
| Model | BNX016-01 |
| Depth | 11mm |
| Packaging | Tape & Reel |
| Mount Type | Through Hole |
| Operating Frequency | 1, 100GHz |
| Series | BNX |
| Maximum Operating Temperature | 125°C |
| Resistance | 50mΩ |
| Capacitance | 10μF |
| Minimum Operating Temperature | -40°C |
| Maximum Current | 15A |
| Maximum Voltage | 25V dc |
| Termination Style | Pin |
Key Features
- Provides excellent noise suppression across a wide frequency range.

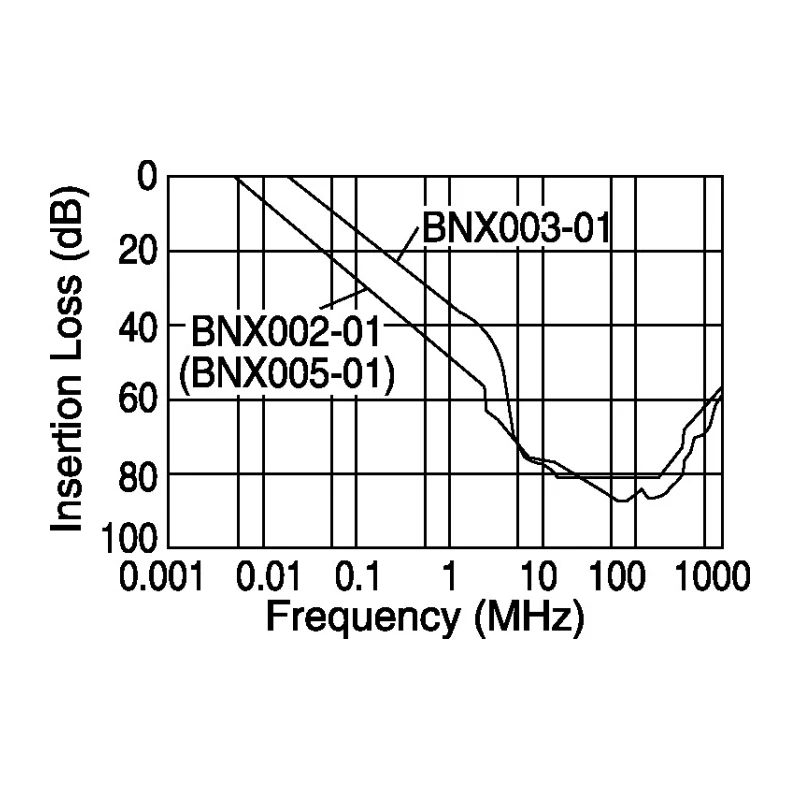

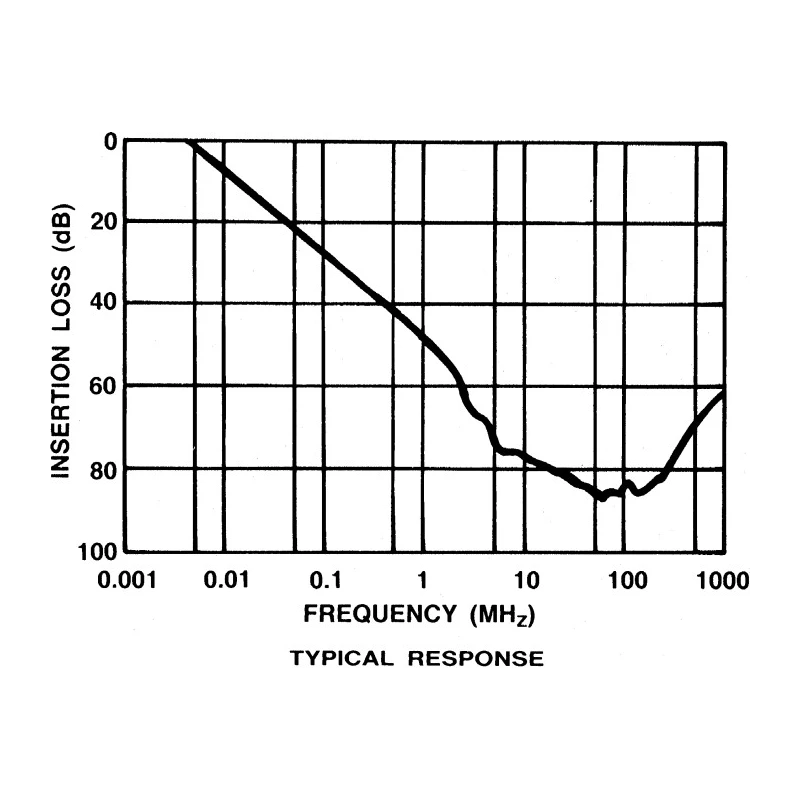

- Features high insertion loss for enhanced performance.
- Designed with a through-hole mount and pin termination style.
- Suitable for impulse noise such as spike noise and electrostatic discharge.

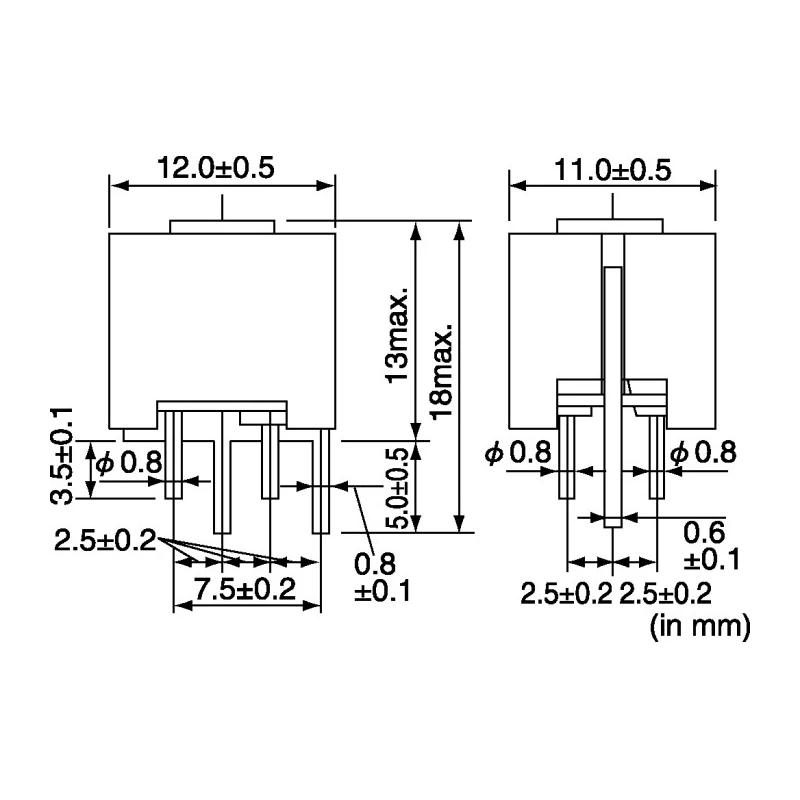

- Compact block-type design with dimensions 12mm length, 11mm depth, and 8mm height.
- Operates reliably in temperatures from -40°C to 125°C.
- Capacitance of 10μF ensures stable filtering performance.
- Resistant with 50mΩ resistance ensuring minimal loss in the circuit.
Product Description
Murata BNX016-01 Through Hole EMI Filter is a high-performance filter designed for DC power circuits, offering a maximum current rating of 15A and maximum voltage of 25V DC. This component operates effectively over a wide frequency range up to 1 GHz and 100 kHz, providing excellent noise suppression and high insertion loss which makes it highly suitable for mitigating electromagnetic interference and impulse noises such as spike noise and electrostatic discharge.

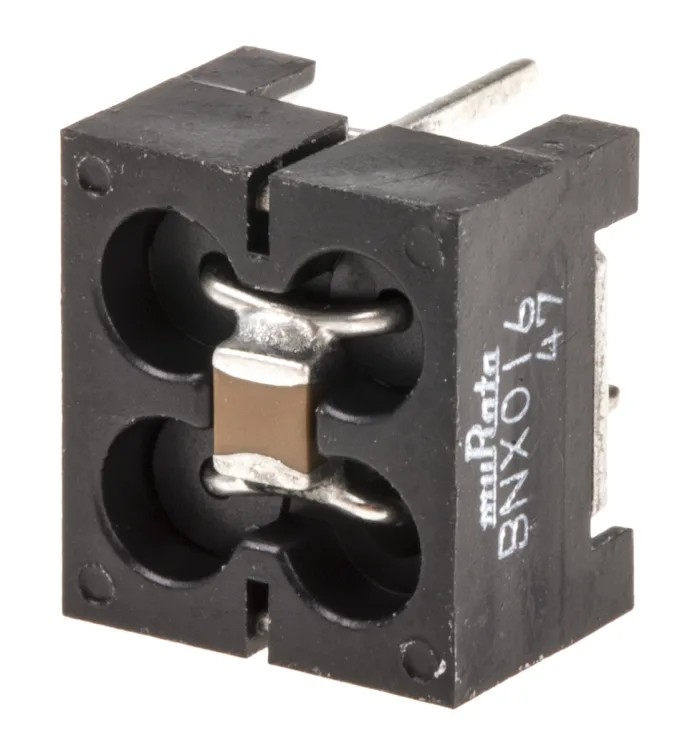

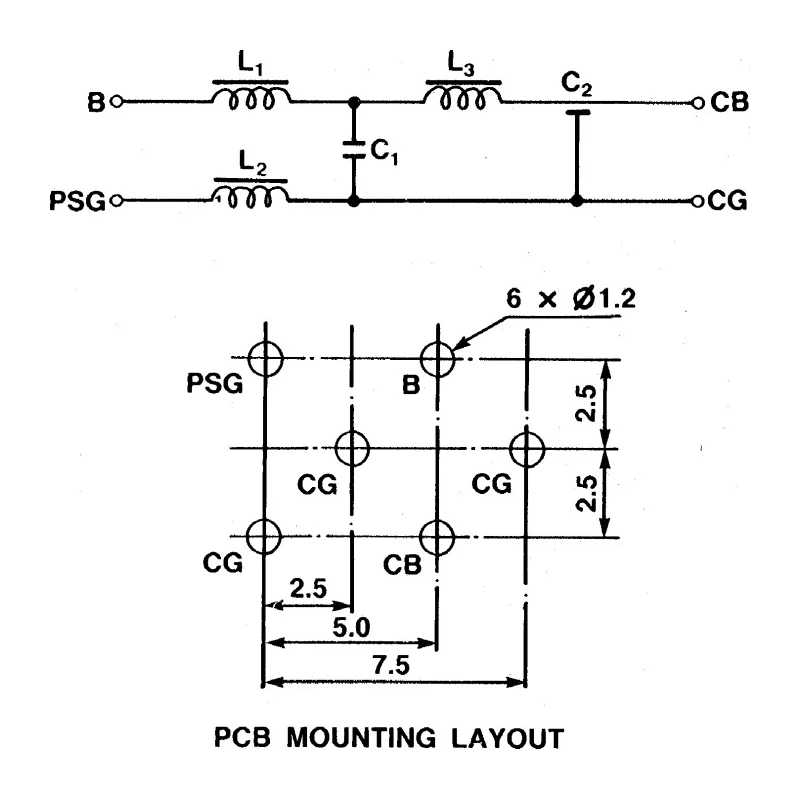

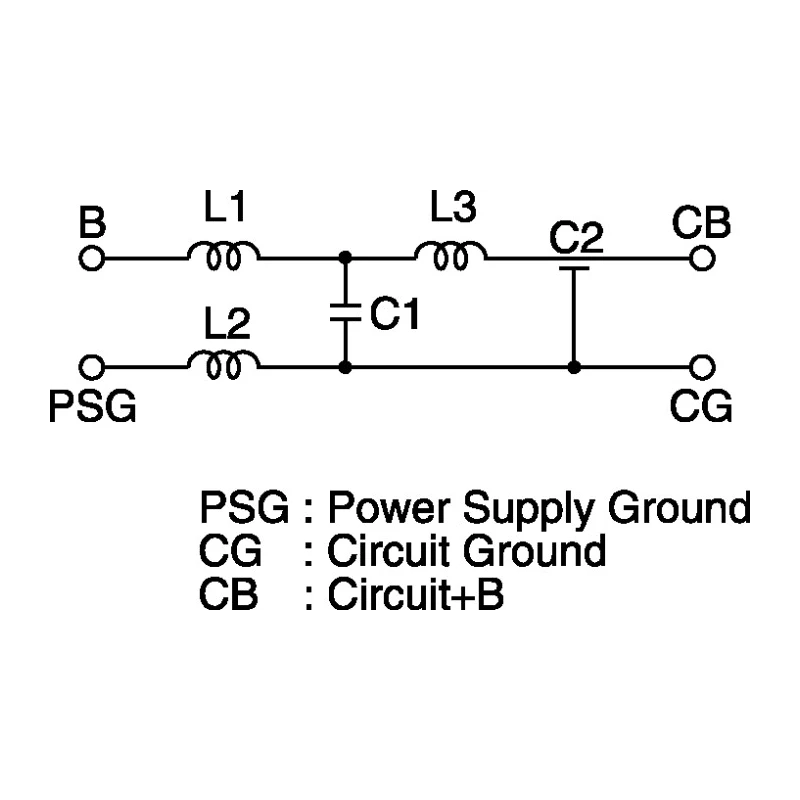

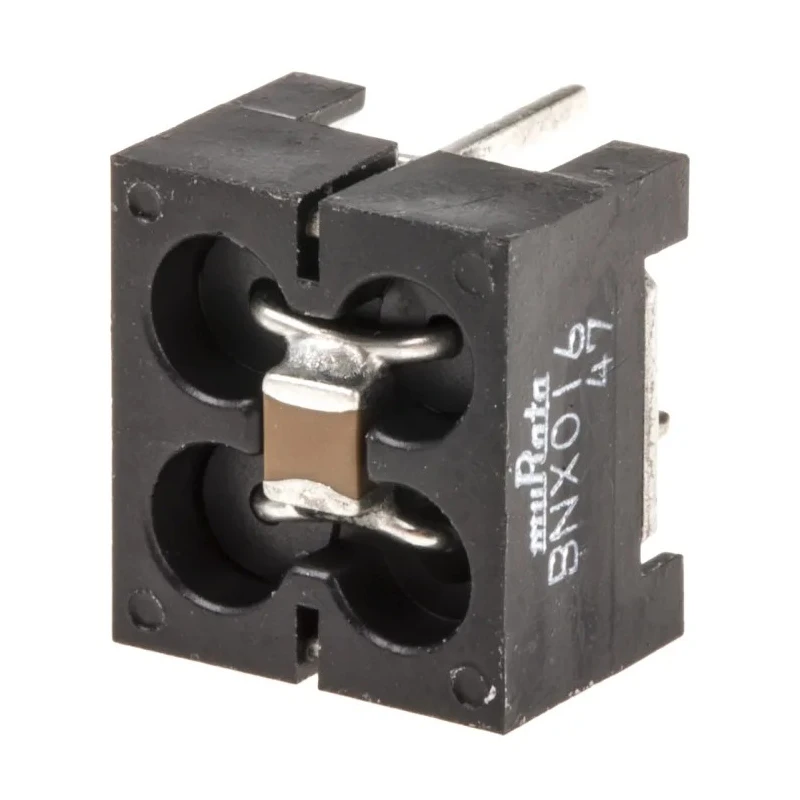

The BNX 01 series filters combine through-type capacitors, monolithic chip capacitors, and beads into a compact block-type 'EMIFIL' design. With compact dimensions of 12mm in length, 11mm in depth, and 8mm in height, the filter is optimized for PCB through-hole mounting and pin termination style, promoting reliable and easy assembly in manufacturing processes. Its capacitance of 10μF and low resistance of 50mΩ ensure minimal power loss, enhancing circuit efficiency.
Operating temperature ranges from -40°C to 125°C, enabling reliable performance in harsh industrial and commercial environments. This filter is widely used in applications including PC peripherals, amusement equipment, LCD-TV and PDP monitors, digital AV equipment, and various industrial equipment that demand robust EMI filtering.
The product comes packaged in tape & reel, facilitating automated pick-and-place manufacturing for improved production efficiency. Excellent noise suppression across a wide frequency range. High insertion loss for performance enhancement.
Compact block-type design integrating capacitors and beads. Suitable for mitigating spike noise and electrostatic discharge. Pin termination and through-hole mount compatible with PCB assembly. Temperature resilient from -40°C to 125°C.
Capacitance of 10μF for stable filter operation. Low resistance of 50mΩ ensuring minimal power loss. Applications in PC peripherals, digital AV, and industrial equipment. Supplied in tape & reel packaging for manufacturing efficiency.
Explore more EMI Filters and power line filters on EnvMart for diverse industrial and electronic applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this model is 15A.
It has a capacitance of 10μF, which ensures stable filtering performance.
This EMI filter operates effectively over a frequency range up to 1 GHz and 100 kHz.
The dimensions of this model are 12mm in length, 11mm in depth, and 8mm in height.
The maximum voltage rating for this unit is 25V DC.
This model features a pin termination style, designed for through-hole mounting.
It has a low resistance of 50mΩ, ensuring minimal power loss in the circuit.
The operating temperature range is from -40°C to 125°C, allowing reliable performance in various environments.
This EMI filter is supplied in tape & reel packaging, facilitating automated pick-and-place manufacturing.
It is suitable for applications including PC peripherals, amusement equipment, LCD-TV and PDP monitors, and digital AV equipment.
This model is designed to mitigate impulse noise such as spike noise and electrostatic discharge.
The country of origin for this EMI filter is Japan.
