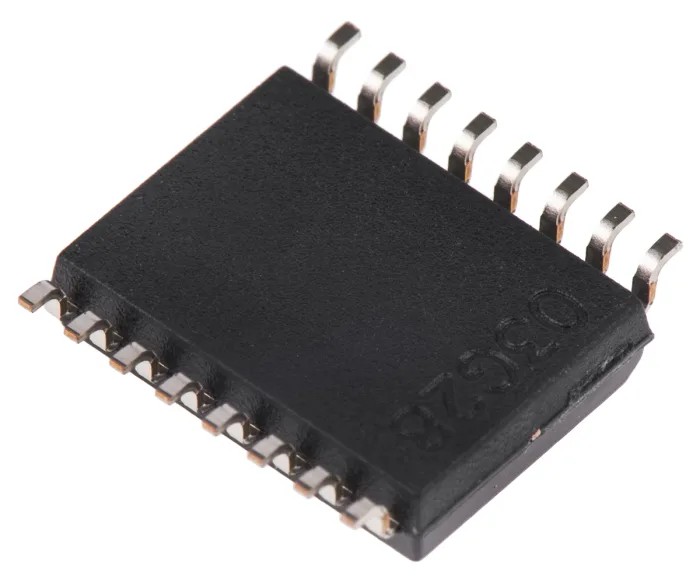

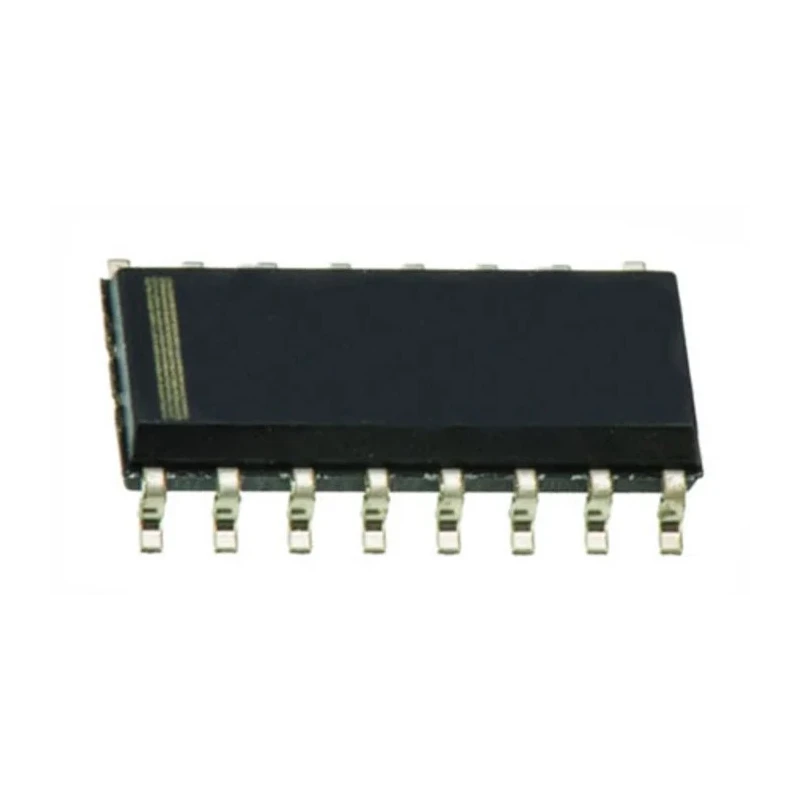

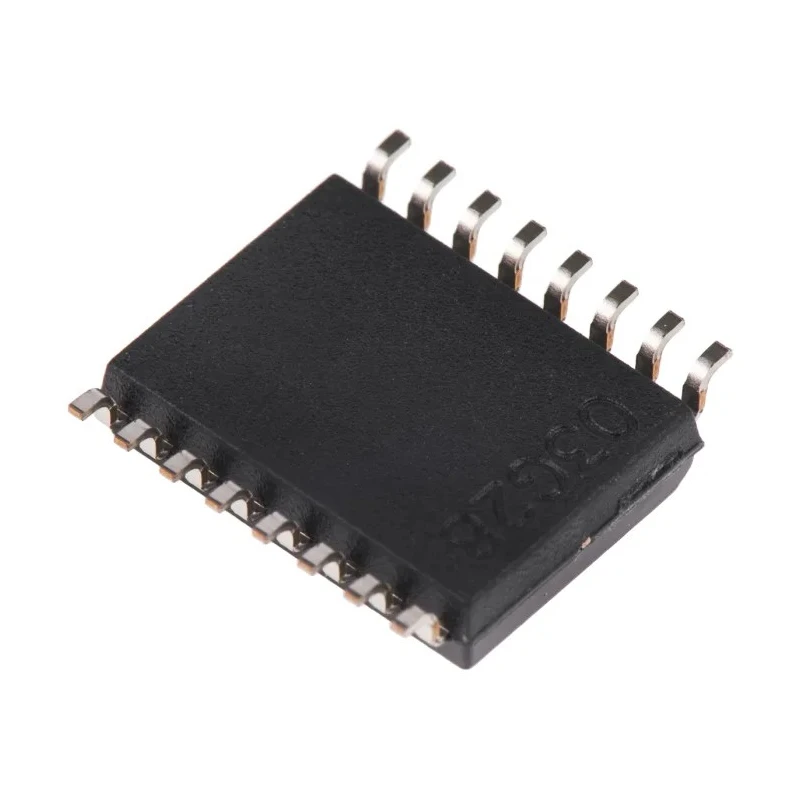

Texas Instruments 2-Channel Audio Volume Control 16-Pin SOIC PGA2320IDW
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 2.35mm |
| Length | 10.28mm |
| Model | PGA2320IDW |
| Width | 7.52mm |
| Mount Type | Surface |
| Series | PGA2320 |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Pin Count | 16 |
| Maximum Supply Voltage | 15V |
| Minimum Supply Voltage | 5V |
| Amplifier Type | Audio Volume Control |
Key Features
- Provides precise digital volume control for audio systems.
- Operates within a supply voltage range of 5V to 15V.
- Surface mount package supports efficient PCB assembly.
- Suitable for speaker audio volume control in consumer electronics.
- Operates reliably between -40°C and 85°C ambient temperatures.
- Compact dimensions of 10.28mm length, 7.52mm width, and 2.35mm height.
- 16-pin SOIC package ensures easy integration with standard footprints.
- Designed for use in professional and consumer audio equipment.
Product Description
Texas Instruments PGA2320IDW is a dual-channel audio volume control digital potentiometer offered in a compact 16-pin SOIC surface mount package. It delivers precise and smooth volume adjustment capabilities, making it ideal for integration into audio amplifier systems and speaker controls.
This device operates within a broad supply voltage range from 5 volts up to 15 volts, supporting various audio system designs requiring digital volume control. Designed to operate reliably in industrial and consumer environments, the IC can withstand ambient temperatures from -40 degrees Celsius up to 85 degrees Celsius.
Its small form factor with dimensions of 10.28mm length, 7.52mm width, and 2.35mm height allows efficient PCB layout and compact circuit design without sacrificing functionality. The surface mount SOIC package facilitates high-volume, automated assembly processes used in modern electronic manufacturing.
The PGA2320IDW IC features two independent audio channels, making it suitable for stereo applications where independent volume control is necessary. It is widely used in audio processing units, consumer audio equipment, and professional sound systems to provide smooth and accurate volume adjustment.
Provides precise digital volume control for audio systems. Surface mount 16-pin SOIC package with compact dimensions. Wide operating supply voltage of 5V to 15V. Operates reliably in temperature range -40°C to 85°C. Dual independent audio channel control for stereo applications.
Ideal for consumer and professional audio equipment integration. Supports automated PCB assembly processes. Delivers consistent and noise-free volume control.
This Texas Instruments audio volume control IC offers an ideal solution for designers seeking compact, reliable, and digitally controlled audio volume adjustment. Explore other Audio Amplifier ICs or semiconductor components in the Electronics & Electricals category on EnvMart for complementary products and components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a supply voltage range of 5V to 15V, making it suitable for various audio system designs.
The PGA2320IDW has compact dimensions of 10.28mm in length, 7.52mm in width, and 2.35mm in height.
This unit features two independent audio channels, allowing for stereo applications with separate volume control.
The PGA2320IDW operates reliably in ambient temperatures ranging from -40°C to 85°C.
It is available in a 16-pin SOIC surface mount package, which supports efficient PCB assembly.
Yes, this model is designed for integration into both consumer and professional audio equipment, providing smooth and accurate volume adjustment.
It is widely used in audio processing units, consumer audio equipment, and professional sound systems.
This audio volume control IC has a pin count of 16.
The maximum supply voltage for this model is 15V.
The minimum operating temperature for this unit is -40°C.
It is classified as an audio volume control amplifier, designed for precise digital volume control.
The country of origin for the PGA2320IDW is India.
