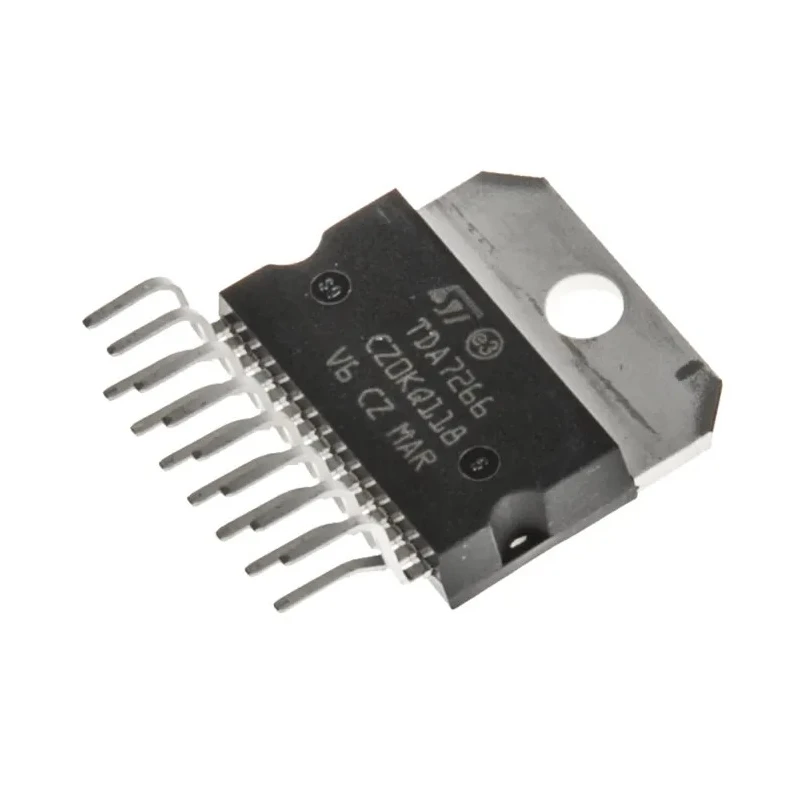

STMicroelectronics Bridge Amplifier Audio Amplifier IC 15-Pin Multiwatt, 7W Output Power TDA7266
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 10.7mm |
| Length | 19.6mm |
| Model | TDA7266 |
| Width | 5mm |
| Output Power | 7W |
| Mount Type | Through Hole |
| Series | TDA7266 |
| Maximum Operating Temperature | 70°C |
| Package Type | Multiwatt |
| Minimum Operating Temperature | 0°C |
| Pin Count | 15 |
| Maximum Supply Voltage | 18V |
| Minimum Supply Voltage | 11V |
| Amplifier Type | Bridge Amplifier |
| Amplifier Class | Class A-B |
Key Features
- Operates within a supply voltage range of 11V to 18V.
- Designed for through-hole mounting with a Multiwatt package.
- Supports a maximum operating temperature up to 70°C and minimum 0°C.
- Offers Class A-B amplifier performance for efficient audio amplification.
- Compact dimensions of 19.6mm length, 10.7mm height, and 5mm width enable easy PCB integration.
- Suitable for mono, stereo, and multi-channel audio solutions in consumer electronics.
- Ideal for industrial, commercial, and laboratory audio amplification applications.
- No automotive standards compliance; intended for general audio amplification circuits.
Product Description
STMicroelectronics TDA7266 is a high-quality Bridge Amplifier Audio Amplifier IC, featuring a 15-pin Multiwatt package and delivering up to 7W of output power. It operates efficiently in Class A-B mode, making it suitable for a variety of speaker audio applications in both industrial and consumer electronics.
This amplifier IC supports a supply voltage range from 11V to 18V and is designed for through-hole mounting, facilitating easy assembly and reliable mechanical stability on PCBs. The device maintains operational stability between 0°C and 70°C, ensuring robust performance across typical operating environments.
With compact dimensions of 19.6mm length, 10.7mm height, and 5mm width, the TDA7266 is ideal where space-saving design is critical. It suits mono, stereo, and multi-channel audio designs and is well-matched to applications requiring audio clarity and efficiency.
The TDA7266 does not conform to automotive standards but excels in industrial, laboratory, and commercial audio amplification uses. Its bridge amplifier design maximizes power output while ensuring minimized distortion and heat generation.
Operates across a wide supply voltage range of 11V to 18V. Delivers 7W output power in a compact 15-pin Multiwatt package. Class A-B amplifier for effective audio amplification. Designed for through-hole mounting for ease of assembly.
Compact size suits modern PCB design constraints. Operates reliably between 0°C and 70°C ambient temperature. Applicable for industrial, commercial, and lab audio amplification needs. Compatible with mono, stereo, and multi-channel audio circuits.
Explore the full range of STMicroelectronics Audio Amplifier ICs and related components at EnvMart to enhance your electronic designs with trusted quality and performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TDA7266 amplifier delivers an output power of 7W.
It operates within a supply voltage range of 11V to 18V.
This model has compact dimensions of 19.6mm in length, 10.7mm in height, and 5mm in width.
The maximum operating temperature for this amplifier IC is 70°C, with a minimum operating temperature of 0°C.
It is designed for through-hole mounting, facilitating easy assembly on PCBs.
This model operates as a Class A-B amplifier, providing efficient audio amplification.
It is suitable for mono, stereo, and multi-channel audio solutions in industrial, commercial, and laboratory settings.
The TDA7266 features a total of 15 pins.
This amplifier IC comes in a Multiwatt package type.
No, the TDA7266 does not conform to automotive standards; it is intended for general audio amplification circuits.
The bridge amplifier design maximizes power output while minimizing distortion and heat generation, making it effective for audio applications.
The country of origin for the TDA7266 is India.
