Microchip Chip Programming Adapter Universal Programming Module 2 for MPLAB REAL ICE, MPLAB ICD and PICkit 3 AC162049-2

Microchip AC162049-2 is a Chip Programming Adapter providing a universal programming solution compatible with MPLAB REAL ICE, MPLAB ICD 3, and PICkit 3 In-Circuit Debuggers. This adapter is designed to program 8- to 40-pin DIP-package parts with ease and reliability.

The adapter operates directly from the tool-supplied VDD voltage when used with ICD 3 and PICkit 3, ensuring seamless integration without requiring additional power sources. It includes two on-board adjustable voltage regulators: a VDD regulator that ranges from 1.2 to 5.5 volts for the primary voltage supply and a CORE VDD regulator adjustable from 1.2 to 2.7 volts to provide voltage to the VDDCORE or VCAP pins, offering precise voltage control necessary for delicate programming operations.

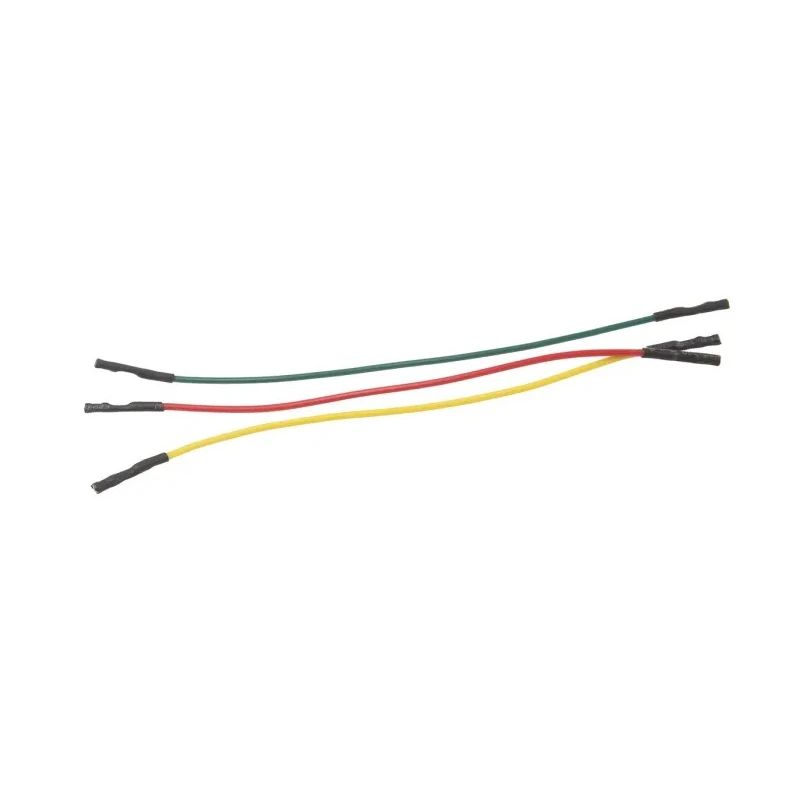

To facilitate connections, the AC162049-2 comes supplied with 15 color-coded patch wires, allowing for organized and flexible wiring arrangements. The universal design of this module makes it suitable for various semiconductor programming tasks in industrial, laboratory, and manufacturing environments.

Its compliance with RoHS standards ensures it meets environmental and safety regulations, making it a dependable choice for electronic development and debugging tasks.

Use cases include semiconductor development, product testing, embedded system programming, and educational electronics labs. It simplifies the programming process for technicians and engineers who require versatile and accurate programming adapters.

This module operates from tool-supplied VDD when used with ICD 3 and PICkit 3. Two adjustable on-board regulators provide flexible voltage settings. Voltage regulator ranges: VDD from 1.2 to 5.5V, CORE VDD from 1.2 to 2.7V.

Accommodates 8- to 40-pin DIP-package semiconductor devices. Includes 15 color-coded patch wires for easy interfacing. Meets RoHS environmental compliance standards. Explore more Chip Programming Adapters and debugging tools in the Electronics & Electricals category at EnvMart.
