FTDI Chip VNC2 Debug Module Chip Programming Adapter Debugger for Viniculum-II IDE VNC2 DEBUG MODULE
Specifications
| Country of Origin | China |
|---|---|
| Brand | FTDI Chip |
| Model | VNC2 DEBUG MODULE |
| Sub Type | Debugger |
| Interfaces | USB powered |
| For Use With | Viniculum-II IDE |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 708-0101 Brand: [FTDI Chip](https://in.rsdelivers.com/brands/ftdi-chip)Manufacturers Part No.: VNC2 DEBUG MODULE |
Key Features
- Compatible with Vinculum-II IDE development software.
- Connects to VNC2 device through a 6-way, 2mm pitch, keyed, female connector.
- Features an on-board FTDI FT232R USB-to-serial converter.
- USB powered with +5V output to V2DIP-x modules if needed.
- Includes power and traffic indicator LEDs for status monitoring.
- Operates within a temperature range of -40 to +85 ℃.
- USB 2.0 Full Speed compatible with UHCI/OHCI/EHCI host controller standards.
- Supports programming and debugging for VNC2 IC designs.
Product Description

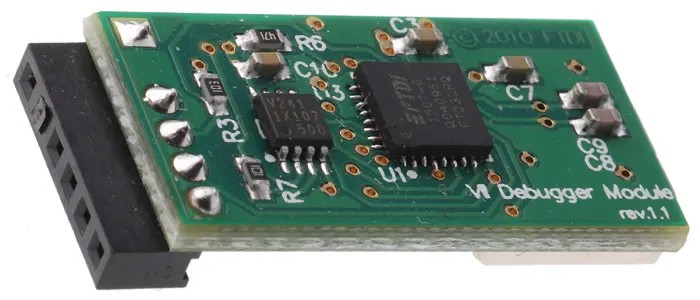

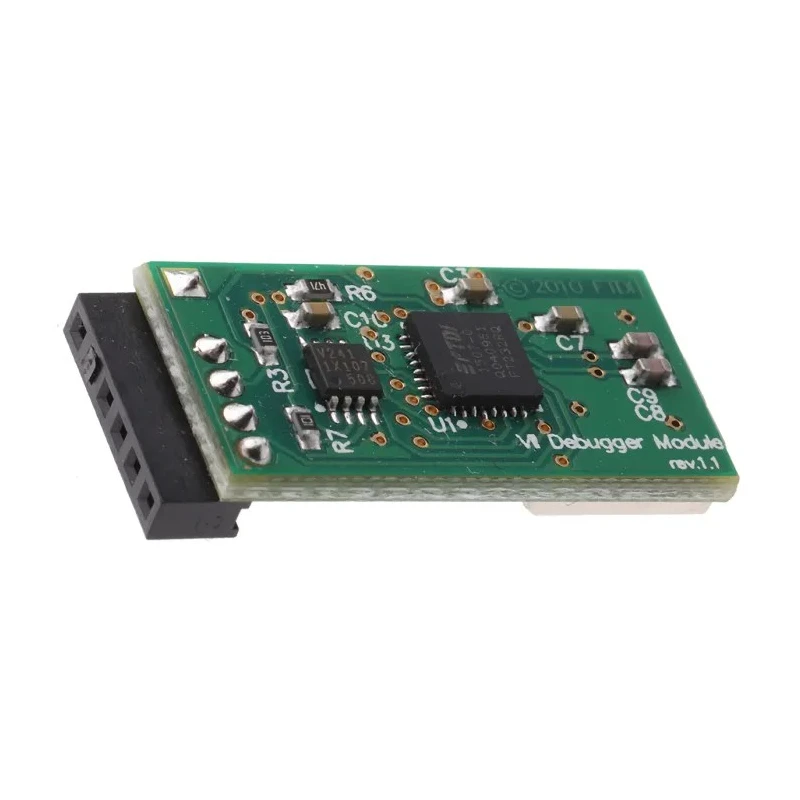

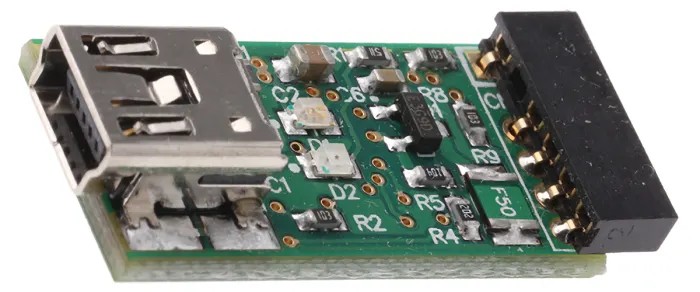

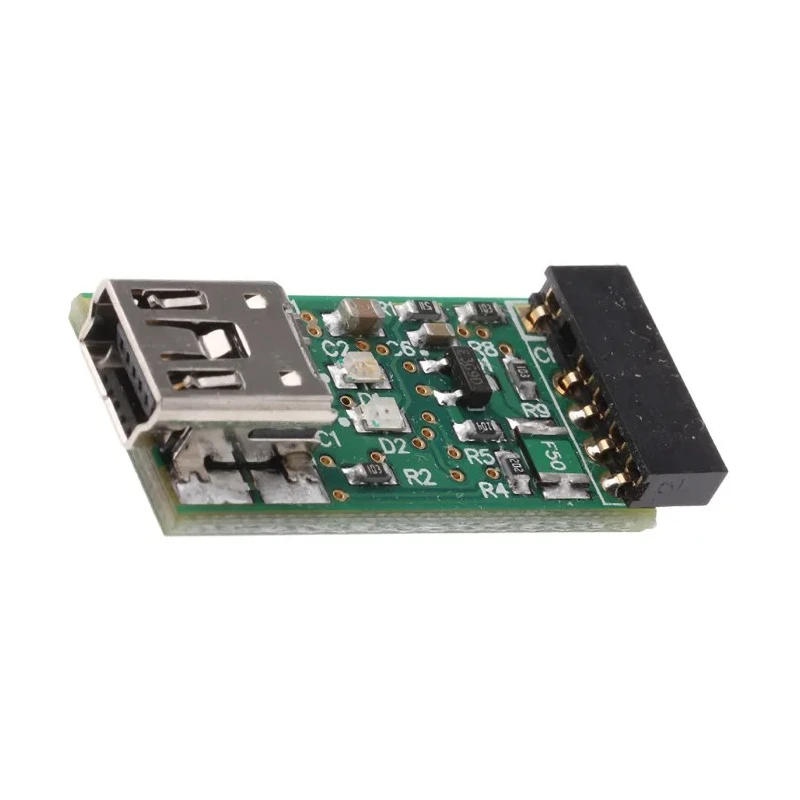

FTDI Chip VNC2 DEBUG MODULE is a specialized chip programming adapter designed for debugging and programming the FTDI Vinculum-II (VNC2) USB host controller device using the Vinculum-II IDE development tools. This device connects a PC to the VNC2 debug interface through a USB mini-B connector, enabling seamless communication for firmware development.
The debug module is equipped with an on-board FTDI FT232R chip which converts USB signals to a serial interface compatible with the VNC2 debug port. The module consumes low USB bandwidth and ensures compatibility with various USB host controllers including UHCI, OHCI, and EHCI.
Powered via USB, the module also provides a +5V power output to compatible V2DIP-x development modules if required. It features power and traffic indicator LEDs to provide clear visibility into operating status and communication activity.
Connection to the VNC2 device is made through a 6-way, 2mm pitch, keyed female connector ensuring a secure and correct interface. Development boards based on the VNC2 are fitted with compatible male connectors to host this debug module. For custom hardware, designers need to ensure compatible male connectors are present.
The module operates reliably within an industrial temperature range of -40 to +85 degrees Celsius, making it suitable for a wide range of testing and development environments. Compatible with Vinculum-II IDE development software.
Connects via 6-way keyed female connector for secure interfacing. On-board FTDI FT232R enables USB to serial conversion. USB powered with +5V output support. Power and traffic indicator LEDs provide operational feedback.
Low USB bandwidth consumption ensures efficient operation. Wide industrial temperature range suitable for diverse applications. Complies with USB 2.0 Full Speed and UHCI/OHCI/EHCI standards. Designed for programming and debugging VNC2 IC designs.
This Chip Programming Adapter is ideal for industrial automation, embedded system development, electronics manufacturing, laboratory testing, and other professional settings requiring reliable VNC2 device programming and debugging.
Explore EnvMart’s full range of FTDI Chip programming and debugging adapters to find compatible and complementary development tools.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates reliably within a temperature range of -40 to +85 degrees Celsius.
The module connects to the VNC2 device through a 6-way, 2mm pitch, keyed female connector.
It provides a +5V power output to compatible V2DIP-x development modules if needed.
It is compatible with Vinculum-II IDE development software.
It complies with USB 2.0 Full Speed and supports UHCI, OHCI, and EHCI host controller standards.
Its primary function is to enable programming and debugging for VNC2 IC designs.
The FTDI FT232R chip converts USB signals to a serial interface compatible with the VNC2 debug port.
It connects to a PC through a USB mini-B connector.
The brand of this module is FTDI Chip.
It is suitable for industrial automation, embedded system development, electronics manufacturing, and laboratory testing.
The country of origin for this module is China.
