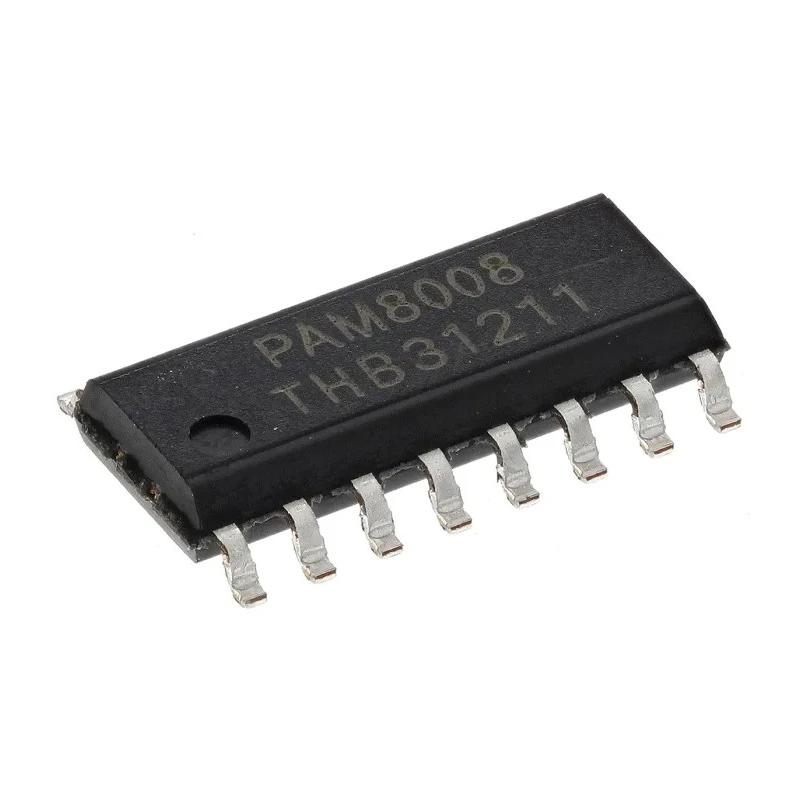

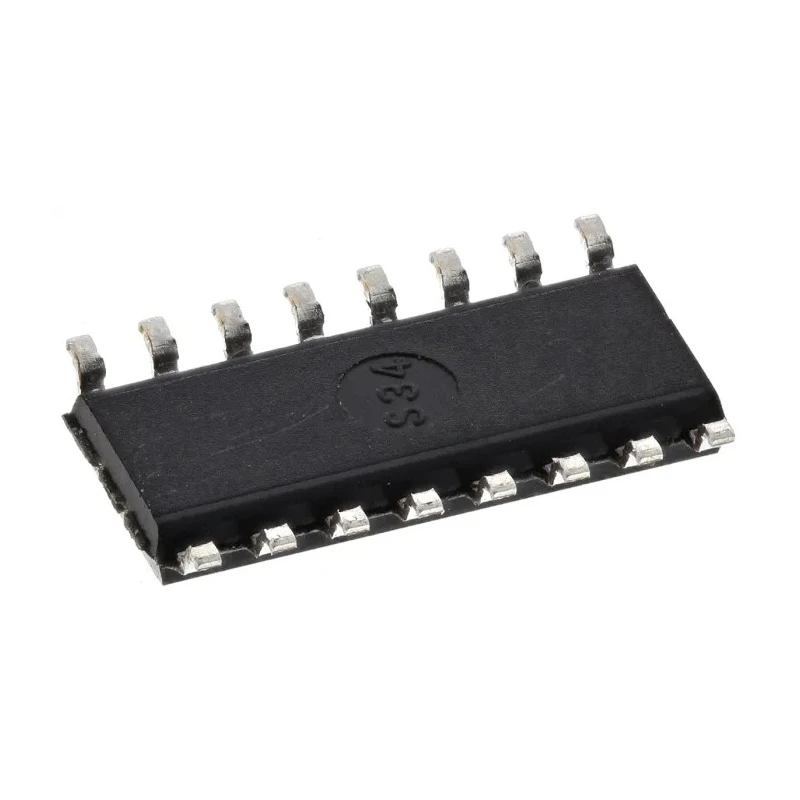

DiodesZetex Audio Amplifier IC, 16-Pin SOP Package, 2.4W Class D, PAM8008DR
Specifications
| Country of Origin | China |
|---|---|
| Brand | DiodesZetex |
| Height | 1.3mm |
| Length | 9.8mm |
| Model | PAM8008DR |
| Width | 5.8mm |
| Output Power | 2.4W |
| Mount Type | Surface |
| Series | PAM8008 |
| Maximum Operating Temperature | 85°C |
| Package Type | SOP |
| Minimum Operating Temperature | -20°C |
| Number Of Channels | 1 |
| Pin Count | 16 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.5V |
| Amplifier Type | Audio |
| Amplifier Class | Class D |
Key Features
- This audio amplifier IC features surface mount technology suitable for modern electronics assembly.
- It operates with a supply voltage range from 2.5V to 5.5V ensuring versatile power compatibility.
- The device is rated for operation from -20°C up to 85°C, allowing usage in a broad temperature range.
- Measuring 9.8mm length, 5.8mm width, and 1.3mm height, the compact form factor enables efficient PCB integration.
- Being a mono amplifier, it offers high efficiency with low power dissipation in audio applications.
- The package pin count of 16 facilitates multiple interface options and circuit integration.
- Designed without automotive standards, it suits typical electronic and consumer audio devices.
- Manufactured in China with new product condition assures quality source traceability.
Product Description
DiodesZetex PAM8008DR is a high-performance Audio Amplifier IC designed for compact and efficient audio amplification applications. This mono Class D amplifier provides 2.4W power output with low power consumption and heat generation, making it ideal for use in portable and embedded audio devices.
This surface mount device (SOP package) features a 16-pin layout facilitating straightforward PCB assembly and integration into electronic components and power connectors platforms.
The PAM8008DR supports operating voltages ranging from 2.5V to 5.5V, adapting to a variety of power supplies common in consumer and industrial audio systems. Its operation is reliable across a temperature range of -20°C to 85°C, ensuring performance in standard environmental conditions.
The compact physical dimensions (9.8mm length, 5.8mm width, 1.3mm height) allow dense circuit board arrangements without compromising performance. This amplifier IC is targeted toward speaker and audio amplification applications requiring high fidelity and efficiency.
The device is not certified for automotive use, making it specifically suited for commercial, industrial, and consumer electronics sectors including audio equipments, electronic components, and amplifier products.
This audio amplifier IC features surface mount technology suitable for modern electronics assembly. It operates with a supply voltage range from 2.5V to 5.5V ensuring versatile power compatibility. The device is rated for operation from -20°C up to 85°C, allowing usage in a broad temperature range.
Measuring 9.8mm length, 5.8mm width, and 1.3mm height, the compact form factor enables efficient PCB integration. Being a mono amplifier, it offers high efficiency with low power dissipation in audio applications. The package pin count of 16 facilitates multiple interface options and circuit integration.
Manufactured in China with new product condition assures quality source traceability.
This DiodesZetex PAM8008DR Audio Amplifier IC is ideal for industrial, laboratory, and consumer audio device manufacturers seeking reliable Class D amplification solutions. Browse the Electronics & Electricals section on EnvMart for more audio amplification components and semiconductor ICs.
Explore more products in our Audio Amplifier ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The PAM8008DR audio amplifier IC provides an output power of 2.4W.
It operates with a supply voltage range from 2.5V to 5.5V, accommodating various power supplies.
This model measures 9.8mm in length, 5.8mm in width, and 1.3mm in height.
The device is rated for operation in a temperature range from -20°C to 85°C.
It is a mono amplifier, meaning it has one channel.
This audio amplifier IC is packaged in a 16-pin SOP (Small Outline Package).
It features a surface mount technology suitable for modern electronics assembly.
No, this model is not certified for automotive use and is intended for commercial, industrial, and consumer electronics.
The PAM8008DR is part of the PAM8008 series of audio amplifier ICs.
It is targeted towards speaker and audio amplification applications requiring high fidelity and efficiency.
This audio amplifier IC is manufactured in China, ensuring quality source traceability.
It is classified as a Class D audio amplifier, known for high efficiency and low power dissipation.
