Abracon 100 MHz MEMS Oscillator, 4-Pin Surface Mount, ±10 ppm Frequency Stability ASDMB-100.000MHZ-LY-T

Free Delivery in India | Lowest Global Shipping Charges

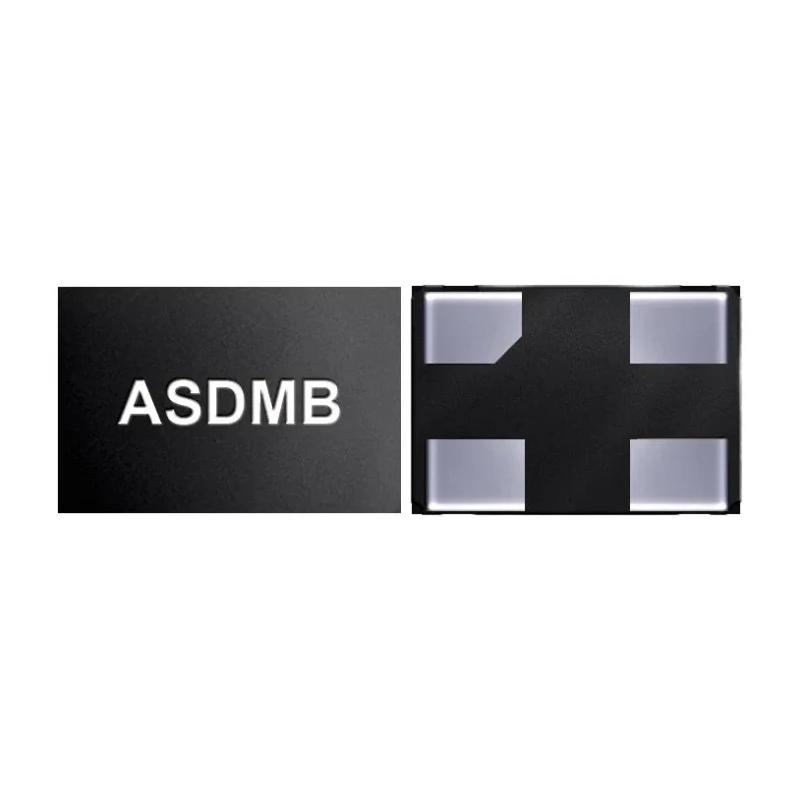

Abracon 100 MHz MEMS Oscillator, 4-Pin Surface Mount, ±10 ppm Frequency Stability ASDMB-100.000MHZ-LY-T

Name: Abracon 100 MHz MEMS Oscillator, 4-Pin Surface Mount, ±10 ppm Frequency Stability ASDMB-100.000MHZ-LY-T
Brand: Abracon
SKU: 424363
Price: 4.47 USD
Availability: InStock



Category MEMS Oscillator Brand Abracon Condition New

Specifications

Country of Origin	India
Brand	Abracon
Height	0.85mm
Length	2.5mm
Model	ASDMB-100.000MHZ-LY-T
Packaging	Tape & Reel
Width	2mm
Mount Type	Surface
Series	ASDMB
Maximum Operating Temperature	85°C
Package Type	Surface Mount
Minimum Operating Temperature	-40°C
Maximum Output Frequency	100MHz
Standards/Approvals	RoHS/RoHS II
Pin Count	4
Output Level	LVCMOS
Maximum Operating Supply Voltage	3.3V
Minimum Operating Supply Voltage	1.8V

Key Features

The device features low power consumption for efficient operation.
Operating supply voltage ranges from 1.8V to 3.3V allowing flexible integration.
It is designed to operate in harsh conditions, with operating temperatures from -40°C to 85°C.
The oscillator uses LVCMOS output level for compatibility with digital circuits.
Compact dimensions of 2.5mm length, 2mm width, and 0.85mm height enable use in space-constrained applications.
Packaging in tape and reel format supports automated assembly processes.
It is RoHS and RoHS II compliant ensuring environmental safety.
The product is suited for industrial, automotive, consumer electronics, and military environments.

Product Description

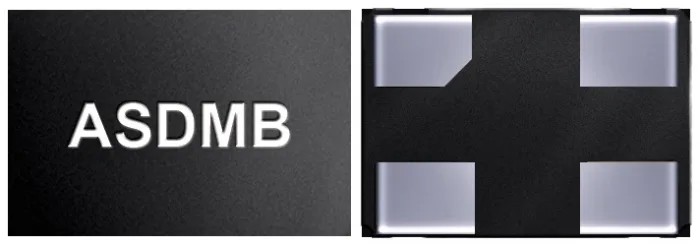

Abracon ASDMB-100.000MHZ-LY-T is a high-quality MEMS oscillator designed for precision timing applications. It provides a stable 100 MHz output frequency with a frequency stability of ±10 ppm ensuring reliable performance in various electronic circuits.

This 4-pin surface mount oscillator is supplied in a compact package measuring 2.5mm in length, 2mm in width, and 0.85mm in height, making it ideal for integration into space-sensitive devices.

The device operates over a wide voltage range from 1.8V to 3.3V and functions reliably within temperature ranges from -40°C to 85°C, making it suitable for harsh environments including industrial, automotive, and military use cases.

It employs an LVCMOS output level which is widely compatible with digital logic circuits. The oscillator also benefits from low power consumption, enhancing battery life in portable equipment such as MP3 players, handheld games, and consumer electronics including TVs and DVRs.

The product comes in tape and reel packaging which supports automated pick-and-place manufacturing processes, boosting production efficiency.

Abracon's MEMS oscillator series ASDMBA is a replacement for traditional crystal oscillators, offering resilience in vibrant, shock-prone, and humid conditions, making it ideal for demanding applications.

The oscillator is engineered for consistent frequency output with ±10 ppm tolerance. The device supports operating temperatures from -40°C to 85°C suitable for extreme conditions. Supplies a low voltage operation range from 1.8V minimum to 3.3V maximum for power efficiency.

Compact size of 2.5mm by 2mm by 0.85mm supports dense PCB designs. 4-pin surface mount package enables easy integration in modern electronic assemblies. RoHS and RoHS II standards compliance ensures environmental regulatory adherence.

Tape & reel packaging facilitates automated manufacturing processes. Ideal for industrial, automotive, military, and consumer electronic applications requiring reliable timing. Explore more MEMS Oscillators and electronic components at EnvMart for efficient sourcing.
