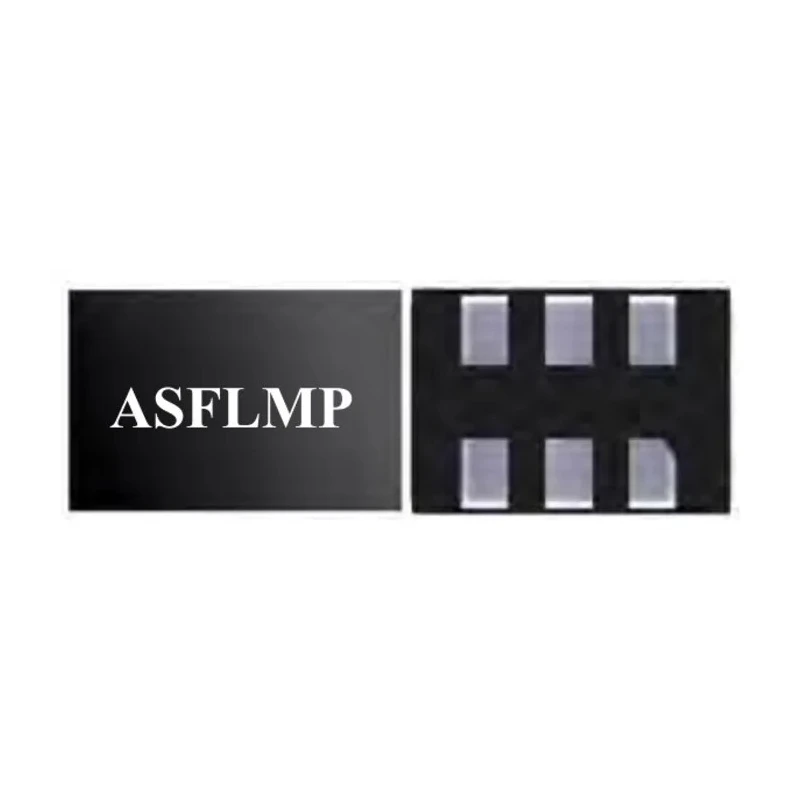

Abracon 100 MHz MEMS Oscillator, 6-Pin QFN, LVDS Output, Surface Mount, 2.25V to 3.6V Operating ASFLMPLV-100.000MHZ-LR-T

Abracon ASFLMPLV-100.000MHZ-LR-T is a high-performance MEMS oscillator designed for demanding industrial and telecommunication applications. Operating at a stable 100 MHz output frequency with LVDS output level, this oscillator is housed in a compact 6-Pin QFN surface mount package measuring 5mm in length, 3.2mm in width, and 0.85mm in height. It requires a low operating supply voltage between 2.25V and 3.6V, making it suitable for modern low-voltage digital systems.

This oscillator complies with robust industry standards including RoHS, RoHS II, and MIL-STD-883 shock and vibration certification, indicating its ruggedness and suitability for harsh conditions. It offers excellent frequency stability with a tolerance of ±15ppm over the industrial temperature range of -40°C to 85°C and extended stability at ±25ppm from -55°C to 125°C, ensuring reliable timing performance.

The ASFLMPLV series oscillator targets applications such as Storage Area Networks (SATA, SAS, Fiber Channel), Passive Optical Networks (EPON, 10G-EPON, GPON, 10G-PON), Ethernet networks (1G, 10GBASE-T, KR, LR, SR, FCoE), PCI Express, and Display Port signaling. It features a low power consumption profile with low jitter performance characterized by low period jitter RMS and phase jitter RMS, critical for high-speed communication devices.

Low voltage operation between 2.25V to 3.6V enhances energy efficiency. Compact 6-pin QFN plastic package offers ease of surface mounting and miniaturization. Meets MIL-STD-883 shock and vibration standards for enhanced durability.

Wide industrial temperature range and extended automotive grade temperature stability. Tristate standby/disable function for flexible power management. Suitable for high-speed digital communication and networking equipment.

LVDS output level ensures minimal signal noise and electromagnetic interference.

This MEMS oscillator is ideal for industrial, telecommunications, networking, and data communication applications requiring precise frequency control in a small form factor. The robust design ensures dependable performance in harsh environments, making it suitable for manufacturing, industrial automation, and embedded system designs.
