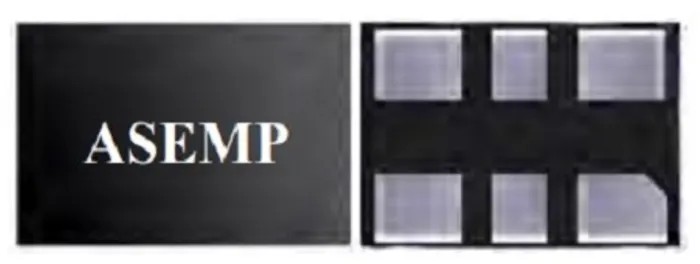

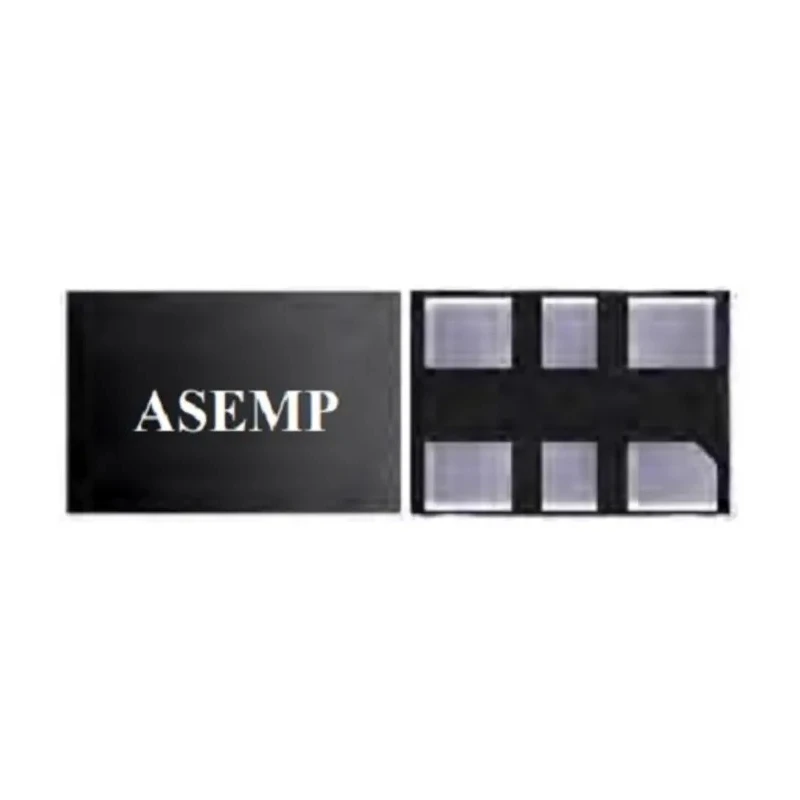

Abracon 156.25 MHz MEMS Oscillator, 6-Pin QFN Surface Mount, LVDS Output, ±25 ppm Stability ASEMPLV-156.250MHZ-LR-T

Free Delivery in India | Lowest Global Shipping Charges

Abracon 156.25 MHz MEMS Oscillator, 6-Pin QFN Surface Mount, LVDS Output, ±25 ppm Stability ASEMPLV-156.250MHZ-LR-T

Name: Abracon 156.25 MHz MEMS Oscillator, 6-Pin QFN Surface Mount, LVDS Output, ±25 ppm Stability ASEMPLV-156.250MHZ-LR-T
Brand: Abracon
SKU: 424372
Price: 5.3 USD
Availability: InStock



Category MEMS Oscillator Brand Abracon Condition New

Specifications

Country of Origin	India
Brand	Abracon
Height	0.85mm
Length	3.2mm
Model	ASEMPLV-156.250MHZ-LR-T
Packaging	Tape & Reel
Width	2.5mm
Mount Type	Surface
Series	ASEMP
Maximum Operating Temperature	85°C
Package Type	QFN
Minimum Operating Temperature	-40°C
Maximum Output Frequency	156.25MHz
Standards/Approvals	RoHS/RoHS II
Pin Count	6
Output Level	LVDS
Maximum Operating Supply Voltage	3.6V
Minimum Operating Supply Voltage	2.25V

Key Features

Operates over a temperature range of -40°C to 85°C ensuring stable performance.
Provides low jitter LVDS output suitable for high-speed communication.
Compact QFN package of 3.2mm x 2.5mm x 0.85mm fits space-constrained applications.
Wide operating supply voltage range from 2.25 V to 3.6 V supports flexible design.
RoHS/RoHS II compliant ensuring environmental safety standards.
Designed for applications like Storage Area Networks, Ethernet, Passive Optical Networks, and PCI Express.
Features a standby or disable tristate function to control output.
Offers exceptional stability and complies with automotive extended temperature grade (±25 ppm at -55 to +125°C).

Product Description

Abracon ASEMPLV-156.250MHZ-LR-T MEMS Oscillator is a highly precise frequency source designed with a 6-pin QFN surface mount package. Operating at a maximum output frequency of 156.25 MHz and frequency stability of ±25 ppm, it ensures reliable timing performance in demanding applications.

This oscillator is suitable for industrial and communication applications including Storage Area Networks (SATA, SAS, Fiber Channel), Passive Optical Networks such as EPON, 10G-EPON, GPON, and advanced Ethernet protocols including 1G, 10GBASE-T, KR, LR, SR, FCoE, PCI Express, and Display port technology.

Featuring a compact physical size with length 3.2 mm, width 2.5 mm, and height 0.85 mm, it is ideal for integration into space-constrained PCBs. The device operates reliably within a temperature range of -40°C to 85°C while supporting a supply voltage from 2.25 V to 3.6 V.

Its LVDS output level provides low jitter and noise characteristics essential for high-speed communication and data transmission. The oscillator incorporates a standby or disable tristate function, enhancing power management capabilities.

This MEMS oscillator complies with RoHS and RoHS II standards, ensuring it meets environmental regulatory requirements. The series designation is ASEMP, and while it does not meet automotive standard certification, it offers an extended automotive grade temperature stability ranging from -55 to +125 °C at ±25 ppm.

Applications include industrial, networking, telecommunications, and high-performance computing where stable timing signals are critical. Operates from -40°C to 85°C for industrial temperature ranges. Compact QFN package ensures space-saving design.

Wide supply voltage range enhances design flexibility. Low jitter LVDS output ideal for high-speed data communications. Tristate function offers output disable capability. RoHS compliant for environmental safety. Extended automotive temperature grade stability improves reliability.

Supports various networking and communication standards including SATA, Ethernet, and PCI Express. Explore more in the MEMS Oscillators category at EnvMart.
