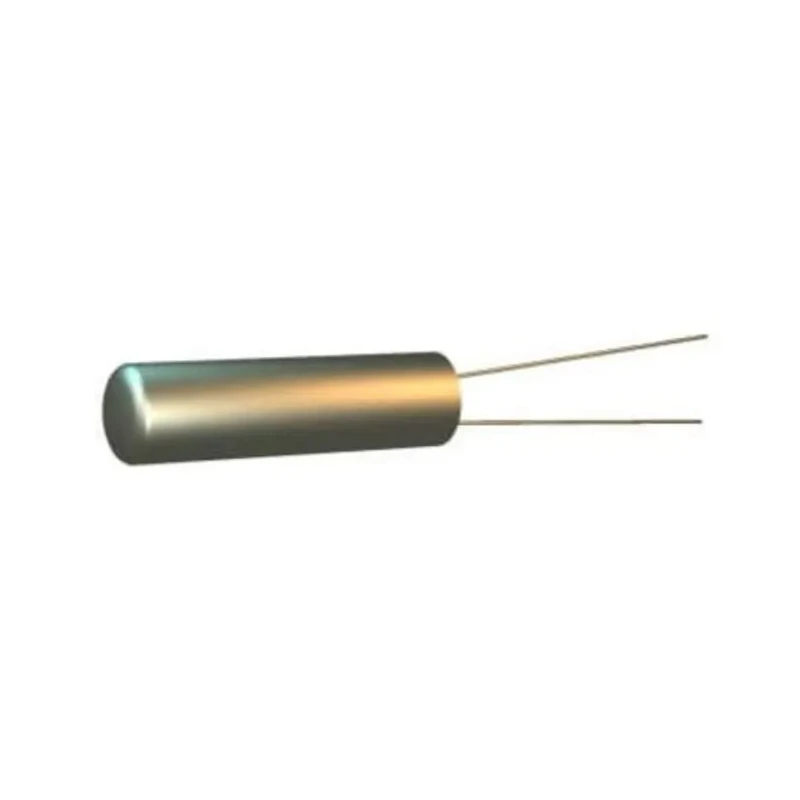

MMD 32.77 kHz Crystal Unit Through Hole Mount with Load Capacitance 12.5 pF ±20 ppm Frequency Tolerance WC26F-32.768KHZ

The MMD WC26F-32.768KHZ Crystal Unit is a high precision component operating at a standard frequency of 32.77 kHz with ±20 ppm frequency tolerance, designed primarily for through hole mounting.

This crystal unit incorporates a load capacitance of 12.5 pF and a 2-pin setup, facilitating stable oscillation and dependable frequency stability of ±0.035 ppm for use in timing circuits and oscillators.

Its compact length of 11.9 mm enables integration into small form factor electronic assemblies. The crystal unit sustains operational integrity across a temperature range from -10°C to 60°C and has a series resistance rated at 35 kΩ to minimize power loss.

Manufactured under the WC26F series and compliant with RoHS directives, the unit ensures environmental safety and quality assurance. Packaged in tape and reel, it supports automated surface mount device assembly processes.

Through hole mount suitable for robust electronics applications. Load capacitance of 12.5 pF for precise frequency control. 2-pin configuration for reliable connections. Compact 11.9 mm length optimizing PCB space. Tight frequency stability of ±0.035 ppm under varying conditions.

Wide temperature operating conditions from -10°C to 60°C. Low series resistance of 35 kΩ to enhance efficiency. RoHS compliant supporting environmental standards. Tape and reel packaging facilitating automated assembly. China origin ensuring traceable manufacturing quality.

This Crystal Unit is ideal for use in electronic components like clocks, timers, and oscillators within consumer electronics, industrial controls, and communication devices. Its stable frequency properties make it invaluable for precision applications requiring consistent oscillation.
