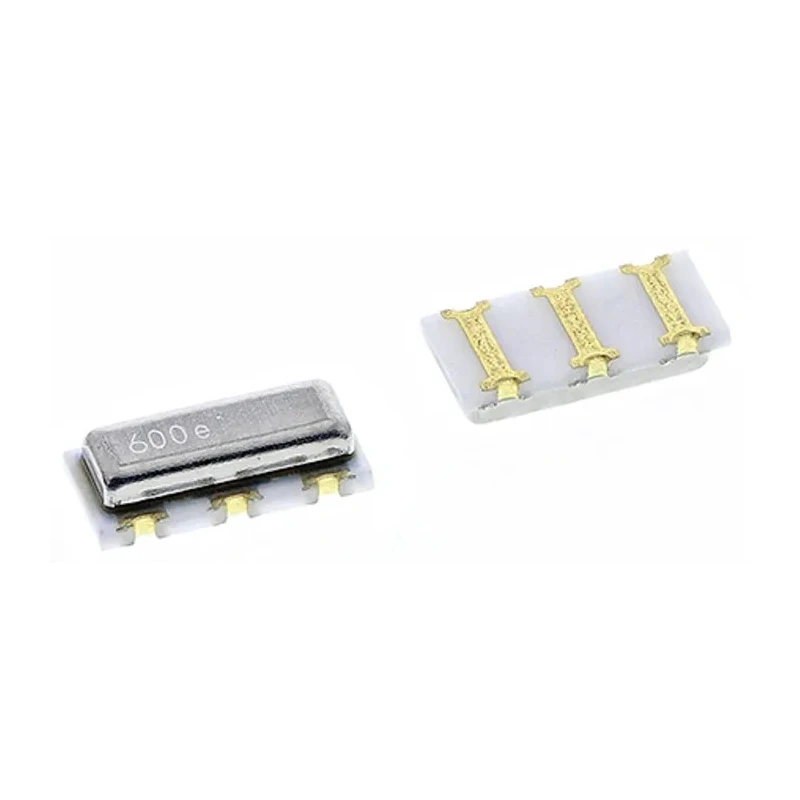

Murata Ceramic Resonator 6 MHz Shear Mode 39 pF Load Capacitance 3-Pin Surface Mount 1.15mm Height 2mm Width CSTCR6M00G53-R0
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Murata |
| Height | 1.15mm |
| Length | 4.5mm |
| Model | CSTCR6M00G53-R0 |
| Packaging | Bulk |
| Width | 2mm |
| Mount Type | Surface |
| Series | CSTLS |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -20°C |
| Standards/Approvals | REACH, RoHS |
| Pin Count | 3 |
| Load Capacitance | 39pF |
| Resonance Frequency | 6MHz |
| Resonance Resistance | 50Ω |
| Mode of Oscillation | Shear |
Key Features
- This ceramic resonator operates at a resonance frequency of 6 MHz with ±0.5% frequency tolerance.
- It features a shear mode of oscillation and comes in a bulk packaging.
- The device has an integrated load capacitance of 39 pF and a resonance resistance of 50 Ω.
- Suitable for surface mount applications with 3 pins and compact dimensions of 4.5 mm length, 2 mm width, and 1.15 mm height.
- Supports operating temperatures from -20°C to 80°C ensuring reliability in varying environments.
- The part is compliant with REACH and RoHS standards and is manufactured in Japan.
- It forms part of the CSTLS series and is ideal for replacing crystal oscillators in audio equipment, USB controllers, and musical instruments.
Product Description
Murata CSTCR6M00G53-R0 ceramic resonator is designed to provide precise frequency control with a resonance frequency of 6 MHz utilizing shear mode oscillation. Featuring built-in load capacitance of 39 pF, this surface mount device eliminates the need for external capacitors and offers efficient space-saving solutions for high-density electronics assembly.

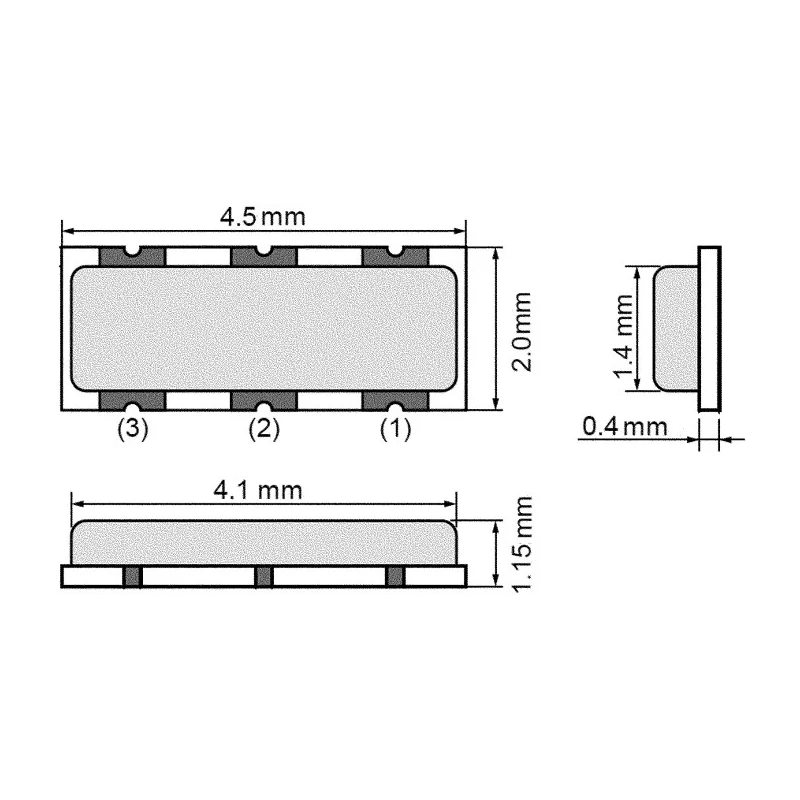

The resonator measures a compact 4.5 mm length, 2 mm width, and 1.15 mm height and has a 3-pin configuration suitable for surface mounting on PCB boards. Its resonance resistance is 50 Ω, supporting stable oscillation and frequency accuracy with frequency tolerance at ±0.5% and frequency aging and stability of ±0.2%.
Engineered to operate reliably within a temperature range of -20°C to 80°C, this component meets stringent environmental standards like REACH and RoHS, ensuring compliance and safety in varied industrial applications. Manufactured in Japan, it is part of the CSTLS series known for high stability piezoelectric ceramics within the CERALOCK® product line.
This ceramic resonator can serve as a replacement for crystal oscillators in several electronic applications including USB controller ICs, audio devices, and musical instruments where accuracy and compact design are imperative.
This resonator offers integral load capacitance, saving PCB space and simplifying circuit design. Built to automotive standards compliance is not applicable for this model. Bulk packaging ensures easy handling for mass production environments.
Compact surface mount design suitable for high-density PCB layouts. Supports industrial and commercial electronic assembly applications. CSTCR series is recognized for high-frequency stability and reliability. Explore Murata Ceramic Resonators in the Electronics Components category at EnvMart for reliable frequency control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The resonance frequency of this model is 6 MHz, providing precise frequency control for various applications.
This ceramic resonator features an integrated load capacitance of 39 pF, eliminating the need for external capacitors in circuit designs.
It measures 4.5 mm in length, 2 mm in width, and has a height of 1.15 mm, making it suitable for compact PCB layouts.
The operating temperature range is from -20°C to 80°C, ensuring reliability in various environmental conditions.
This unit has a 3-pin configuration, designed for surface mounting on PCB boards.
The resonance resistance is 50 Ω, which supports stable oscillation and frequency accuracy.
It is compliant with REACH and RoHS standards, ensuring safety and environmental responsibility in its applications.
This resonator utilizes shear mode of oscillation, which is effective for precise frequency control.
It is provided in bulk packaging, facilitating easy handling for mass production environments.
It is suitable for applications such as USB controllers, audio devices, and musical instruments, where compact design and accuracy are crucial.
This ceramic resonator is manufactured in Japan, ensuring adherence to stringent quality standards.
It is part of the CSTLS series, recognized for high stability piezoelectric ceramics within the CERALOCK® product line.
