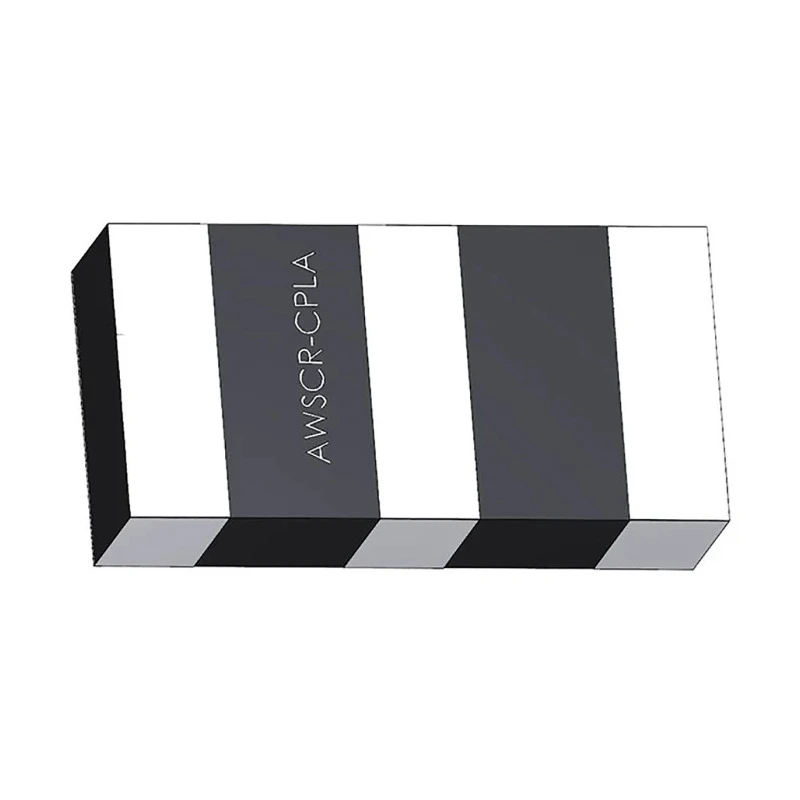

Abracon Ceramic Resonator, 6 MHz 30 pF Load Capacitance, 3-Pin Surface Mount Tape & Reel AWSCR-6.00CPLA-C30-T4

Abracon AWSCR-6.00CPLA-C30-T4 Ceramic Resonator is engineered for precision frequency generation with a resonance frequency of 6 MHz and load capacitance of 30 pF. Its compact 3-pin surface mount package, measuring 6 mm by 3 mm by 1.5 mm, facilitates seamless integration on printed circuit boards, ideal for electronic assemblies requiring stable oscillation.

This device exhibits a low resonance resistance of 30 ohms and maintains tight frequency tolerance of ±0.5%, with frequency ageing at ±0.1% and frequency stability rated at ±0.3%, ensuring consistent performance over time. The resonator operates reliably over a wide temperature range from -40°C to 85°C, suitable for diverse industrial and consumer electronics applications.

Packaged in tape and reel format, the component supports high volume automated PCB assembly processes, increasing production efficiency and reducing handling damage. The device complies with RoHS directives, confirming that it meets environmental and safety standards.

Typical applications include metering systems, remote controls, microprocessor timing circuits, industrial control hardware, and electric appliance frequency stabilization, making it a versatile choice for precision timing solutions in multiple industries.

Resonance frequency: 6 MHz with ±0.5% tolerance. Load capacitance: 30 pF for circuit matching. Low resonance resistance of 30 Ω. Operating temperature range: -40°C to 85°C. Compact surface mount package: 6 mm × 3 mm × 1.5 mm.

Frequency ageing ±0.1% and stability ±0.3%. Tape & reel packaging for automated production. RoHS compliant manufacturing. Explore our Electronics Components categories for more Abracon resonators and related products at EnvMart.
