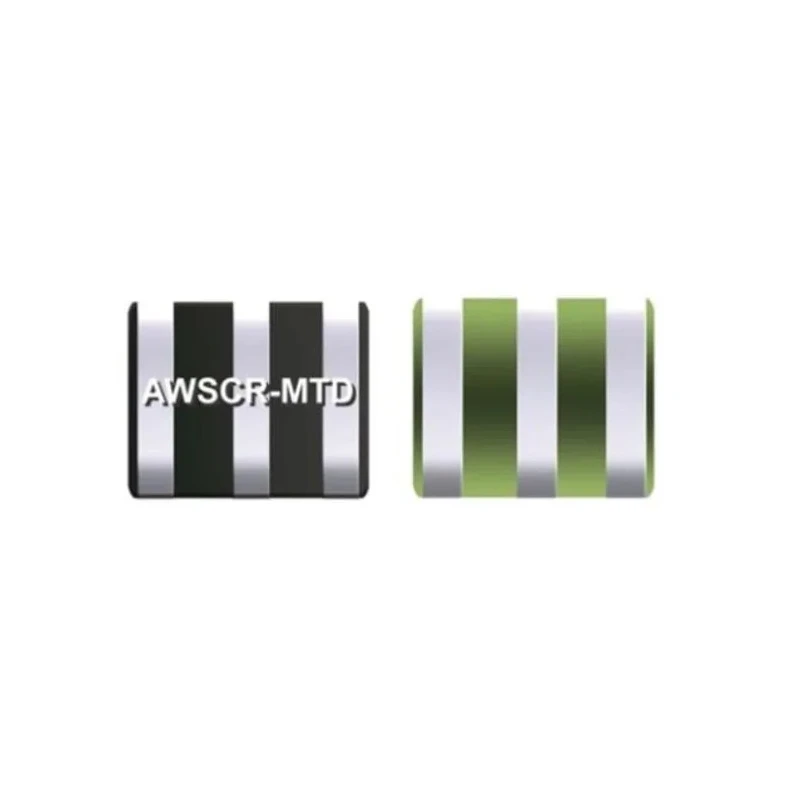

Abracon Ceramic Resonator 20 MHz 15 pF 3-Pin Surface Mount 1.2 mm x 4.1 mm x 4.7 mm AWSCR-20.00MTD-T

Free Delivery in India | Lowest Global Shipping Charges

Abracon Ceramic Resonator 20 MHz 15 pF 3-Pin Surface Mount 1.2 mm x 4.1 mm x 4.7 mm AWSCR-20.00MTD-T

Name: Abracon Ceramic Resonator 20 MHz 15 pF 3-Pin Surface Mount 1.2 mm x 4.1 mm x 4.7 mm AWSCR-20.00MTD-T
Brand: Abracon
SKU: 424251
Price: 0.44 USD
Availability: InStock



Category Ceramic Resonator Brand Abracon Condition New

Specifications

Country of Origin	India
Brand	Abracon
Height	1.2mm
Length	4.7mm
Model	AWSCR-20.00MTD-T
Packaging	Tape & Reel
Width	4.1mm
Mount Type	Surface
Series	AWSCR-MT
Maximum Operating Temperature	125°C
Package Type	Surface Mount
Minimum Operating Temperature	-55°C
Standards/Approvals	RoHS, ISO 9001, QS 9000 CERTIFIED
Pin Count	3
Load Capacitance	15pF
Resonance Frequency	20MHz

Key Features

This component features a 3-pin configuration for reliable mounting.
Standard dimensions of 1.2 mm height, 4.1 mm width, and 4.7 mm length ensure compact PCB integration.
Operating temperature range from -55°C to 125°C supports industrial and commercial use.
Low resonant impedance enhances frequency stability and circuit performance.
RoHS compliant and certified to ISO 9001 and QS 9000 standards for quality assurance.
Suitable for use in remote controls, microprocessor clocks, mobile phones, and consumer electronics.
Comes packaged in tape and reel format for automated manufacturing insertion.

Product Description

Abracon AWSCR-20.00MTD-T ceramic resonator delivers a resonance frequency of 20 MHz and a built-in load capacitance of 15 pF, optimized for surface mount technology (SMT) applications. The compact 3-pin device measures 1.2 mm in height, 4.1 mm in width, and 4.7 mm in length, making it ideal for integration on modern PCBs where space is limited.

This Ceramic Resonator operates over a temperature range from -55°C to 125°C, making it suitable for demanding industrial environments as well as general consumer electronic applications such as remote controls, microprocessor clock circuits, mobile phones, DVD and CD-ROM drives, and other electronic appliances.

The device features low resonant impedance and built-in load capacitors, ensuring accurate frequency control and reliable performance. It is RoHS and RoHS II compliant, conforming to environmental safety standards, and certified under ISO 9001 and QS 9000 quality systems, assuring consistent manufacturing quality.

The resonator is supplied in tape and reel packaging, supporting automated pick-and-place assembly processes to improve production efficiency and yield. 20 MHz resonance frequency for precise timing applications. Load capacitance of 15 pF with built-in capacitors.

Surface mount 3-pin package for ease of PCB assembly. Wide operating temperature range from -55°C to 125°C. Certified to ISO 9001 and QS 9000 standards and RoHS compliant. Ideal for industrial, consumer electronics, and embedded system applications.

Packaged in tape and reel format for automated manufacturing processes. Explore EnvMart’s Electronics Components section for further Abracon products and complementary components to optimize your electronic design projects.
