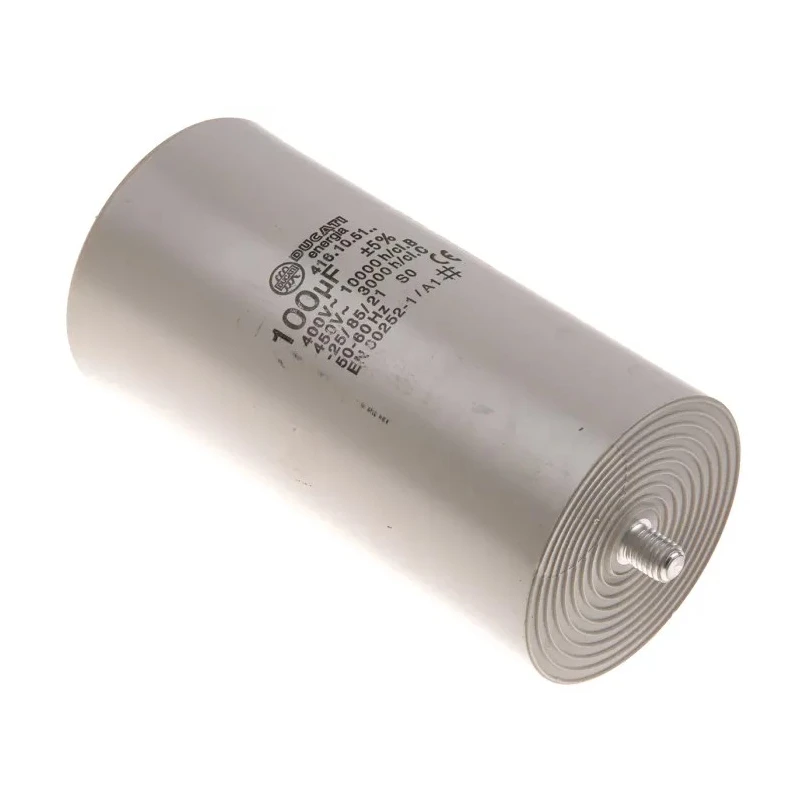

Ducati Energia 100µF 450V AC Power Electronic Capacitor, ±5% Tolerance, 2-Pin, Model 4.16.10.51.64

Ducati Energia model 4.16.10.51.64 power electronic capacitor is a high-quality 100μF capacitor rated for 450V AC, featuring ±5% tolerance, tailored for electric motor applications including start and run functions.

This capacitor utilizes a polyurethane film as its dielectric material, offering exceptional electrical performance and stability. The electrodes are formed by an extremely thin metal coating applied through vacuum evaporation, enhancing capacitor efficiency.

The robust construction includes a self-extinguishing plastic case measuring 60mm diameter and 120mm length, containing the capacitive element sealed with polyurethane resin to provide durability and safety. Its case classification meets safety protection standards P0 and P2.

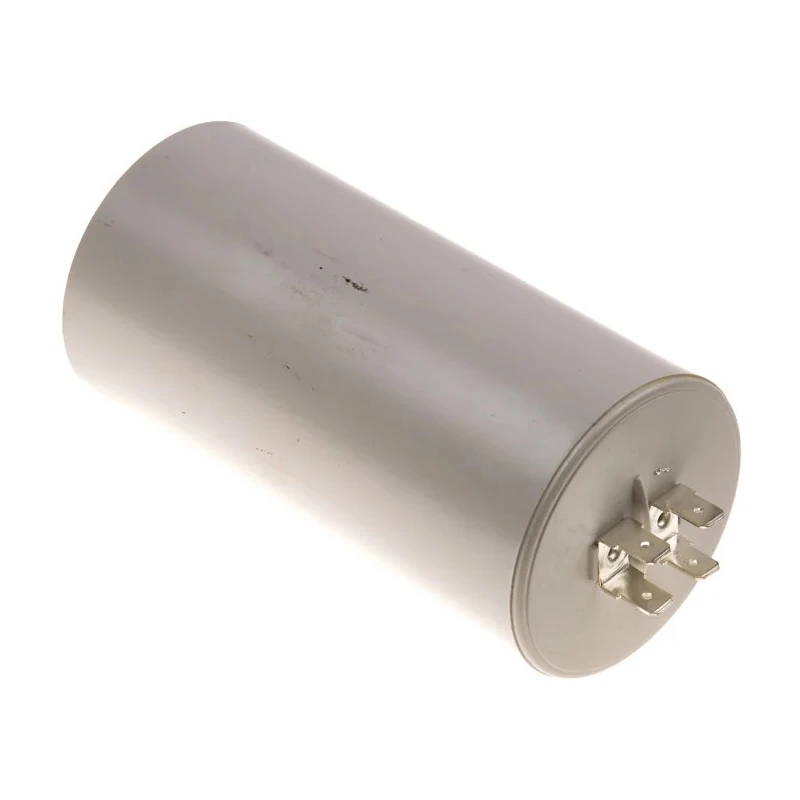

Designed with a non-inductive winding, this capacitor ensures minimal losses and includes self-healing properties to mitigate risks of short circuits. It's terminated with double 6.3mm FASTON push-in connectors for quick and secure installation, and mounted via an M8x10mm stud.

Operating temperature ranges from -25°C to a maximum of 85°C, making it suitable for diverse environments. It holds certifications such as CE and UL, confirming compliance with international safety and quality standards.

This capacitor is primarily used in electric motors for starting and running circuits, providing reliable performance in industrial, manufacturing, and automation settings. Polyurethane film dielectric enhances stability.

Compact size of 60mm x 120mm for easy integration. Self-healing and non-inductive winding to prevent faults. Compliant with CE and UL certifications for safety and quality. Designed specifically for electric motor applications.
