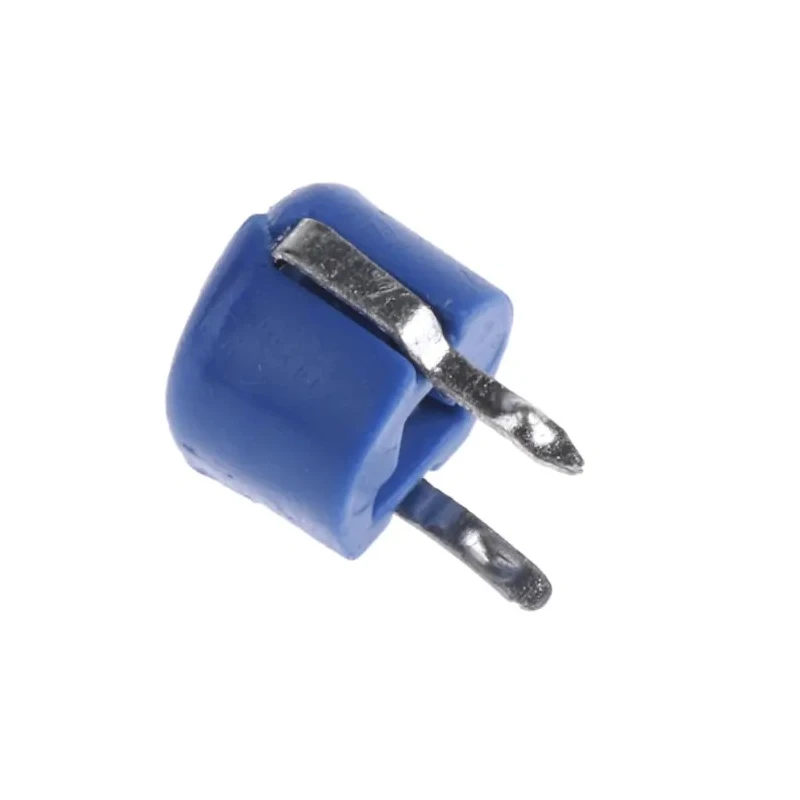

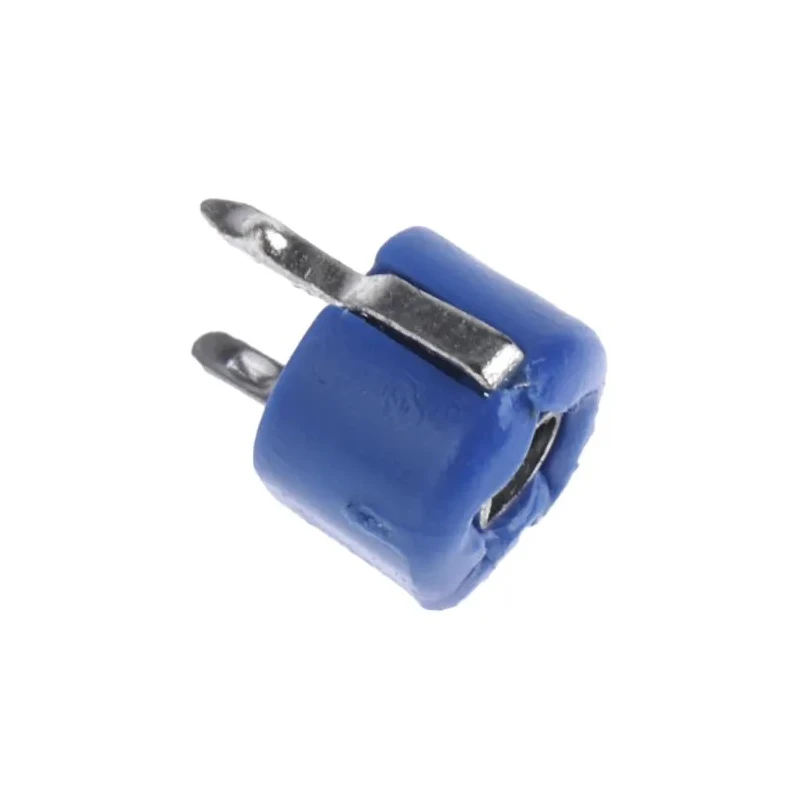

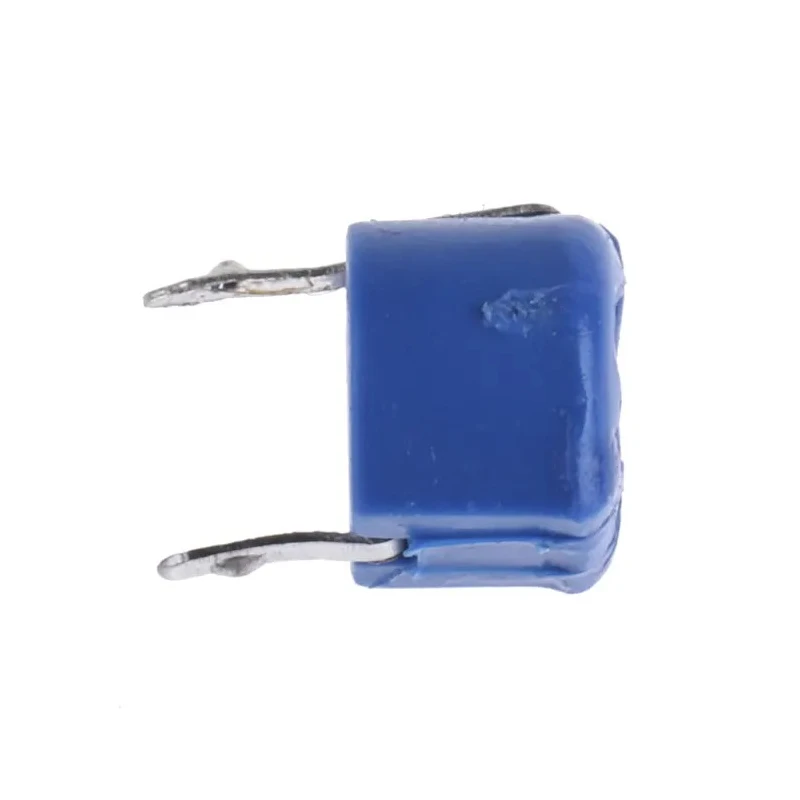

RS PRO Variable Trimmer Capacitor Ceramic 2.5 pF to 7 pF 100 V dc 175-3543

RS PRO 175-3543 Variable Trimmer Capacitor Ceramic 2.5 pF to 7 pF with 100 V dc rating is designed for precision capacitance tuning in electronic and communication circuits. Its robust ceramic dielectric allows stable capacitance under varying environmental conditions.

The trimmer capacitor features a through-hole mount type with a lead pitch of 5.3 mm and lead diameter of 0.2 mm, allowing straightforward PCB assembly. It measures 6 mm in length, 5 mm in width, and 6 mm in height, making it suitable for compact electronic equipment.

This component operates efficiently within a temperature range of -25°C to 85°C and supports voltage ratings of 100 V ac and 100 V dc, ensuring compatibility with a wide range of electronic apparatus.

Common industry applications include fine tuning capacitance in electric and electronic apparatus, as well as communication equipment where precise capacitance adjustment is critical.

Compact through-hole mount design with 5.3 mm lead pitch for easy PCB integration. Capacitance range from 2.5 pF minimum to 7 pF maximum allowing fine tuning. Ceramic dielectric ensures stable and reliable performance over operating temperatures.

Voltage ratings of 100 V dc and 100 V ac suit various electronic applications. Operates reliably between -25°C and 85°C for versatile environmental tolerance. Lead diameter of 0.2 mm to fit standard mounting holes on PCBs.

Dimensions: length 6 mm, width 5 mm, height 6 mm, providing a small footprint. Applications include electric and electronic apparatus and communication equipment. Manufactured in China with RS PRO quality standards.

This variable trimmer capacitor represents a reliable choice for engineers and technicians requiring precise capacitance adjustments in their electronic circuit designs. Browse the Electronics Components category on EnvMart to explore RS PRO and other premium capacitor solutions.
