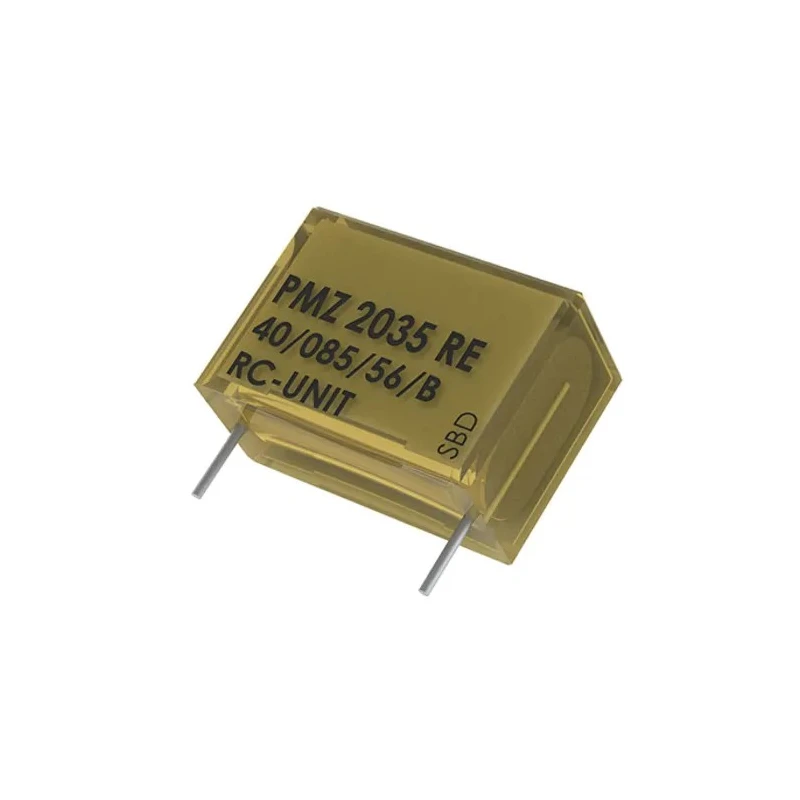

KEMET Paper Capacitor X1 Through Hole Mount 100nF 400V AC 1kV DC PMZ2035

The KEMET PMZ2035 paper capacitor is a premium X1 class film capacitor designed for critical industrial, electronic, and power applications requiring interference and transient suppression. It features a multilayer metallized paper construction impregnated in self-extinguishing material, enhancing durability and safety in electrical circuits.

This capacitor is rated for a capacitance of 100nF with a tolerance of ±10% and supports operational voltages up to 400V AC and 1kV DC, suited for worldwide applications in contact protection and suppression tasks. Its through-hole mounting with 25.4mm lead spacing and 2-pin configuration ensures secure PCB integration.

Engineered for operation in a wide temperature range of -40°C to +85°C, the PMZ2035 offers excellent self-healing properties and a high dielectric dV/dt capability for stable performance even under frequent voltage spikes. It is compliant with IEC 60286-2 and UL standards, signifying its adherence to stringent industrial safety regulations.

The capacitor dimensions of 30.5mm length, 19mm height, and 12.1mm depth allow for compact and efficient board design. It includes lead-free terminations promoting environmental compliance and features an internal resistance of 150 ohms with ±30% tolerance for reliable electrical characteristics.

Typical industrial uses include HVAC systems, manufacturing equipment, power supply units, and electronic instrumentation where noise filtering and transient voltage protection are critical. This capacitor contributes significantly to the longevity and reliability of electronic assemblies with its robust construction and stable electrical parameters.

The package includes a single KEMET PMZ2035 capacitor ready for integration and ensures compliance with global safety standards. This product is manufactured in Finland, guaranteeing quality and performance consistency.

Explore our extensive range of film Capacitors and electronic components designed to meet your industrial and commercial requirements at EnvMart. Constructed using multilayer metallized impregnated paper with self-extinguishing material.

Rated AC voltage of 400V and DC voltage of 1kV ensures reliable performance in AC/DC circuits. Lead pitch of 25.4mm and pin count of 2 facilitate easy through-hole mounting. Operating temperature range from -40°C to +85°C supports various environmental conditions.

Features excellent self-healing and high dV/dt capability for long life and stability. Compliant with IEC 60286-2 and UL standards for safety and quality. Typical use in contact protection, interference suppression, and transient voltage protection.

Dimensioned 30.5mm length, 19mm height, and 12.1mm depth for compact PCB layout. Finland origin with lead-free terminations and resistance of 150 ohms ±30%.
