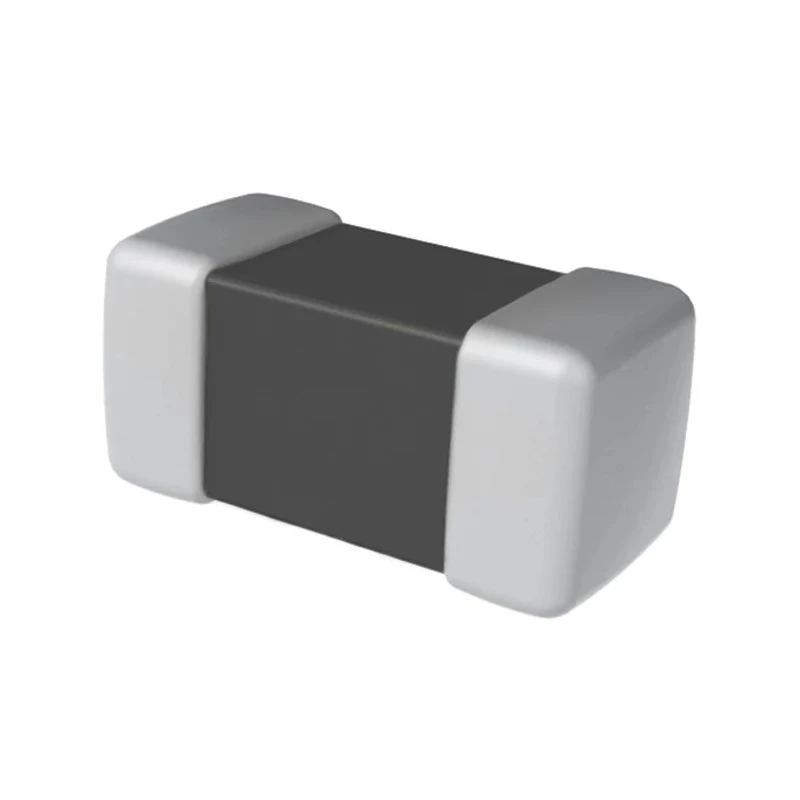

KEMET Ferrite Bead 0.033 mm Tape & Reel Chip Bead, 10.6 Ω Impedance at 25 MHz, 21 Ω at 100 MHz, 30.3 Ω at 300 Z0805C210BPWST

Free Delivery in India | Lowest Global Shipping Charges

KEMET Ferrite Bead 0.033 mm Tape & Reel Chip Bead, 10.6 Ω Impedance at 25 MHz, 21 Ω at 100 MHz, 30.3 Ω at 300 Z0805C210BPWST

Name: KEMET Ferrite Bead 0.033 mm Tape & Reel Chip Bead, 10.6 Ω Impedance at 25 MHz, 21 Ω at 100 MHz, 30.3 Ω at 300 Z0805C210BPWST
Brand: KEMET
SKU: 423066
Price: 20.22 USD
Availability: InStock



Category Electronic Components, Power & Connectors Brand KEMET Condition New

Specifications

Country of Origin	Philippines
Brand	KEMET
Material	Ferrite
Height	0.033mm
Length	0.079mm
Model	Z0805C210BPWST
Depth	0.049mm
Packaging	Tape & Reel
Current Rating	6A
Series	Z-PWZ
Maximum Operating Temperature	125°C
Package Type	Tape & Reel
Sub Type	Chip Bead
Minimum Operating Temperature	40°C
Standards/Approvals	RoHS and REACH compliant
Maximum DC Resistance	0.45Ω
Impedance at 100 MHz	21Ω
Impedance at 25 MHz	10.6Ω
Impedance at 300 MHz	30.3Ω
Impedance at 50 MHz	16.5Ω
Impedance at 1 GHz	38.5Ω

Key Features

The ferrite bead provides an impedance of 10.6 Ω at 25 MHz.
It offers 21 Ω impedance at 100 MHz and 30.3 Ω at 300 MHz.
Rated current is 6 A supporting high current applications.
Operating temperature range spans from −40°C to +125°C suitable for diverse environments.
Compact chip bead form factor with dimensions 0.079 mm length, 0.049 mm depth, and 0.033 mm height.
Constructed of ferrite material offering high reliability and noise suppression.
Compliant with RoHS and REACH standards ensuring environmental safety.
Designed for circuit applications requiring high impedance and large currents for power line noise suppression.

Product Description

KEMET Z0805C210BPWST ferrite bead is a precision passive component designed for EMI noise suppression in electronic circuits. It features a compact 0.033 mm chip size with tape & reel packaging for ease of automated assembly.

This chip bead exhibits a high impedance of 10.6 Ω at 25 MHz, increasing to 21 Ω at 100 MHz and 30.3 Ω at 300 MHz, efficiently suppressing high frequency noise in digital mobile equipment and power lines. The rated current of 6 A accommodates robust power applications.

Operating reliably in a wide temperature range from −40°C to +125°C, it ensures durability in industrial, automotive, and consumer electronics environments. The ferrite material construction ensures low stray capacitance due to its wire wound structure, enhancing waveform correction of digital signals.

The component is RoHS and REACH compliant, demonstrating safe environmental standards. The chip bead's dimensions of 0.079 mm length, 0.049 mm depth, and 0.033 mm height contribute to its suitability in compact PCB layouts.

Typical applications include digital mobile devices, power line noise filtering, and circuit boards demanding high impedance and high current noise suppression capabilities. The Z-PWZ series ferrite bead from KEMET provides reliable performance with high energy resistance.

The ferrite bead has high impedance to block unwanted noise across a wide frequency range. Capable of handling large current loads up to 6 A. Low DC resistance of 0.45 Ω minimizes power loss. Compact tape & reel packaging enables automated SMT assembly.

Wide operating temperature from −40°C to +125°C suits harsh environments. Ferrite material construction offers high reliability and noise suppression. Compliance with international environmental standards including RoHS and REACH.

Ideal for industrial, automotive, and consumer electronic applications requiring EMI filtering. Explore the full range of KEMET ferrite beads on EnvMart for your EMI filtering solutions in electronic components and connectors.
