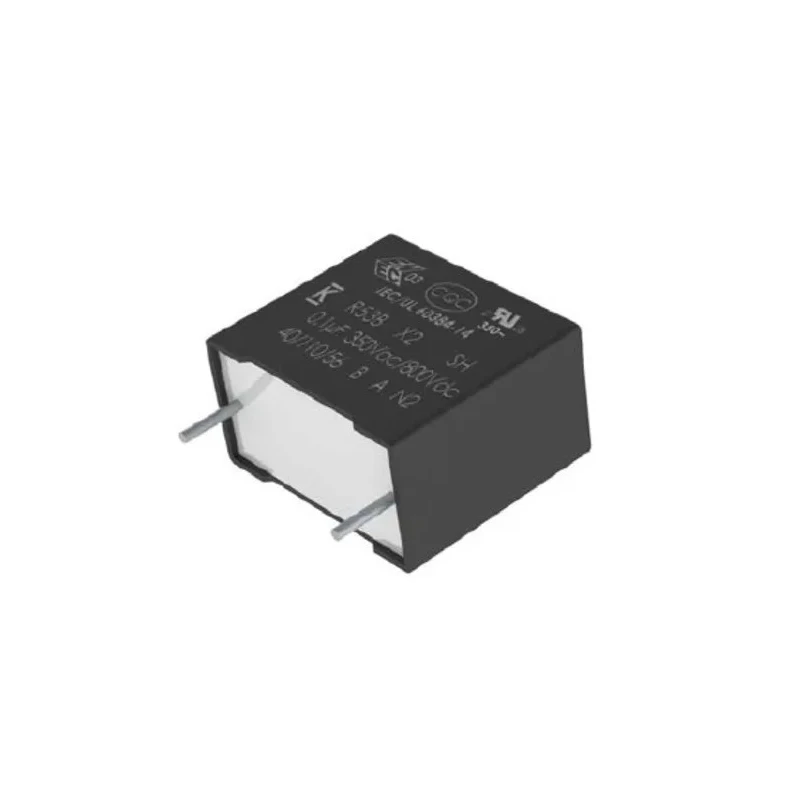

KEMET R53B Film Capacitor Through Hole 220nF ±10% 800V DC 350V AC R53BN32205000K
Specifications
| Country of Origin | China |
|---|---|
| Display | screen |
| Brand | KEMET |
| Height | 15mm |
| Length | 26.5mm |
| Model | R53BN32205000K |
| Packaging | Tape & Reel |
| Width | 6mm |
| Mount Type | Through Hole |
| Series | R53B |
| Maximum Operating Temperature | 125°C |
| Tolerance | ±10 % |
| Capacitance | 220nF |
| Minimum Operating Temperature | -40°C |
| Dissipation Factor | 0.5% |
| Standards/Approvals | IEC 60384-14 |
| Package/Case | Plastic |
| Pin Count | 2 |
| Rated AC Voltage | 350V ac |
| Rated DC Voltage | 800V dc |
| Lead Pitch | 22.5mm |
| Automotive Standard | AEC-Q200 |
Key Features
- Constructed with metallized polypropylene film for enhanced reliability.
- Encapsulated with self-extinguishing resin meeting UL 94 V-0 requirements.
- AEC-Q200 automotive qualified for harsh environmental conditions.
- Features 22.5mm lead pitch and plastic case for secure mounting.
- Operating temperature range from -40°C to 125°C for wide application scope.
- Meets IEC 60384-14 X2 class standards with low dissipation factor of 0.5%.
- Ideal for automotive, industrial, and electronic power applications.
- Supplied in tape and reel packaging for assembly line convenience.
Product Description
The KEMET R53BN32205000K is a through hole film capacitor designed for demanding electronic and automotive applications. This 220 nF capacitor offers ±10% capacitance tolerance, rated for 800V DC and 350V AC, ensuring robust performance under high voltage stresses. Constructed with metallized polypropylene film and encapsulated with a self-extinguishing resin that complies with UL 94 V-0, it provides excellent safety and reliability.
This capacitor is fully qualified to the automotive electronics council's AEC-Q200 standard, making it suitable for harsh environmental conditions encountered in automotive electronics. The 22.5 mm lead pitch and plastic case facilitate through-hole mounting on PCBs, with dimensions of 26.5 mm length, 6 mm width, and 15 mm height.
The component withstands operating temperatures from -40°C to +125°C, meeting IEC 60384-14 X2 class for safety standards and offers a low dissipation factor of 0.5%, minimizing energy loss during operation.
Produced in China, it is supplied in tape and reel packaging to ease automated assembly processes. Its self-healing properties and 100% factory screening at 1900V DC ensure durability and reliability. Typical applications include power electronics circuits, automotive control systems, and industrial electronic equipment.
Metallized polypropylene film construction with self-extinguishing resin encapsulation. AEC-Q200 automotive qualification for increased reliability in automotive environments. Rated for 800V DC and 350V AC voltages ensuring versatility in power applications.
Operating temperature range from -40°C to 125°C for robust performance in varied conditions. Complies with IEC 60384-14 X2 class safety standards. Low dissipation factor of 0.5% reduces thermal losses and enhances efficiency.
Plastic case and 22.5 mm lead pitch for convenient through-hole PCB mounting. Supplied in tape and reel packaging for manufacturing automation compatibility. Explore more high-quality Film Capacitors and other electronic components at EnvMart for industrial and automotive electronics projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a capacitance rating of 220nF with a tolerance of ±10%.
It is rated for 800V DC and 350V AC, making it suitable for high voltage applications.
The operating temperature range is from -40°C to +125°C, allowing for robust performance in various conditions.
This unit features a lead pitch of 22.5 mm, facilitating through-hole mounting on PCBs.
It is constructed with metallized polypropylene film and encapsulated with a self-extinguishing resin that meets UL 94 V-0 requirements.
Yes, it is AEC-Q200 automotive qualified, making it suitable for harsh environmental conditions in automotive electronics.
It complies with IEC 60384-14 X2 class standards, ensuring safety and performance in electrical applications.
The dissipation factor is 0.5%, which helps minimize energy loss during operation.
The dimensions are 26.5 mm in length, 6 mm in width, and 15 mm in height.
It is supplied in tape and reel packaging, which is convenient for automated assembly processes.
This model uses through-hole mounting, suitable for various PCB applications.
It is suitable for automotive, industrial, and electronic power applications due to its robust specifications.
