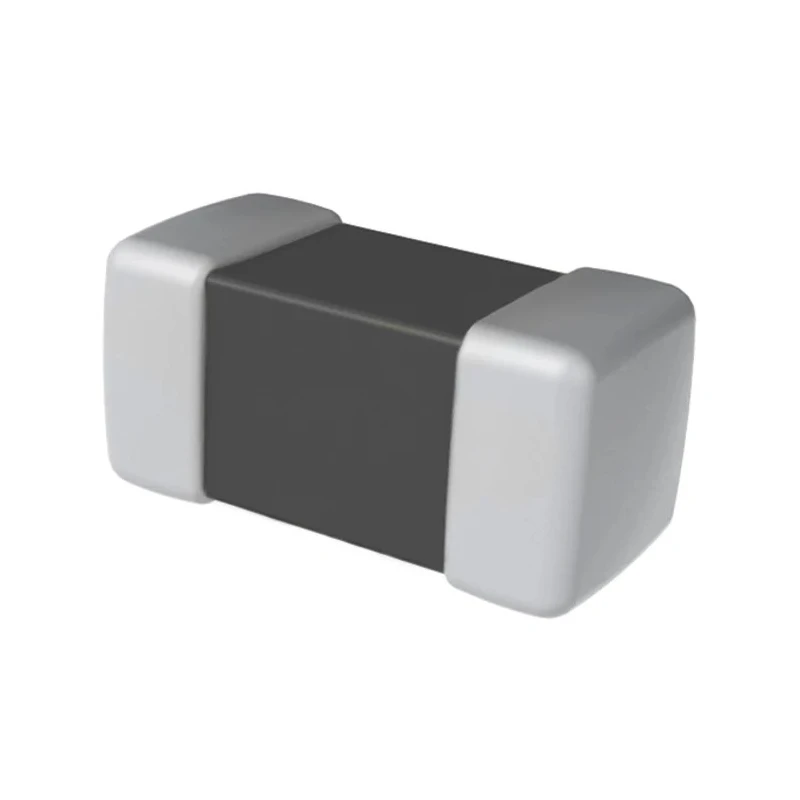

KEMET Ferrite Bead Chip Bead 0.126 mm Tape & Reel, Impedance 329 Ω at 25 MHz, 680 Ω at 100 MHz Z1812C681BPWZT

KEMET Z1812C681BPWZT Ferrite Bead Chip Bead 0.126 mm Tape & Reel is engineered for circuit designs demanding high impedance and large current capacity to suppress radiated noise on power lines. With a compact footprint, this chip bead enables waveform correction of digital signals and high frequency noise suppression, making it suitable for various digital mobile devices requiring low power consumption.

The product provides impedance values of 329 Ω at 25 MHz, 521.3 Ω at 50 MHz, 680 Ω at 100 MHz, 746.8 Ω at 300 MHz, and 290 Ω at 1 GHz, ensuring effective EMI filtering across a broad frequency range. It supports a high current rating of 4A and sustains operation in temperatures ranging from -40°C to 125°C, making it reliable under harsh conditions.

The bead's low DC resistance of 0.45 Ω minimizes power loss. Constructed from ferrite material, the bead also features low stray capacitance due to its wire wound structure. It complies with RoHS and REACH standards, underscoring its environmental compliance.

The product is delivered on tape and reel packaging, supporting high-throughput automated manufacturing processes. Typical applications include industrial electronics, digital mobile equipment, and other consumer electronics needing effective EMI filtering and signal integrity.

High impedance across multiple frequencies ensures superior EMI suppression. Compact chip size facilitates integration into densely populated PCBs. Wide operating temperature range suitable for various environments. Tape & reel packaging optimizes assembly efficiency.

Conforms to environmental standards RoHS and REACH. Explore a wide range of high-quality Ferrite Beads and EMI filtering components on EnvMart for your electronic component needs.
