| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Material | Ferrite |
| Height | 0.85mm |
| Length | 2mm |
| Model | ACML-0805-601-T |
| Depth | 1.25mm |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Current Rating | 500mA |
| Series | ACML-0805 |
| Maximum Operating Temperature | 125°C |
| Package Type | 0805 |
| Sub Type | Chip Bead |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS/RoHS II |
| Maximum DC Resistance | 0.35Ω |
| Impedance at 25 MHz | 600Ω |

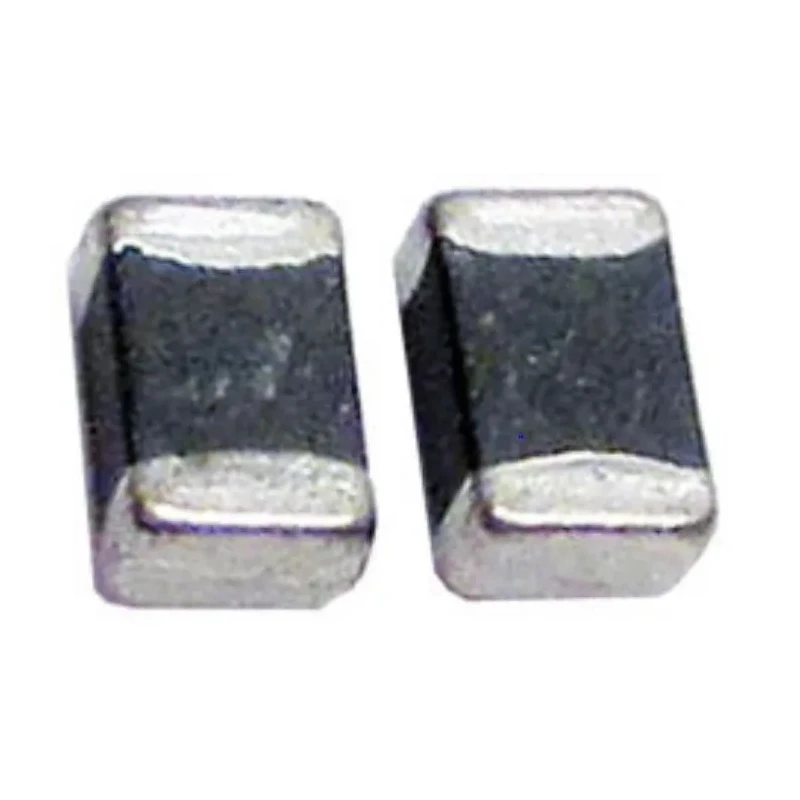

The Abracon ACML-0805-601-T is a high-quality multilayer ferrite bead designed for surface mounting on PCBs. Featuring a compact 0805 package with a dimension of 2 mm length, 0.85 mm height, and 1.25 mm depth, this chip bead provides a precise impedance of 600 Ω at 25 MHz, ideal for high-frequency EMI noise suppression.
Constructed from ferrite material with nickel barrier terminations, the bead offers exceptional solder heat resistance and reliability during RoHS compliant reflow soldering processes. Rated for a maximum current of 500 mA, it ensures efficient filtering without significant power loss, supported by a low DC resistance of 0.35 Ω.
The operating temperature range of -55°C to 125°C makes this ferrite bead suitable for various demanding industrial and commercial applications, including video and audio equipment, communication devices, office automation equipment, and automotive electrical systems.
Compact 0805 surface mount chip bead construction optimized for PCB assembly. 600 Ω impedance at 25 MHz for effective EMI filtering. Rated current of 500 mA for reliable performance and thermal management. Wide operating temperature range ensures durability in harsh conditions.
Multilayer monolithic construction provides high reliability and consistent performance. Nickel barrier terminations enhance solder heat resistance for manufacturing robustness. Low maximum DC resistance minimizes power inefficiency within circuits.
RoHS and RoHS II compliant, supporting environmentally friendly production standards. Applications in industrial, automotive, communication, and consumer electronics sectors.
This Ferrite Bead is supplied in tape and reel packaging, facilitating automated insertion into manufacturing processes to improve production efficiency. Ideal for engineers and manufacturers seeking reliable EMI filter components that comply with industry standards.
