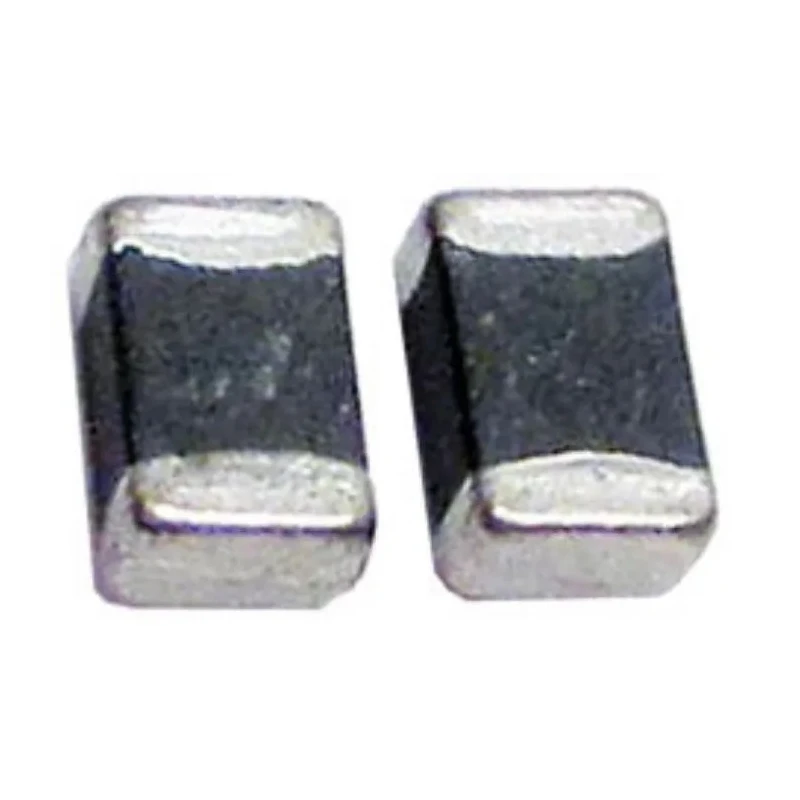

Abracon Ferrite Bead 0.85 mm Height Surface Mount 0805 Chip Bead 150 Ω Impedance at 25 MHz ACML-0805-151-T

Abracon ACML-0805-151-T is a multilayer ferrite bead designed for surface mount on PCBs with compact 0805 package dimensions. It has a height of 0.85 mm, a length of 2 mm, and a depth of 1.25 mm, making it well suited for space-constrained electronic assemblies.

This ferrite bead offers a 150 Ω impedance at 25 MHz, effectively suppressing EMI and noise in sensitive electronic circuits. It supports a maximum current of 800 mA and exhibits a maximum DC resistance of just 0.15 Ω, ensuring minimal power loss during operation.

The device features nickel barrier terminations that provide excellent heat resistance suitable for both flow soldering and lead-free RoHS reflow soldering processes. It operates reliably over a wide temperature range from -55°C to 125°C, making it suitable for automotive and industrial use.

This component complies with RoHS and RoHS II environmental standards, containing no lead and meeting current regulatory requirements.

The Abracon ACML-0805-151-T ferrite bead is ideal for a broad range of applications, including video equipment, audio electronics, automotive electrical systems, and communication devices, helping to improve signal integrity and electromagnetic compatibility.

Multilayer monolithic construction ensures high reliability and performance. Nickel barrier terminations provide excellent solder heat resistance. Suitable for flow and RoHS-compliant reflow soldering processes. Operating temperature range from -55°C to 125°C for diverse environments.

Current rating of 800 mA supports moderate power electronic applications. Compact 2 mm length and 1.25 mm depth surface mount package minimizes PCB space usage. RoHS and RoHS II compliant, ensuring environmental safety and regulatory adherence.

Designed for applications in video, audio, automotive electrical, and communication equipment. Explore EnvMart for more quality electronics components like Ferrite Beads, EMI filters, and surface mount devices from leading brands including Abracon.
