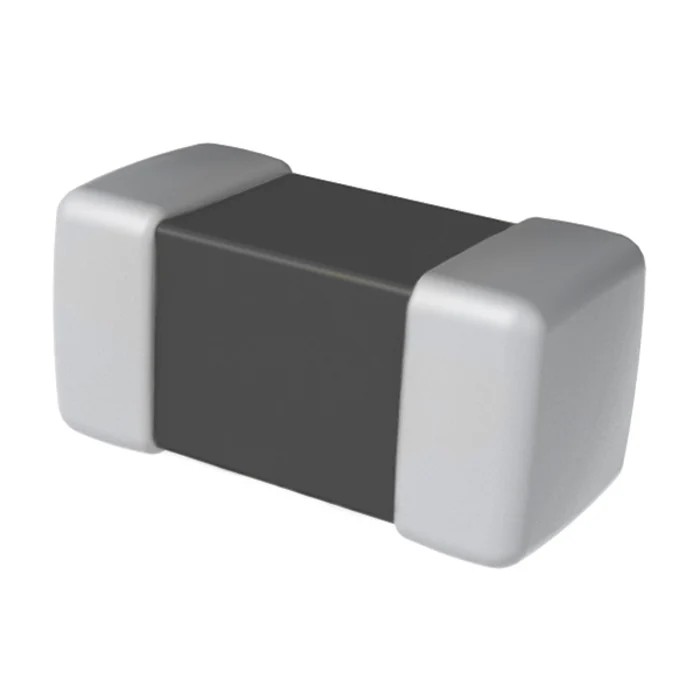

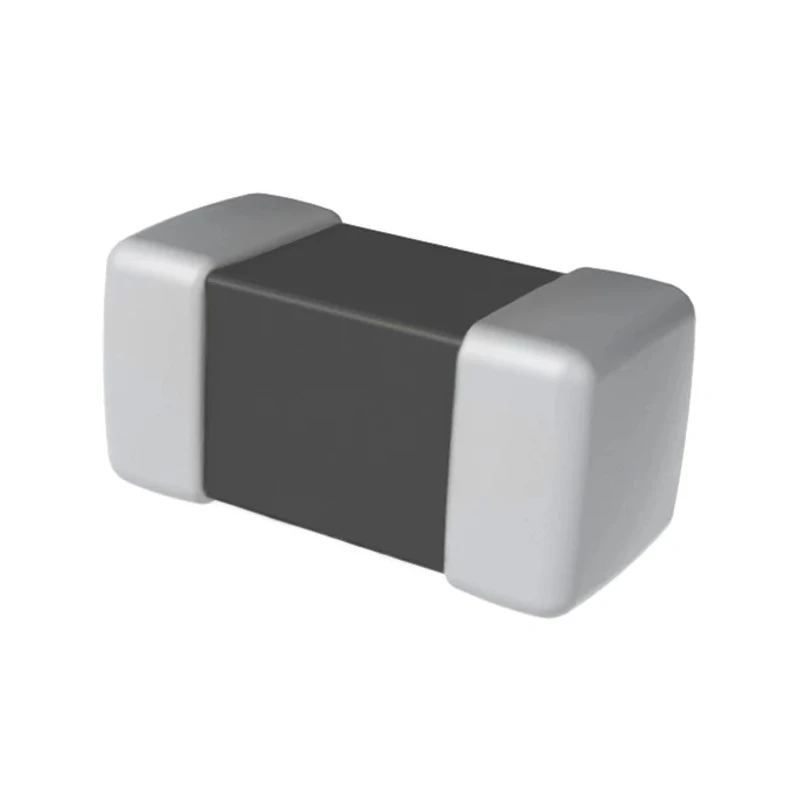

KEMET Ferrite Bead 0.063 mm Tape & Reel Chip Bead with 19.5 Ω Impedance at 25 MHz and 38 Ω Impedance at 100 Z1206C380BPWST

KEMET Z1206C380BPWST ferrite bead tape & reel chip bead is designed for power line noise suppression in electronic components and passive EMI filters. The ferrite material chip bead provides waveform correction of digital signals, offering high impedance values of 19.5 ohms at 25 MHz, 38 ohms at 100 MHz, and 54.1 ohms at 300 MHz to effectively attenuate high frequency noise.

With a compact size of 0.126 mm length and 0.063 mm height and depth, this chip bead is suitable for integration into densely populated circuit boards. It supports a maximum current rating of 6A and operates reliably across a temperature range of -40 to 125°C, making it ideal for industrial, electronic manufacturing, automotive electronics, and telecommunications applications.

The product’s wire wound structure ensures low stray capacitance and high energy resistance for durable and stable performance. This unit is RoHS and REACH compliant and is part of the Z-PWZ series, supplied in tape and reel format for ease of automated placement in PCB assembly lines.

This ferrite bead chip size supports high frequency noise filtering in mobile and digital equipment. Large current withstand capability of up to 6 amps ensures application versatility. Reliable operation at extended temperature ranges fits diverse industrial environments.

High impedance values across multiple frequencies facilitate effective EMI noise suppression. Low maximum DC resistance of 0.45 ohms maintains signal integrity. Tape & reel packaging format supports efficient machine integration and production scalability.

It is an ideal component for engineers designing circuits requiring effective power line noise filtering and high reliability. Explore the Electronics & Electricals category at EnvMart for additional KEMET Ferrite Beads and EMI filtering components to support advanced electronic designs.
